Engine Front Cover, Gasket And Engine Oil Filler

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT274491	1	Hand Operated Valve	-
2	AT274733	1	O-Ring	-
3	AT275438	1	Gasket	-
4	AT275352	1	Spacer	-
5	19M9232	1	Screw	M8 X 50, SUB FOR AT274029
6	19M7604	1	Screw	M8 X 80
7	PMH3803	1	Fitting	SUB FOR AT274719
7	XED10X1VITX	1	Seal	-
8	AT314883	1	Self-Locking Screw	-
9	-	1	Part 10	ORDER AT275912, AT275913 NLA
10	19M7561	1	Screw	M8 X 30
11	19M8926	2	Screw	M8 X 65, SUB FOR AT274135
12	AT274261	12	Socket Head Screw	-
13	AT275912	1	Housing	-
13	AT301920	1	Housing	-
14	AT275911	1	Fitting	-
15	AT274285	1	Seal	-
16	AT275440	1	Bolt	-
17	AT274045	1	Screw	-
18	AT275311	2	Bushing	-
20	AT275315	1	Gasket	-
21	AT275313	1	Cover	-
22	AT275429	1	Filler Neck	-
22	AT276403	1	Filler Neck	-
23	AT275447	1	Gasket	-
24	12M5442	2	Washer	8.400 X 15 X 0.800 mm
25	19M7881	1	Screw	M8 X 20, SUB FOR 19M7139
25	19M7513	1	Cap Screw	M8 X 30, SUB FOR 19M7288
25	19M7407	1	Cap Screw	M8 X 25
26	AT276081	1	O-Ring	-
27	AT276402	1	Cover	-
28	12M5442	2	Washer	8.400 X 15 X 0.800 mm
29	19M7881	2	Screw	M8 X 20

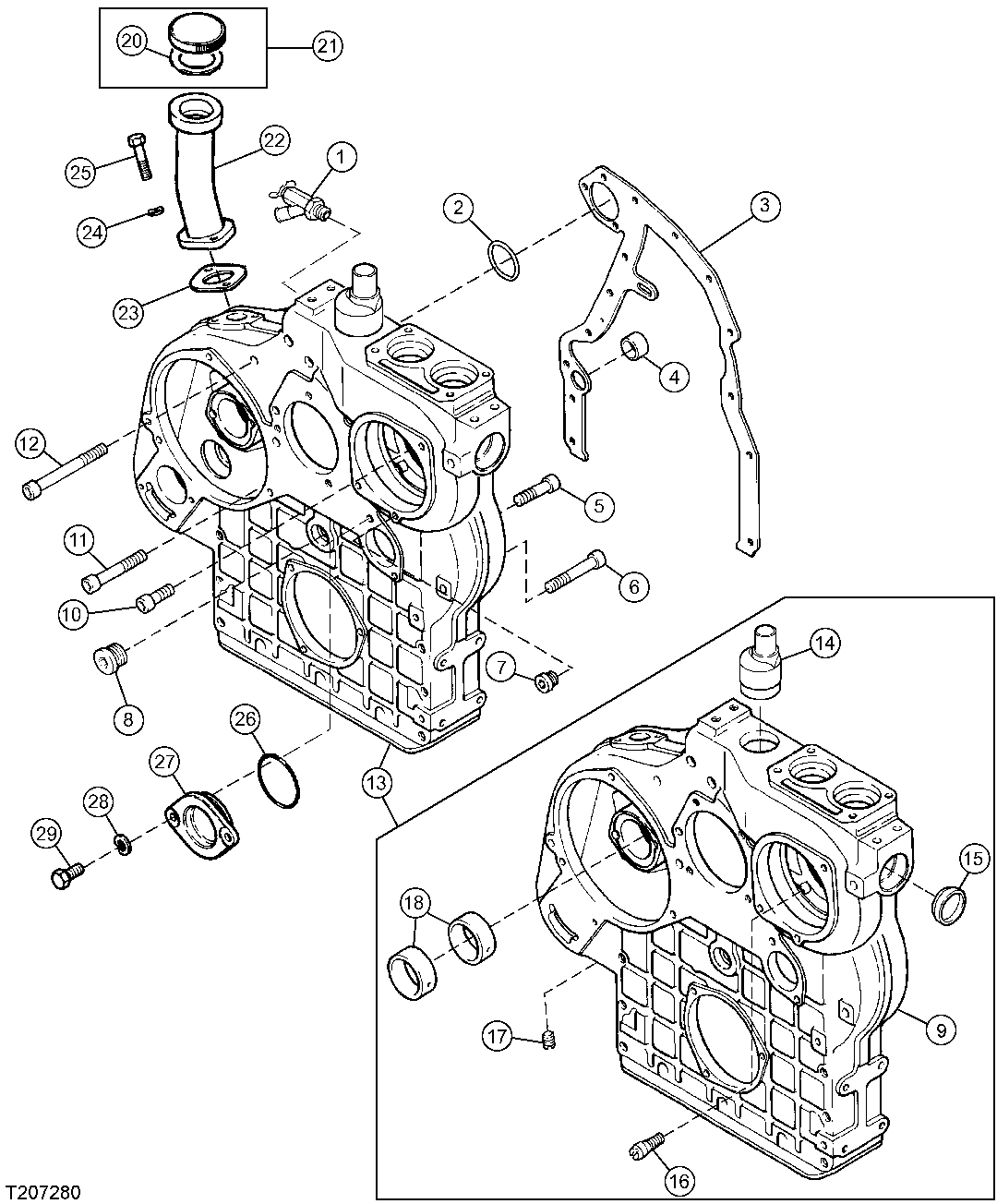

Engine Front Cover, Gasket And Engine Oil Filler
