Engine Cooling Fan, Fan Drive And Guard (S.N. 006200-) (006200 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT318426	1	Hydraulic Motor	ORDER LW93506223
2	AT318428	1	Support	ORDER LW93506223
3	LW7622255	1	Seal	-
3	AT318432	1	Sealing Ring	-
4	AT318433	2	Snap Ring	-
5	AT318434	2	Washer	-
6	AT318435	1	Ball Bearing	-
7	AT189567	2	O-Ring	-
9	AT318436	1	Sealing Ring	ORDER LW93506223
10	AT318437	1	Spring Washer	-
12	LW7029307	1	Lock Washer	-
13	AT318439	1	Nut	-
16	21M7095	4	SCREW	M8 X 16, SUB FOR AT318430
17	AT318431	1	Coupling	-
18	AT189568	1	Seal Kit	-
19	AT263508	4	Bolt	SUB FOR AT318429
55	AT266068	2	Guard	-
55	AT307689	1	Spacer	ALSO ORDER 19M8008 AND 24M7095 NOT ILLUSTRATED USED TO ALLOW MORE ROOM BETWEEN FAN AND GUARD
56	19M7407	12	Cap Screw	M8 X 25
57	24H1621	12	Washer	11/32" X 1" X 0.220"
58	AT266069	1	Plate	-
59	19M8008	6	Cap Screw	M8 X 35, SUB FOR 19M7298USED WITH EXTRA SPACER TO ALLOW MORE ROOM BETWEEN FAN AND GUARD
59	19M7881	5	Screw	M8 X 20, SUB FOR 19M7139
60	LW10289803	5	Washer	This Application, SUB FOR 24M7055
60	24M7095	6	Washer	8.400 X 15 X 1.600 mm, SUB FOR AT278590 USED WITH EXTRA SPACER TO ALLOW MORE ROOM BETWEEN FAN AND GUARD
65	LW93506223	1	Motor	SUB FOR AT266070
66	19M7407	10	Cap Screw	M8 X 25, SUB FOR 19M7163
67	LW10289803	4	Washer	This Application, SUB FOR 24M7055
68	AT218878	1	Flange Fitting	USE WITH AT266070
68	LW10428673	1	Flange Fitting	USE WITH LW93506223
69	AT274207	4	Socket Head Screw	-
70	LW10289802	4	Washer	This Application, SUB FOR 24M7088
71	AT250327	1	O-Ring	This Application, SUB FOR AT261788
72	AT218888	1	Flange Fitting	SUB FOR AT266071
73	AT274207	2	Socket Head Screw	-
74	AT250296	2	Screw	-
75	AT250338	1	O-Ring	-
76	XGE06LMEDCF	1	Fitting	USE WITH AT266070, SUB FOR AT218838
76	LW10000277	1	Fitting	USE WITH LW93506223
80	AT266072	1	Flange	-
80	AT309012	1	Flange	-
81	AT274693	1	Fan	-
82	AT278031	1	Ring	-
83	19M7407	6	Cap Screw	M8 X 25, SUB FOR 19M7163

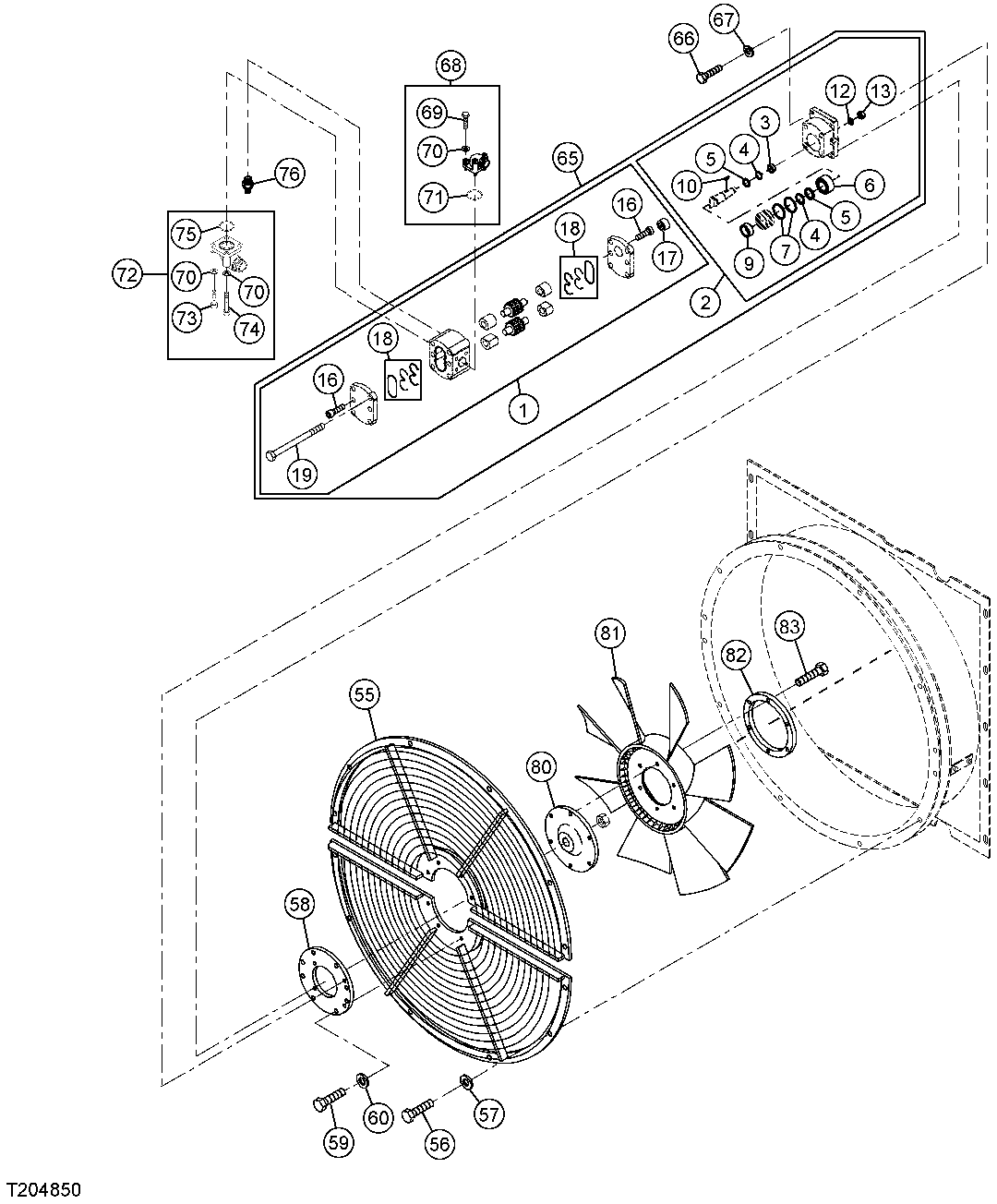

Engine Cooling Fan, Fan Drive And Guard (S.N. 006200-) (006200 - )
