Engine Cooling Fan, Fan Drive And Guard ( - 006199)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT275419	1	Shaft	Fan Drive Shaft
2	AT274048	1	Ball Bearing	-
3	AT274108	1	Locking Collar	40 X 1, 75
4	AT275414	1	Housing	-
5	AT274714	1	Seal	-
6	AT274290	1	Ball Bearing	-
7	40M1873	1	Snap Ring	SUB FOR AT218453
8	AT275415	1	Gear	-
9	AT275394	1	Washer	-
10	19M8348	1	Cap Screw	M12 X 65
11	AT275413	1	Viscous Fan Drive	-
12	AT274291	1	Stud	-
13	AT274696	1	O-Ring	-
14	AT274011	3	Bolt	-
16	12M1645	4	Washer	10.500 X 21 X 1 mm, SUB FOR AT274155
17	14M7274	4	Nut	M10
20	24M7055	6	Washer	8.400 X 16 X 1.600 mm
21	19M9738	6	Screw	M8 X 25, SUB FOR AT274141
21	19M7513	6	Cap Screw	M8 X 30, SUB FOR 19M7288, USE WITH EXTRA SPACER TO ALLOW MORE ROOM BETWEEN FAN AND GUARD
22	AT275282	2	Guard	-
22	AT307078	1	Spacer	Not Illustrated, ALSO ORDER (6) 19M7513, USED TO ALLOW MORE ROOM BETWEEN FAN AND GUARD
22	AT307079	1	Spacer	Not Illustrated, ALSO ORDER (6) 19M7513, USED TO ALLOW MORE ROOM BETWEEN FAN AND GUARD
23	19M7407	12	Cap Screw	M8 X 25, SUB FOR 19M7163
24	24H1621	8	Washer	11/32" X 1" X 0.220"
25	AT274693	1	Fan	-
26	AT275405	1	Ring	-

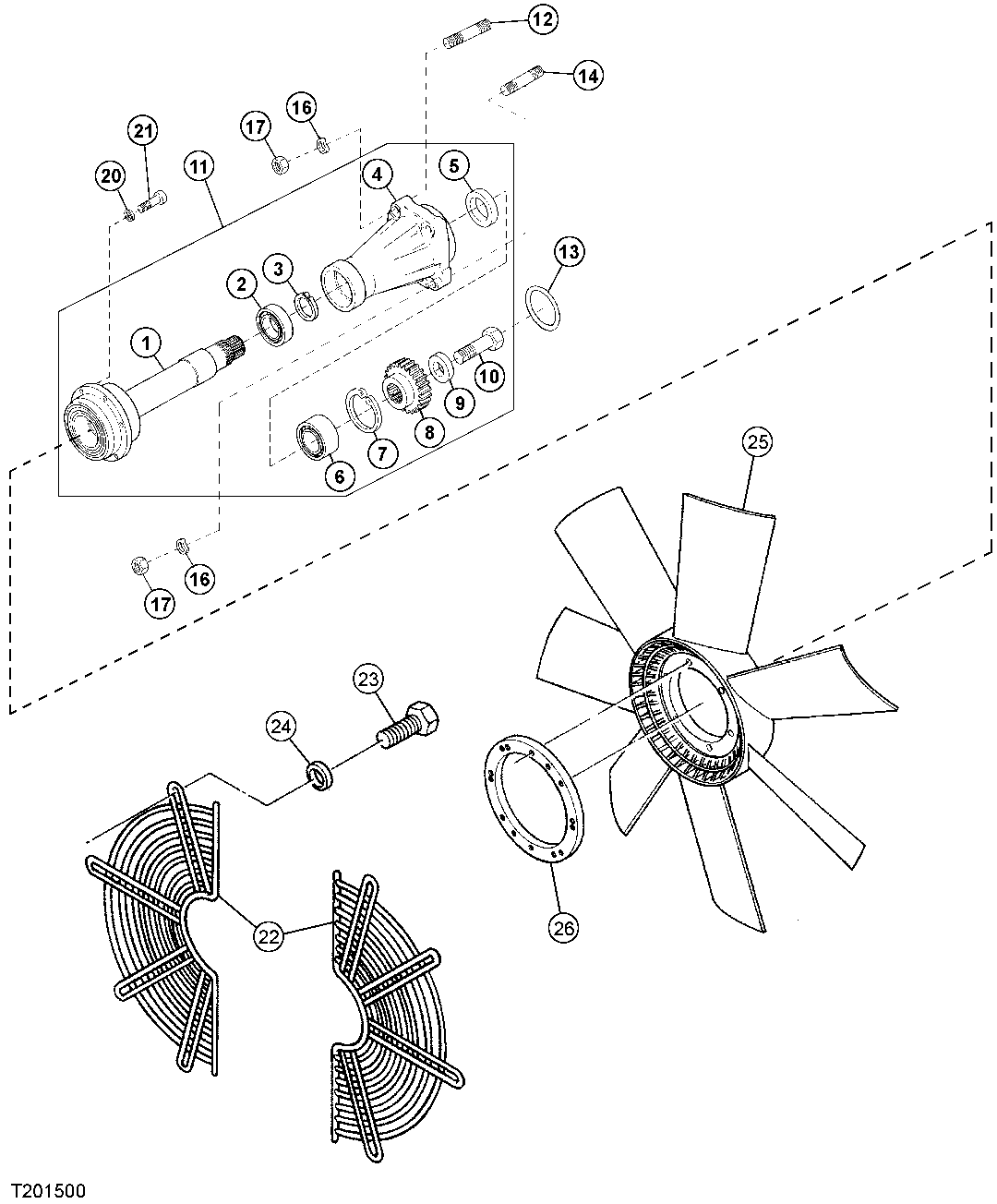

Engine Cooling Fan, Fan Drive And Guard ( - 006199)

Нет текстового описания
