Открытый узел

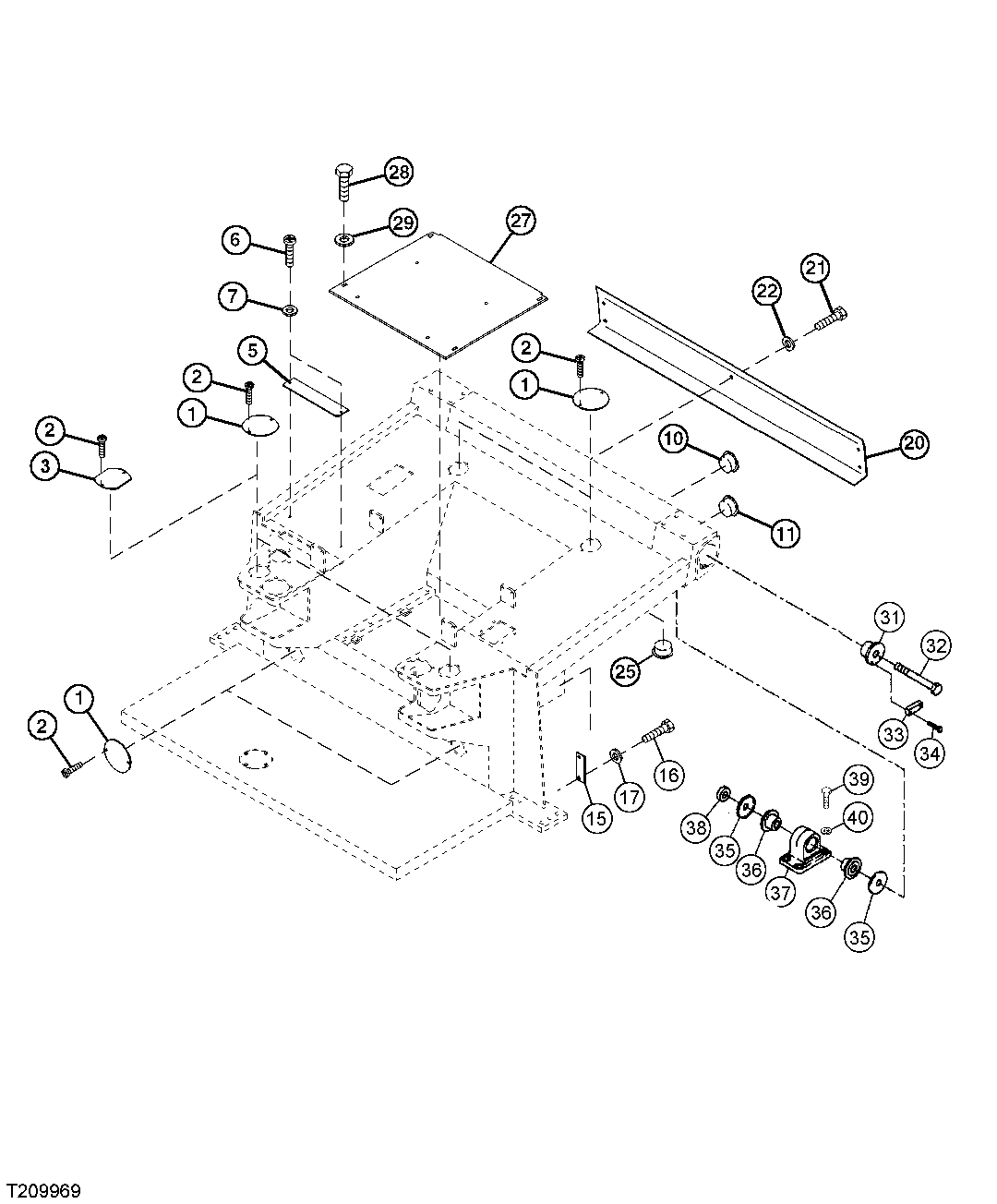

Cab Platform Plates And Lift Bearings

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT278485	4	Plate	-
1	AT278485	6	Plate	-
2	LW409606001	12	Screw	(SUB FOR AT276741)
3	AT266194	2	Cover	-
5	AT278557	1	Plate	-
6	LW408402101	2	Screw	This Application, (SUB FOR 21M7265 )
7	24M7027	2	Washer	5.300 X 10 X 1 mm
10	AT274653	1	Plug	-
11	AT274673	1	Plug	-
15	AT278484	1	Plate	-
16	19M7372	2	Cap Screw	M5 X 16
17	24M7027	2	Washer	5.300 X 10 X 1 mm
20	AT278576	1	Cover	-
21	19M7932	5	Cap Screw	M8 X 16
22	LW10289803	5	Washer	This Application, (SUB FOR 24M7055 )
25	AT277077	2	Plug	-
27	AT275492	1	Plate	Seal Plate
27	AT303972	1	Plate	Seal Plate Not Illustrated
28	19M7938	4	Cap Screw	M10 X 20, (SUB FOR 19M7166)
28	19M7938	4	Cap Screw	M10 X 20
29	24M7213	4	Washer	10.500 X 25 X 4 mm
31	AT275252	2	Bushing	-
32	19M8033	2	Cap Screw	M24 X 200
33	AT275253	2	Plate	-
34	AT274256	4	Screw	-
35	AT275254	4	Cover	-
36	AT301691	4	Bushing	(SUB FOR AT275247)
37	AT275249	2	Bearing With Housing	-
38	AT275568	2	Washer	-
39	19M7489	4	Cap Screw	M16 X 45
40	T116461	4	Washer	(SUB FOR 24M7280)

Cab Platform Plates And Lift Bearings

Нет текстового описания
