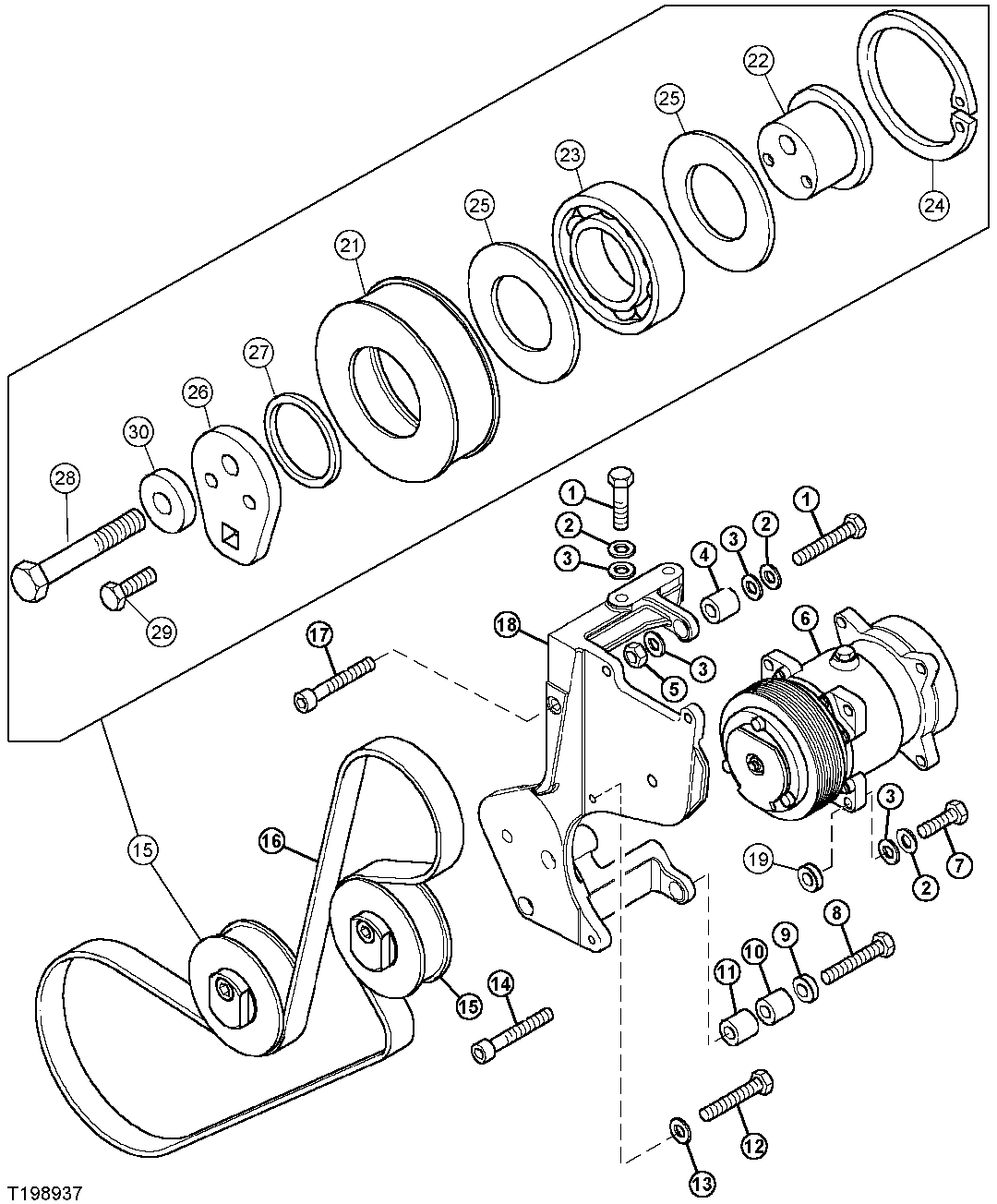

Air Conditioning Compressor Complete Assembly (S.N. - 006199) ( - 006199)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M7170	3	Cap Screw	M10 X 50, SUB FOR AT274009
2	12M1645	5	Washer	10.500 X 21 X 1 mm
3	24M7028	6	Washer	10.500 X 20 X 2 mm
4	AT275449	1	Bushing	-
5	14M7274	1	Nut	M10
6	LW10116767	1	Compressor	-
6	LW10040064	1	Cover	Not Illustrated Includes Hardware, ESN 2002011730-
6	LW10115770	1	Coupling	Not Illustrated, ESN 2002011730-, SUB FOR AT265359
6	SE502287	1	Compressor	REMAN FOR LW10116767
6	-	1	Part 11	ORDER LW10116767 AT266646 NLA (ESN 2002011730-)
6	LW10040064	1	Cover	Not Illustrated Includes Hardware, ESN -2002011729
6	LW10115770	1	Coupling	Not Illustrated, ESN -2002011729, SUB FOR AT265359
6	SE502287	1	Compressor	REMAN FOR LW10116767
6	LW10116767	1	Compressor	-
6	-	1	Part 6	ORDER LW10116767 AT196780 NLA (ESN -2002011729)
7	19M7662	2	Cap Screw	M10 X 30
8	19M8262	1	Cap Screw	M8 X 130
9	AT300506	1	Spacer	SUB FOR AT275297
10	AT275301	1	Bushing	-
11	AT275445	1	Spacer	-
12	19M7663	1	Cap Screw	M8 X 70
13	24M7055	1	Washer	8.400 X 16 X 1.600 mm
14	19M8412	2	Screw	M10 X 55
15	AT279816	2	Belt Tensioner	SUB FOR AT275951
16	T178537	1	V-Belt	SUB FOR AT274296
17	19M8881	1	Screw	M10 X 30, SUB FOR AT274252
18	AT275938	1	Bracket	-
19	24M7106	1	Washer	10 X 18 X 2.500 mm, SUB FOR AT300507
21	AT275947	1	Pulley	-
22	AT275948	1	Hub	-
23	AT274297	1	Ball Bearing	-
24	40M1873	1	Snap Ring	SUB FOR AT218453
25	AT274747	2	Ring	-
26	AT275949	1	Spacer	-
27	AT275950	1	Ring	-
28	19M7364	1	Cap Screw	M12 X 80
29	19M7407	2	Cap Screw	M8 X 25, SUB FOR 19M7163
30	AT275394	1	Washer	-

Air Conditioning Compressor Complete Assembly (S.N. - 006199) ( - 006199)
