Air Conditioning Compressor (Complete Assembly) (006200 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT312043	1	Bracket	-
1	AT301880	1	Bracket	-
2	AT266646	1	Compressor	NLA, ORDER LW10116767 , ESN -2006010537
2	LW10115770	1	Coupling	Not Illustrated, ESN -2006010537, SUB FOR AT265359
2	LW10040064	1	Cover	Includes Hardware Not Illustrated, ESN -2006010537
2	LW10116767	1	Compressor	INCLUDES LW10115770 AND LW10040064, ESN 2006010538-
2	SE502287	1	Compressor	REMAN FOR LW10116767
2	LW10115770	1	Coupling	Not Illustrated, ESN -2006010537
2	LW10040064	1	Cover	Includes Hardware Not Illustrated, ESN -2006010537
3	AT301884	1	Belt Tensioner	-
3	AT311724	1	Cover	Not Illustrated
3	AT312044	1	Pulley	Not Illustrated
5	19M7663	1	Cap Screw	M8 X 70
6	AT301895	1	Cap Screw	-
7	24M7466	2	Washer	10.500 X 20 X 2 mm, SUB FOR AT301897 AND LW10289795
8	19M7662	2	Cap Screw	M10 X 30
9	14M7274	1	Nut	M10
10	AT275301	1	Bushing	-
11	AT275445	1	Spacer	-
12	19M7170	2	Cap Screw	M10 X 50, SUB FOR AT274009 AND AT301898
13	AT275449	1	Bushing	-
14	19M7479	1	Cap Screw	M10 X 80
15	19M8412	2	Screw	M10 X 55
16	12M1645	7	Washer	10.500 X 21 X 1 mm
17	AT301899	2	Spacer	-
18	AT276447	1	Spacer	ESN -2003011387
18	24H1621	1	Washer	11/32" X 1" X 0.220", ESN 2003011388-
20	AT301900	1	Flat Belt	-
21	AT318645	1	Screw	SUB FOR AT318455, ESN 2003011388-
21	LW4066202	1	Cap Screw	SUB FOR 19M7759, ESN -2003011387, M16 X 60
22	19M8081	2	Cap Screw	M10 X 80, ESN -2003011387
22	19M2869	2	Cap Screw	M10 X 45, ESN 2003011388-
25	AT301901	2	Cover	-
4A	AT304928	1	Pulley	-
4B	AT312044	1	Pulley	-

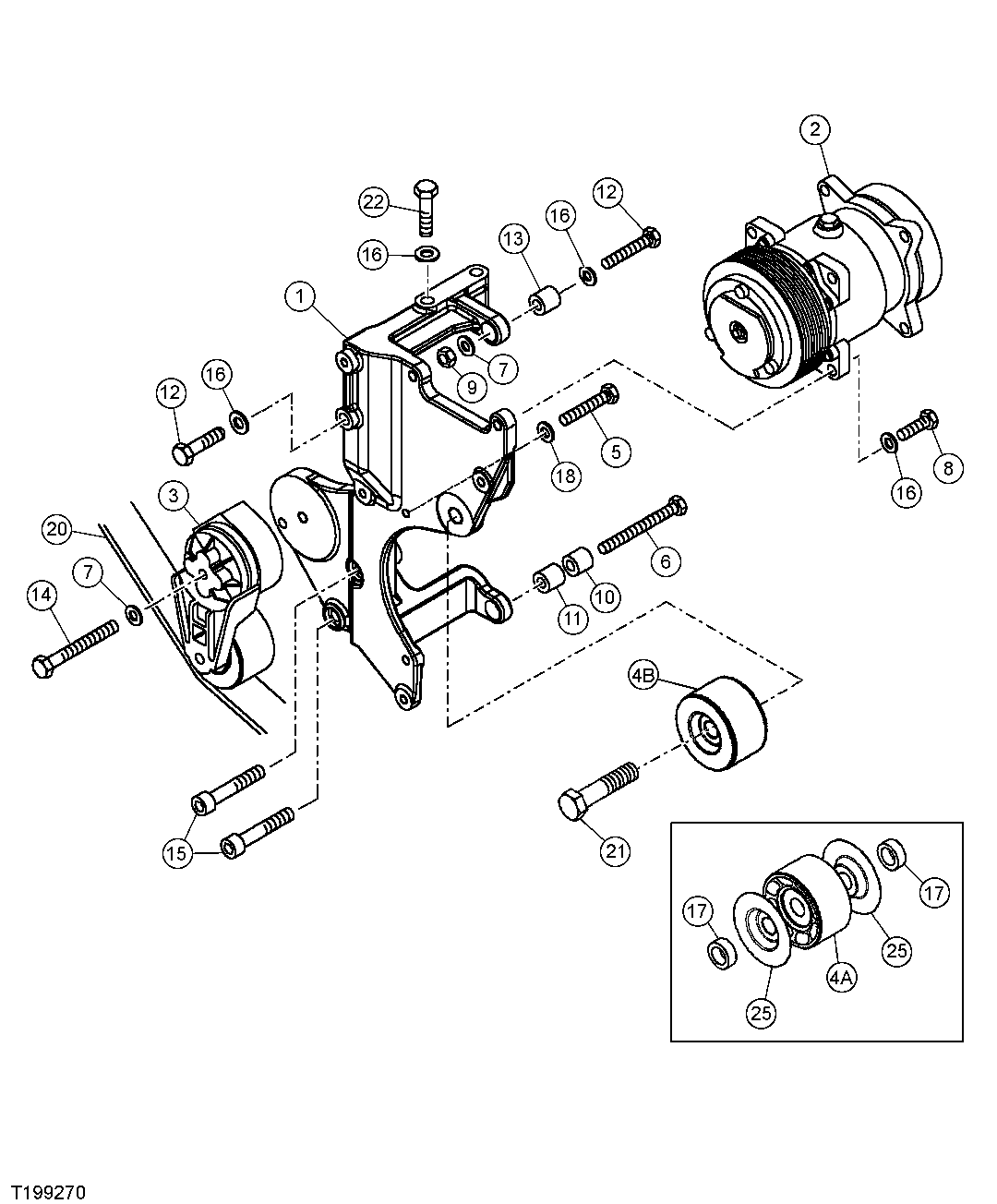

Air Conditioning Compressor (Complete Assembly) (006200 - )
