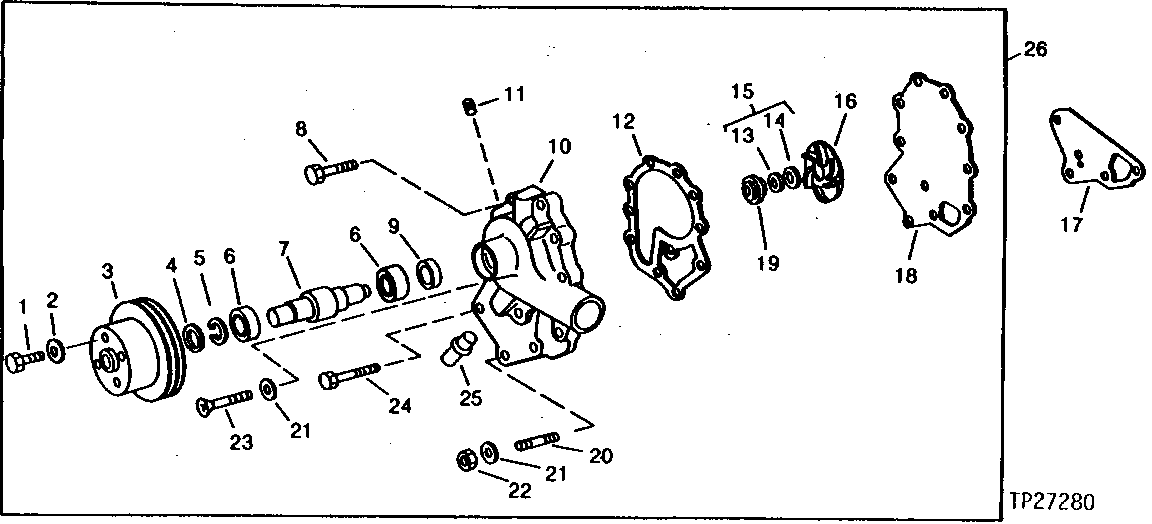

WATER PUMP ASSEMBLY (ENGINE SERIAL NO.208368- ) [01J06]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H2993	1	Cap Screw	1/2" X 1-1/2"
2	T20217	1	Washer	-
2	24M7032	1	Washer	31 X 45 X 5 MM
3	R85200	1	PULLEY	FAN
4	AR90861	1	Seal	OUTER
5	R62191	1	Snap Ring	1.7 MM (.067")
5	R62192	1	Snap Ring	1.9 MM (.077")
5	R62193	1	Snap Ring	2.2 MM (.087")
5	R62194	1	Snap Ring	2.5 MM (.097")
6	JD10329	2	Ball Bearing	(SUB FOR JD7686)
7	R82052	1	SHAFT	(SUB FOR R72140)
8	19H2633	5	Cap Screw	3/8" X 1-1/2"
9	AR90860	1	SEAL	INNER
10	R60601	1	HOUSING	WATER PUMP
11	15H584	1	Pipe Plug	1/2", HEX. CTSK. (WITHOUT HEATER)
12	R112036	1	GASKET	(SUB FOR R98838)
13	-	1	Part 17	(SUB AR101549)
14	-	1	Part 18	(SUB AR101549)
15	AR101549	1	Seal Kit	-
16	R99122	1	Impeller	WATER PUMP (USE IF AVAILABLE)
16	R56812	1	Impeller	(SUB FOR R99122)
17	R98470	1	GASKET	-
18	R56811	1	Cover	WATER PUMP
19	-	1	Part 24	(SUB AR101549) WATER PUMP
20	F3646R	1	STUD	-
20	R63431	1	STUD	-
21	12H304	1	Lock Washer	3/8"
22	N10215	1	Lock Nut	3/8", (SUB FOR 14H812, THIS APPLICATION)
23	19H3031	2	Cap Screw	HS, SAE 8, 3/8" X 2-1/2"
24	19H3217	1	Cap Screw	HS, SAE 8, 3/8" X 1-3/4"
25	R34985	1	Line	-
26	RE40239	1	WATER PUMP	(MARKED R60601)

WATER PUMP ASSEMBLY (ENGINE SERIAL NO.208368- ) [01J06]
