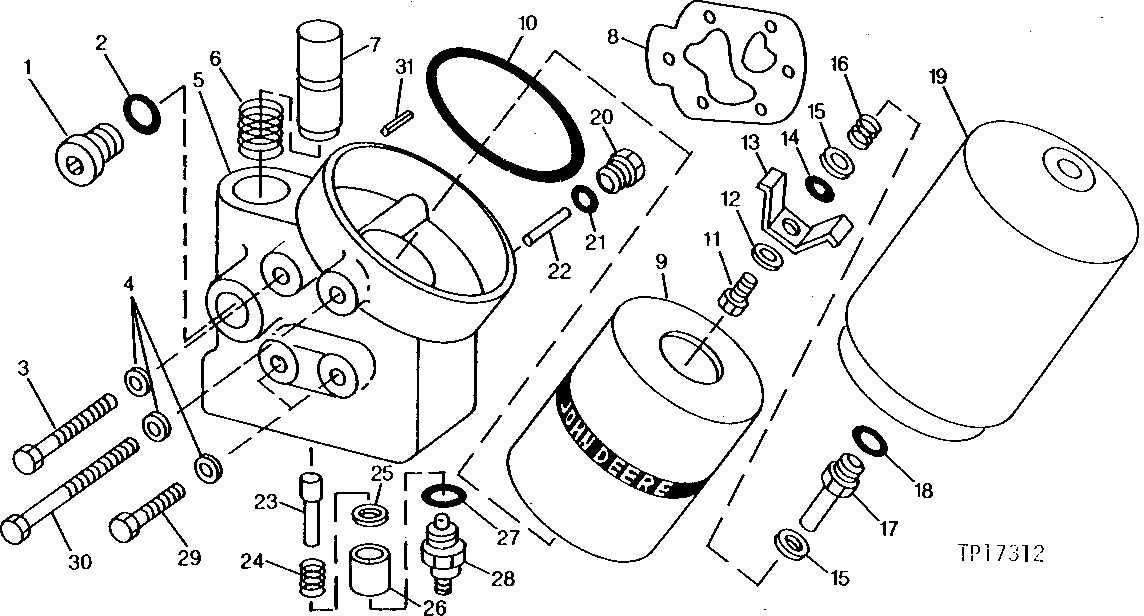

TRANSMISSION OIL FILTER (SERIAL NO. 731274- ) [01G15]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T58477	1	Fitting	(PLUG)
2	R26906	1	O-Ring	-
3	19H2338	1	Cap Screw	1/4" X 4-1/2"
4	24H1287	4	Washer	9/32" X 5/8" X 0.065", (2-PUMP MOUNTING MOUNTING SCREWS) (2-UPPER RIGHT AND LEFT FILTER BASE MOUNTING SCREWS)
5	T128834	1	HOUSING	(SUB FOR AT85755) (ALSO ORDER (2) 15H558)
6	T51158	1	SPRING	-
7	T83401	1	SPOOL	-
8	T213024	1	GASKET	( T83416 NO LONGER AVAILABLE)
9	RE15472	1	FILTER ELEMENT	-
10	T12275	1	O-Ring	-
11	19H1797	1	CAP SCREW	HS, SAE 8, 1/16" X 3/4"
12	24M7232	1	Washer	8.700 X 17 X 2 MM
13	R65892	1	RETAINER	-
14	F2741R	1	Packing	-
15	24H1341	2	Washer	17/32" X 15/16" X 0.060"
16	R56346	1	SPRING	-
17	T83413	1	PLUG	-
18	R26286	1	O-Ring	-
19	T83414	1	COVER	-
20	T58477	1	Fitting	(PLUG)
21	U40962	1	O-Ring	-
22	T83399	1	PIN	-
23	M1319T	1	PIN FASTENER	-
24	T28631	1	Spring	-
25	24H1287	1	Washer	9/32" X 5/8" X 0.065"
26	T83398	1	BUSHING	-
27	R26375	1	O-Ring	-
28	AR40795	1	TOUCH SWITCH	-
28	14H631	1	Nut	0.190", (TO PRESSURE SWITCH)
29	19H2340	2	CAP SCREW	1/4" X 5-1/2"
30	08H4773	1	CAP SCREW	-
31	34H86	4	SPRING PIN	7/32" X 3/4", (RIGHT AND LEFT PUMP MOUNT AND FILTER HOUSING LOCATING, 2 PER SIDE)

TRANSMISSION OIL FILTER (SERIAL NO. 731274- ) [01G15]
