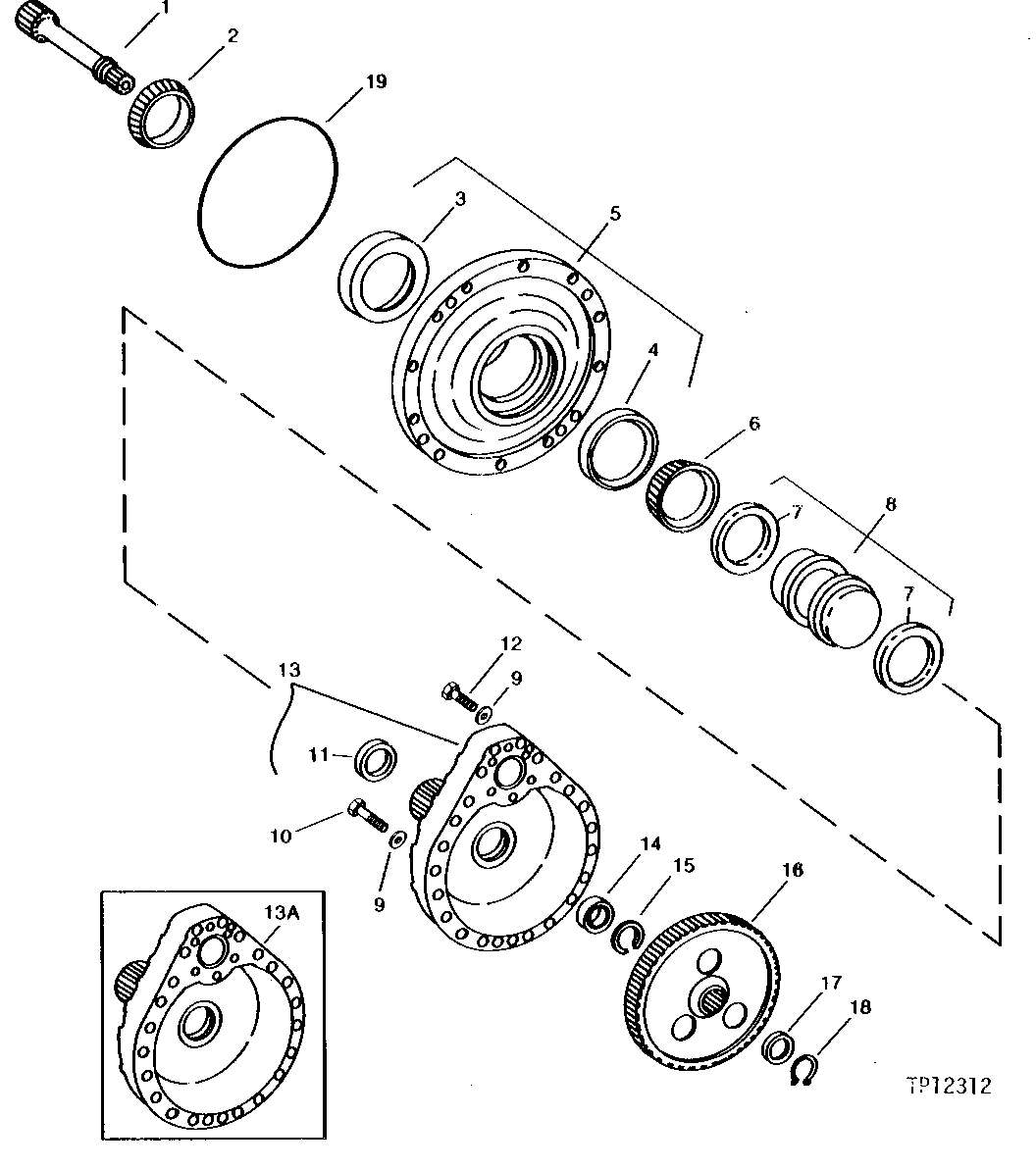

SPROCKET FRAME AND FINAL DRIVE COVER [01B23]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T46178	1	PINION SHAFT	(12 TEETH)
2	JD9603	1	BEARING CONE	-
3	JD9157	1	BEARING CUP	-
4	JD9152	1	Bearing Cup	-
5	-	1	Part 5	(SUB JD9152, JD9157 AND T46176) (SUB FOR AT44929) SPROCKET
6	JD9083	1	Bearing Cone	-
7	AT61856	1	SEAL	(SET OF 2) (CHICAGO RAWHIDE)
8	AT61855	1	SEAL	(SEAL KIT) (INCLUDES AT61856) (FOUR PIECES OF SEAL)
9	R73290	22	Washer	(SUB FOR T497T, THIS APPLICATION)
10	19H2407	18	Cap Screw	HS, SAE 8, 5/8" X 4" (FINAL DRIVE HOUSING COVER TO HOUSING)
10	19H3256	18	Cap Screw	HS, SAE 8, 5/8" X 6" (WITH WIDE TRACK) (FINAL DRIVE HOUSING COVER TO FINAL DRIVE HOUSING)
11	T55338	1	SEAL	-
12	19H3208	4	Cap Screw	5/8" X 3"
12	19H1550	4	CAP SCREW	5/8" X 5", (WITH WIDE TRACK)
13	T73737	1	COVER	(SUB FOR AT70994) (ALSO ORDER T55338)
13	AT104311	1	COVER	(MARKED T81747) (SUB T55338 AND T81747) (WITH WIDE TRACK)
14	JD8537	1	Ball Bearing	-
14	T44824	1	Snap Ring	(SUB FOR R53332)
15	R33321	1	SNAP RING	-
16	T46179	1	GEAR	(27 INTERNAL TEETH AND 71 EXTERNAL TEETH)
17	T46180	1	WASHER	-
18	T46181	1	Snap Ring	-
19	T59816	1	O-RING	(BETWEEN SPROCKET FRAME AND PLANETARY HOUSING)

SPROCKET FRAME AND FINAL DRIVE COVER [01B23]
