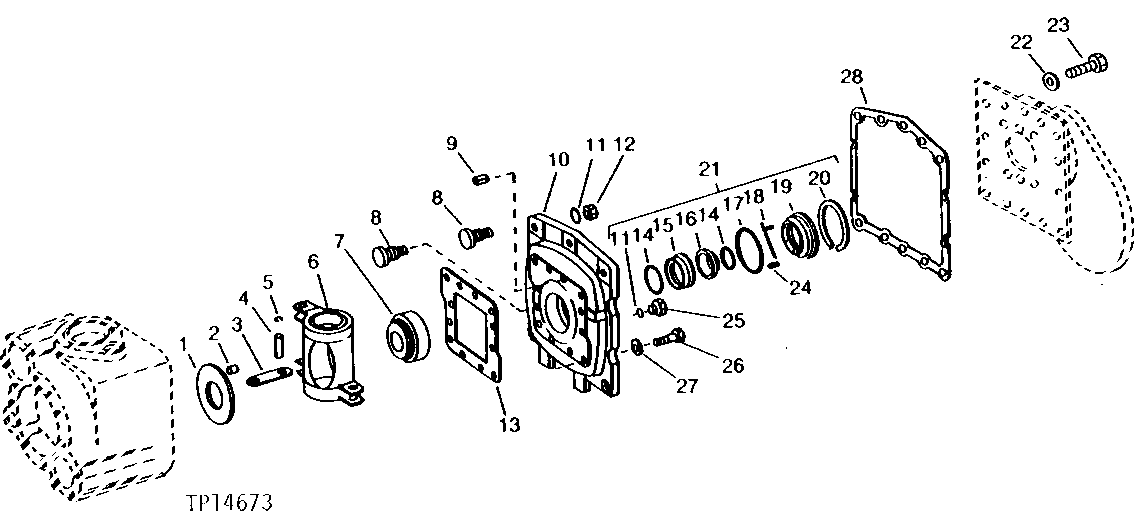

RIGHT AND LEFT-HAND TRANSMISSION MOTOR SWASHPLATE AND FRONT COVER [01D17]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T54853	1	THRUST WASHER	-
2	T54863	1	PIN	-
3	T54866	1	STRAP	-
4	T61553	1	PIN FASTENER	-
5	T61554	2	SNAP RING	-
6	T71512	1	SWASH PLATE	-
7	AT52801	1	BEARING KIT	-
8	T71504	1	STOP	-
9	T54850	1	PIN	-
10	T71510	1	COVER	-
11	R26375	2	O-Ring	(K)
12	T54879	1	NUT	-
13	T54857	1	GASKET	(K)
14	R82459	2	O-Ring	(K) (SUB FOR T54881)
15	-	1	Part 15	(SUB AT52800)
16	-	1	Part 16	(SUB AT52800)
17	R55453	1	O-Ring	-
18	H63243	12	COMPRESSION SPRING	-
19	-	1	Part 19	(SUB AT52800)
20	N131806	1	Snap Ring	-
21	AT52800	1	SEAL KIT	SEAL SHAFT
22	R73290	6	Washer	(SUB FOR T497T, THIS APPLICATION)
23	19H2588	6	Cap Screw	5/8" X 1-7/8"
23	19H2710	6	Cap Screw	-
24	-	1	Part 25	(SUB AT52800)
25	R39112	1	Fitting	-
26	19H2735	12	Cap Screw	-
27	T54864	12	WASHER	-
28	-	1	Part 29	(SUB T144082 AND (6) 19H2710, THIS APPLICATION) (ALSO ORDER AT63519 ADHESIVE)
28	T144082	1	GASKET	(SUB FOR T82711) (ALSO ORDER AT63519 ADHESIVE)
