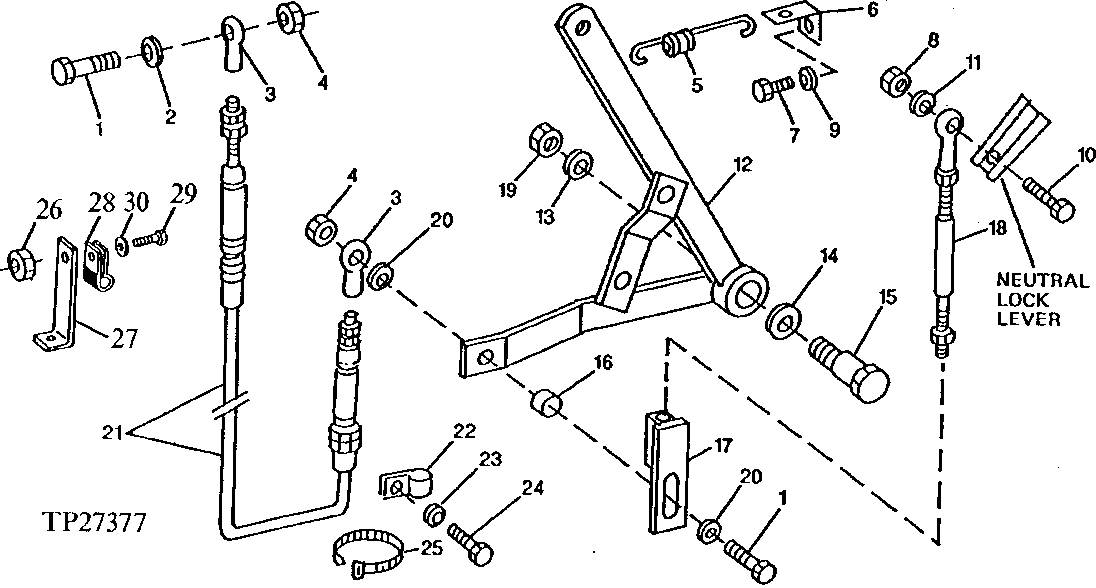

RETURN-TO-NEUTRAL LINKAGE (SERIAL NO. 731274- ) [01C19]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H2849	1	Cap Screw	5/16" X 1-3/4", (TRIP LEVER TO CABLE AND BRAKE LOCK LEVER)
2	R56397	1	Washer	(BRAKE CABLE AND TRIP LEVER CAPSCREW)
3	AT49297	2	Link End	-
4	14H1043	1	NUT	7/8"
4	T16464	1	Lock Nut	(TRIP LEVER TO CABLE AND BRAKE LOCK LEVER SCREW)
5	T14010	1	SPRING	-
6	T53279	1	ANGLE	-
7	19H1227	1	Cap Screw	1/4" X 1/2"
8	T16464	1	Lock Nut	-
9	24H1286	1	Washer	9/32" X 1/2" X 1/16"
10	19H2117	1	Cap Screw	5/16" X 1-1/8", (NEUTRAL LOCK TO NEUTRAL ROD)
11	12H303	1	Lock Washer	5/16"
12	-	1	Part 13	NA, (SUB FOR AT105254)
12	L4694T	1	Bushing	(PRESSED INTO AT105254 TRIP LEVER)
13	24H1436	1	Washer	15/16" X 1-3/4" X 0.134"
14	24M7241	1	Washer	17 X 34 X 4 MM, (SUB FOR T40728)
15	T20824	1	BOLT	-
16	R52516	1	Bushing	(SUB FOR E47368)
16	E47368	1	SPACER	-
17	AT105109	1	BRACKET	-
18	AT105108	1	TIE ROD ASSEMBLY	(INCLUDES AT116774)
18	AT116774	1	LINK END	(FEMALE ROD END)
19	14H808	1	NUT	5/8"
20	12H303	1	Lock Washer	5/16"
21	AT113732	1	CABLE	(SUB FOR AT104233 AND AT113476) (ALSO ORDER (2) AT49297)
22	H75541	1	Clamp	(SUB FOR R34557)
23	12H304	1	Lock Washer	3/8"
24	19H3217	1	Cap Screw	3/8" X 1-3/4"
25	R44302	1	Tie Band	-
26	14H1076	1	Nut	3/8"
27	T34530	1	ANGLE	(TO HOLD RETURN-TO-NEUTRAL CONTROL TO LEFT HAND TRANSMISSION STEERING CONTROL BRACKET- REAR HOLE)
28	H75541	1	Clamp	-
29	19H3239	1	Cap Screw	3/8" X 1-1/4"
30	24M7239	2	Washer	10.700 X 21 X 2.500 MM

RETURN-TO-NEUTRAL LINKAGE (SERIAL NO. 731274- ) [01C19]
