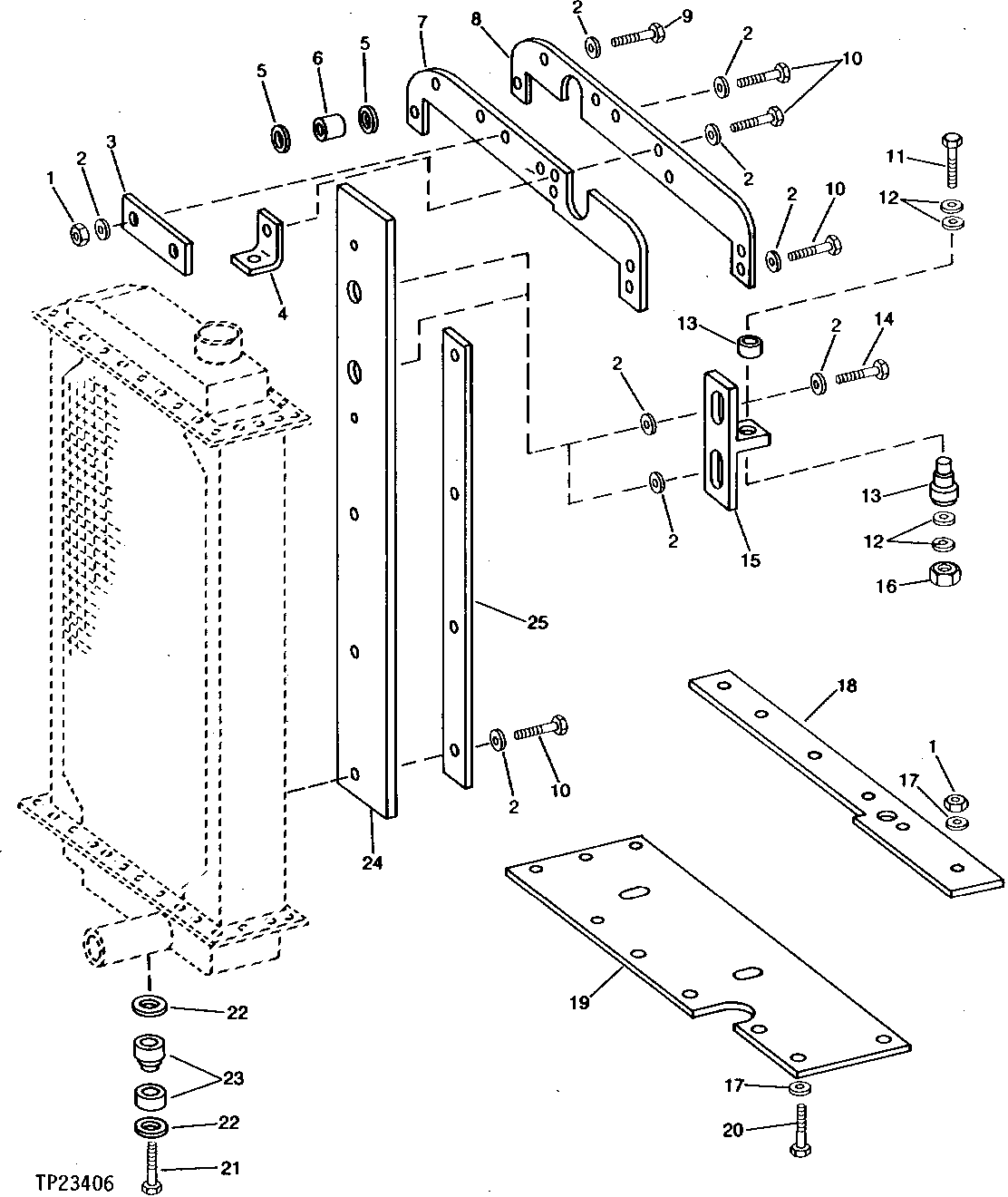

RADIATOR SUPPORTS AND BAFFLES (SERIAL NO. 751230- ) [02B17]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T11234	10	Lock Nut	-
2	24M7233	15	WASHER	10.700 X 21 X 2.500 MM
3	M72390	3	Strap	-
3	M72390	3	Strap	(RADIATOR LOWER DEFLECTOR TO ISOLATOR)
4	T120093	3	Angle	(SUB FOR AT117835)
5	24M7296	10	Washer	10.500 X 30 X 2.500 MM
6	28H2531	1	Bushing	-
7	T121138	1	DEFLECTOR	-
8	T121139	1	ISOLATOR	-
9	19H3065	1	Cap Screw	3/8" X 2"
10	19H1648	15	Cap Screw	3/8" X 3/4"
11	19H3586	2	Cap Screw	1/2" X 4-1/4"
12	T62323	8	Washer	-
13	AT169186	2	Isolator	(SUB FOR AT169186)
14	19H3467	4	Screw	5/16" X 1", H.S.,SAE.8
15	AT125906	2	Bracket	-
16	BP12214	2	Lock Nut	(SUB FOR T30482)
17	24H1308	1	Washer	13/32" X 1" X 0.134", (6 USED ON RADIATOR UPPER DEFLECTOR TO ISOLATOR)
17	24M7101	2	Washer	11 X 34 X 3 MM, (RADIATOR LOWER DEFLECTOR TO SUPPORT SCREW)
17	-	8	Part 20	(DEFLECTOR TO ISOLATOR RIVETS - ISOLATOR END)
18	-	1	Part 21	( T121136 NOT SERVICED)
19	T124105	1	DEFLECTOR	(SUB FOR T121137)
20	19H2676	6	Cap Screw	3/8" X 1"
20	R55326	6	Rivet	(WITH RIVETED DEFLECTOR) (RADIATOR LOWER DEFLECTOR TO ISOLATOR)
21	19H2668	2	Cap Screw	1/2" X 3-1/2"
22	T62323	4	Washer	-
23	AT169186	1	Isolator	(SUB FOR AT59650)
24	T119957	2	Isolator	-
25	T120090	2	Strap	-

RADIATOR SUPPORTS AND BAFFLES (SERIAL NO. 751230- ) [02B17]
