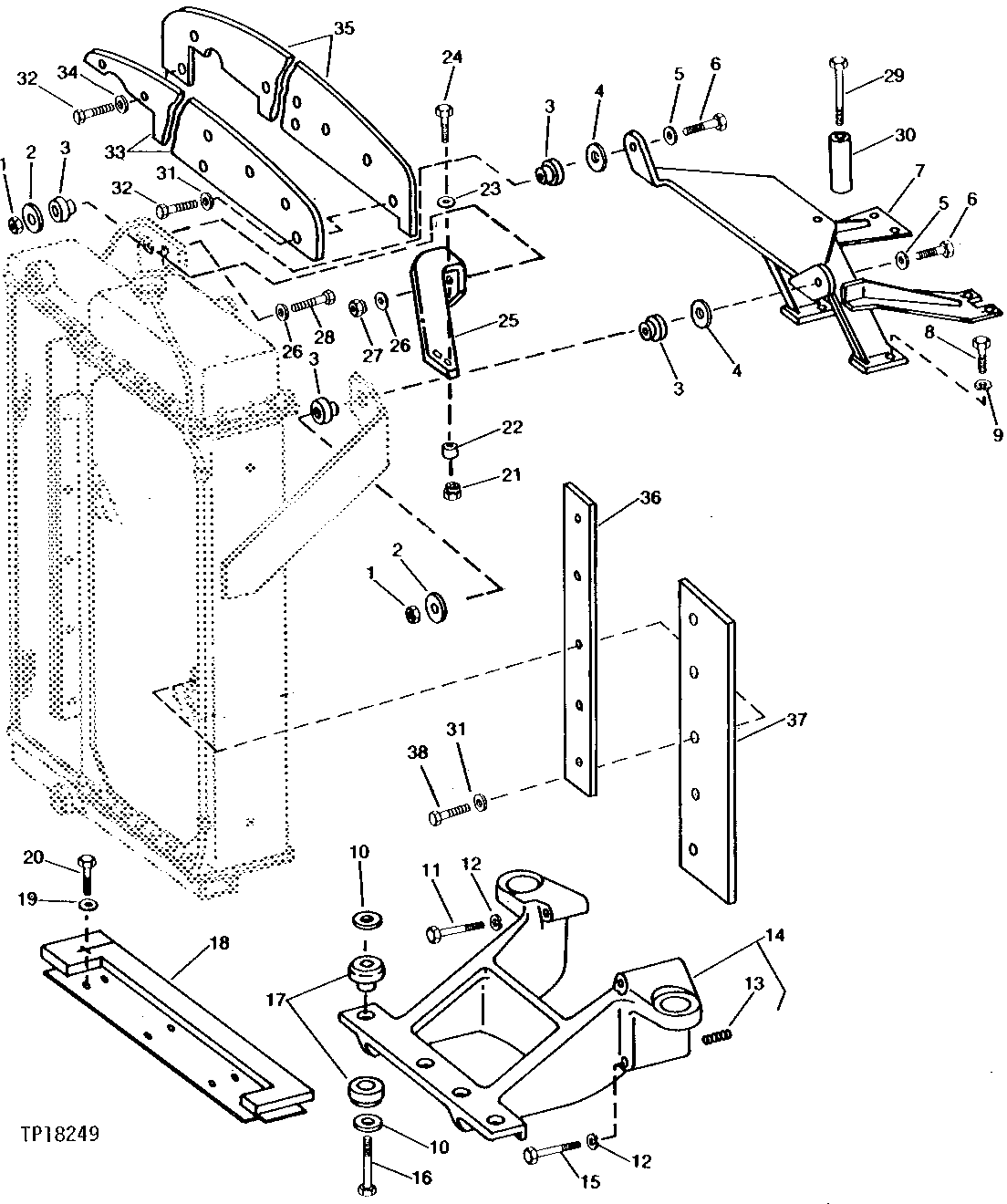

RADIATOR SUPPORTS AND BAFFLE (SERIAL NO. -751229) [02B15]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	K40014	2	Lock Nut	(SUB FOR BP12214, THIS APPLICATION)
2	T62323	2	Washer	-
3	AT72254	4	Isolator	-
4	T62323	2	Washer	-
5	24M7240	2	Washer	13 X 25 X 3 MM
6	19H2644	2	Cap Screw	HS, SAE 8, 1/2" X 2-1/2"
7	AT104633	1	SUPPORT	(SUB FOR AT72241)
8	19H3579	2	Cap Screw	1/2" X 1-3/8"
9	12H301	2	Lock Washer	1/2"
10	T62323	8	Washer	-
11	19H2726	1	Cap Screw	HS, SAE 8, 5/8" X 4"
12	12H294	4	Lock Washer	5/8"
13	R54380	2	Dowel Pin	-
14	T70836	1	SUPPORT	ENGINE AND RADIATOR, (SUB FOR AT67792)
15	19H3174	3	Cap Screw	5/8" X 5-1/4"
16	19H3057	4	Cap Screw	1/2" X 2-3/4"
17	AT169186	4	Isolator	(SUB FOR AT59650)
18	AT60838	1	DEFLECTOR	-
19	24H1308	3	Washer	13/32" X 1" X 0.134"
20	19H2284	3	Cap Screw	3/8" X 7/8"
21	T16464	2	Lock Nut	-
22	28H2497	2	Spacer	(SUB FOR T11574, THIS APPLICATION)
23	24H1292	2	Washer	11/32" X 3/4" X 0.120"
24	19H3296	2	Cap Screw	5/16" X 2"
25	T74306	1	ANGLE	-
26	R42729	4	Washer	-
27	T11234	2	Lock Nut	-
28	19H3239	2	Cap Screw	3/8" X 1-1/4"
29	19H3224	1	CAP SCREW	1/2" X 6-1/4"
30	T74631	1	SPACER	-
31	24M7233	17	WASHER	10.700 X 21 X 2.500 MM
32	19H2284	8	Cap Screw	3/8" X 7/8"
33	T105353	1	PLATE	BAFFLE
34	24H1307	1	Washer	13/32" X 1" X 1/16"
35	T105354	1	ISOLATOR	-
36	T105356	2	STRAP	-
37	T105355	2	ISOLATOR	-
38	19H2676	10	Cap Screw	3/8" X 1"

RADIATOR SUPPORTS AND BAFFLE (SERIAL NO. -751229) [02B15]
