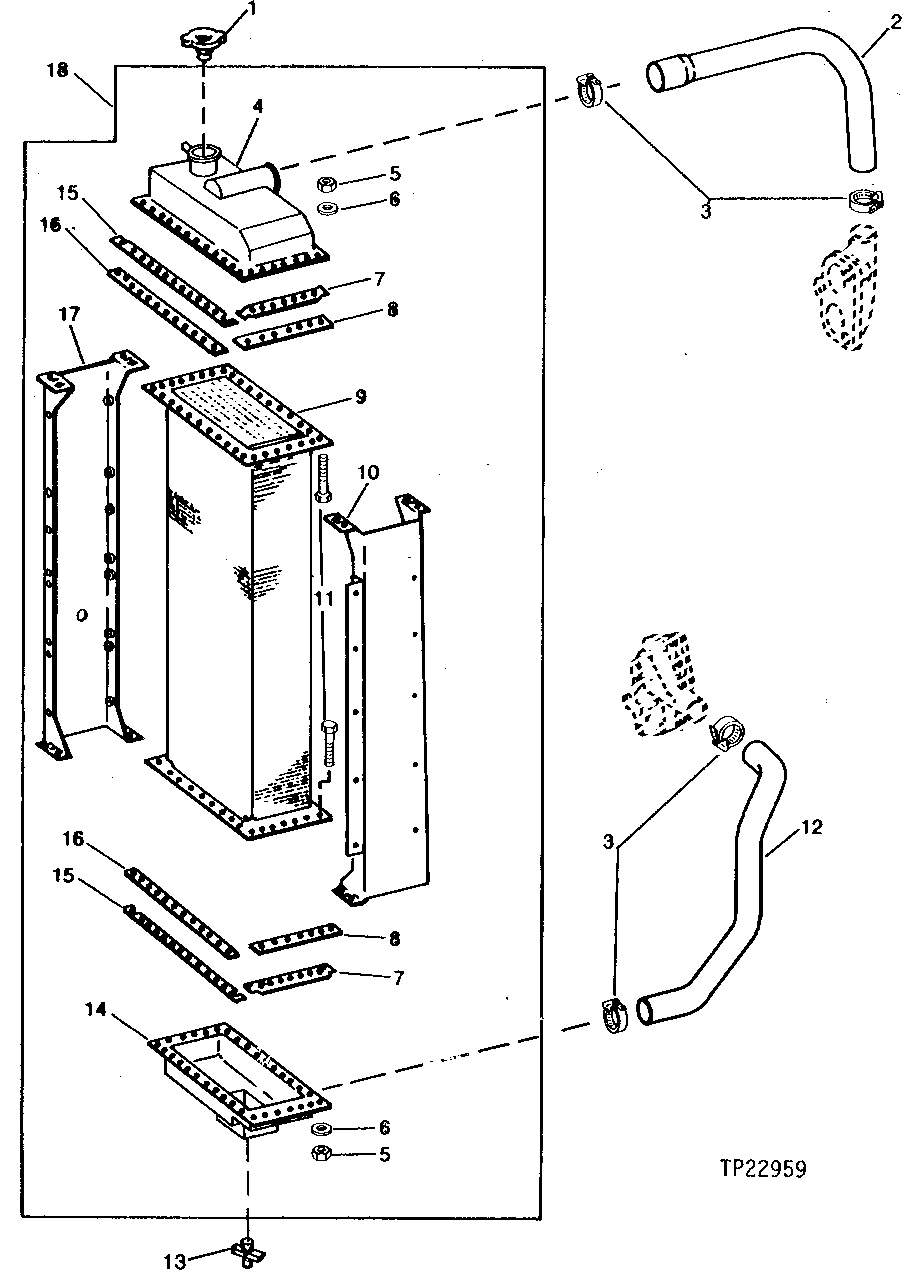

RADIATOR AND RADIATOR HOSES (SERIAL NO. 751230- ) [02B12]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AN191560	1	Filler Cap	-
2	T121132	1	HOSE	UPPER
2	T126121	1	RADIATOR HOSE	-
3	AR21999	4	Hose Clamp	-
4	-	1	Part 5	(AT132967 NO LONGER AVAILABLE) (SUB FOR AT117899)
5	14H785	64	Nut	5/16"
6	12H303	64	Lock Washer	5/16"
7	-	4	Part 8	(K)
8	T55626	4	STRAP	-
9	-	1	Part 10	(SUB AT142435)
10	-	1	Part 11	(AT135221 NO LONGER AVAILABLE) (SUB AT142435) (SUB FOR AT117898, THIS APPLICATION) L.H.
11	19H2705	64	Cap Screw	HS, SAE 8, 5/16" X 1"
12	T121133	1	HOSE	LOWER
12	T126120	1	HOSE	-
13	AT13740	1	Drain Valve	-
14	-	1	Part 16	(AT135223 NO LONGER AVAILABLE) (SUB AT142435) (SUB FOR AT117901, THIS APPLICATION)
15	-	4	Part 17	(K)
16	T68372	4	BAR	-
17	-	1	Part 19	(AT135222 NO LONGER AVAILABLE) (SUB AT142435) (SUB FOR AT117900, THIS APPLICATION) R.H.
18	AT142435	1	RADIATOR	(SUB FOR AT116796 AND AT132995) (WHEN ORDERED FOR AT116796 ALSO ORDER AT132999)
18	AT141512	1	CORE	(SERVICE ALTERNATE FOR AT116796)

RADIATOR AND RADIATOR HOSES (SERIAL NO. 751230- ) [02B12]
