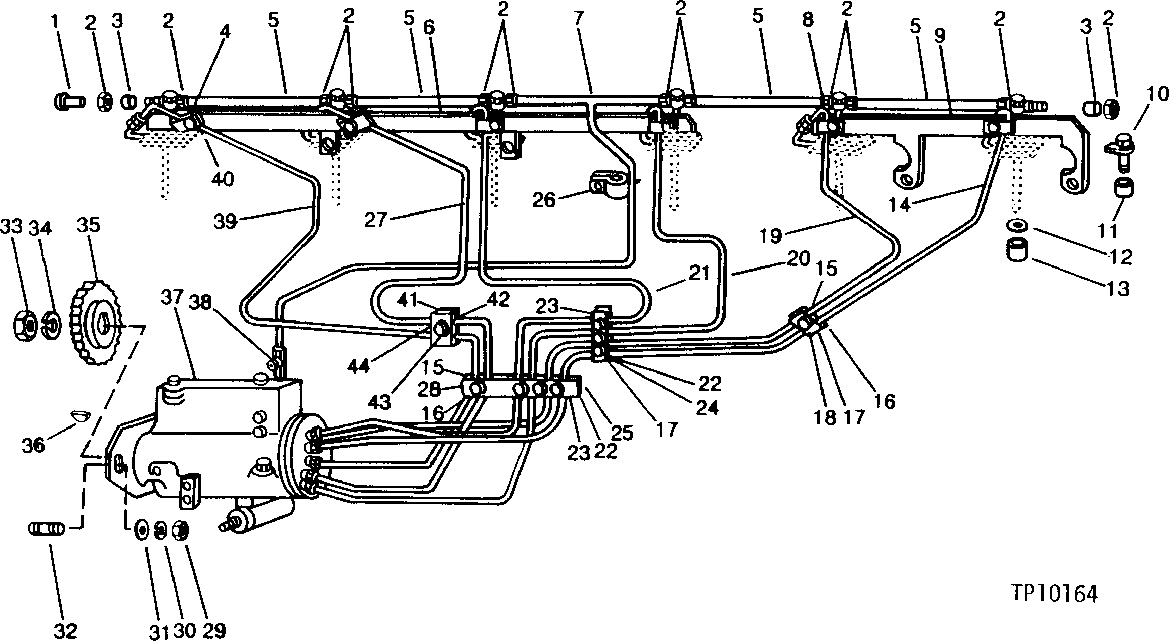

FUEL INJECTION SYSTEM (ENGINE SERIAL NO. -127895) [01I08]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	16H658	1	Rivet	1/4" X 5/8"
2	R51937	12	Tube Nut	-
3	R51936	12	Sealing Washer	-
4	24H1243	6	WASHER	11/32" X 5/8" X 1/16"
5	R66090	4	Tube	-
6	AR88421	1	SUPPORT	-
7	AR85615	1	Line	-
8	R63657	6	Clamp	-
9	AR78585	1	SUPPORT	-
10	R34760	6	CLAMP	-
11	R60745	6	SPACER	(K) (K1)
12	R60746	6	WASHER	(K)
13	R48000	6	Seal	-
14	AR66279	1	FUEL LINE	NO. 6
15	R58186	4	Clamp	-
16	R61144	2	Strap	-
17	AR76704	4	SCREW	WITH WASHER
18	R59305	1	Strap	-
19	AR66278	1	FUEL LINE	NO. 5
20	AR66277	1	FUEL LINE	NO. 4
21	AR66276	1	FUEL LINE	NO. 3
22	R59299	4	CLAMP	-
23	R61146	2	STRAP	-
24	R59300	1	STRAP	-
25	R63653	1	REINFORCEMENT	-
26	T29969	1	Clamp	-
27	AR66275	1	FUEL LINE	NO. 2
28	AR86092	4	SCREW	WITH WASHER
29	14H785	3	Nut	5/16"
30	12H303	3	Lock Washer	5/16"
31	T27860	3	Washer	-
32	R56055	3	STUD	-
33	R56422	1	NUT	-
34	R56423	1	Washer	-
35	R56056	1	GEAR	(48 TEETH)
36	H64373	1	Shaft Key	(SUB FOR R56424 OR M114270) (CUT TO LENGTH)
37	RE32295	1	FUEL INJECTION PUMP	(STANADYNE NO. ) (SUB FOR RE21152) (STANADYNE NO. DM4627MD2916)
37	SE500635	1	FUEL INJECTION PUMP REMAN	(REMANUFACTURED)
38	R35352	1	Fitting	-
39	AR66274	1	FUEL LINE	NO. 1
40	19H2664	6	Cap Screw	5/16" X 3/4"
41	R58186	2	Clamp	-
42	R61144	1	Strap	-
43	AR76704	1	SCREW	WITH WASHER
44	R59305	1	Strap	-
