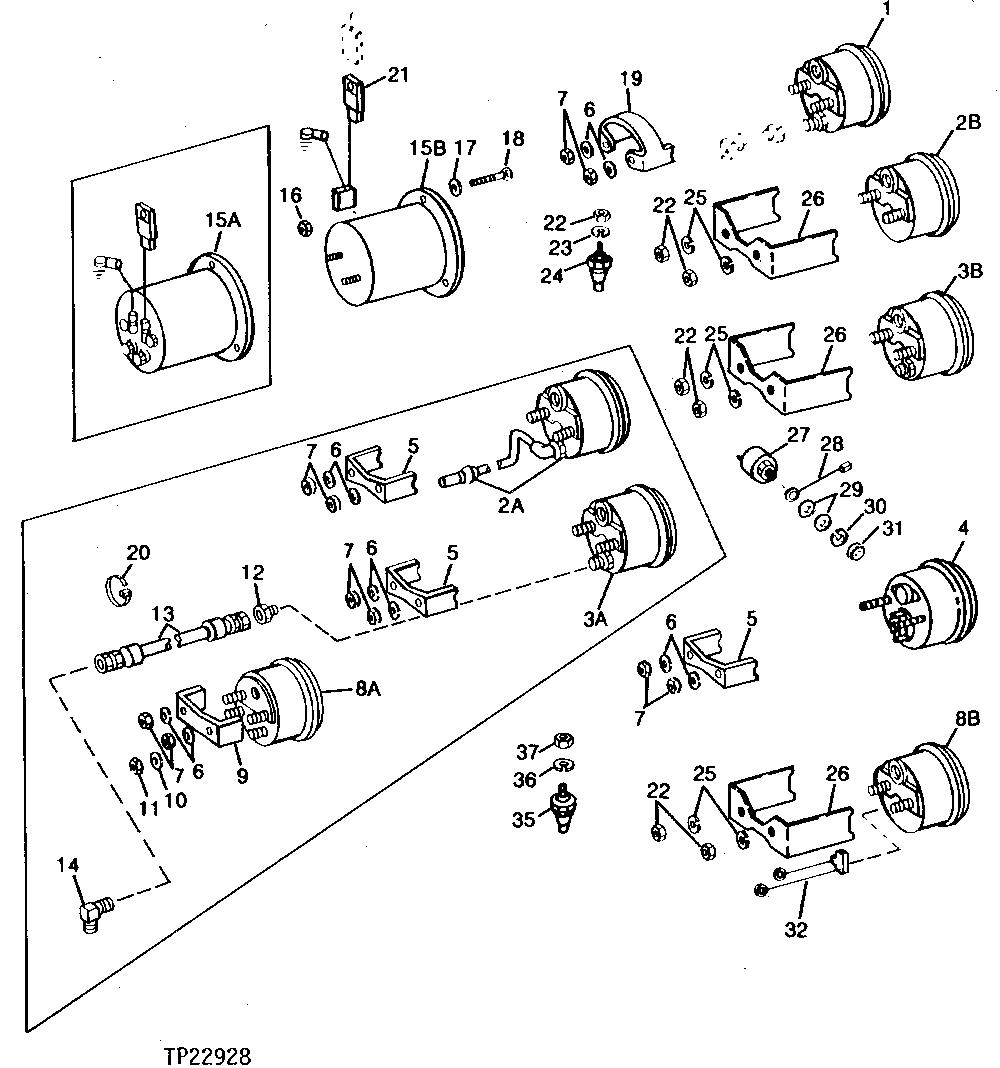

ENGINE GAUGES AND SENDING UNITS [02G07]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT77728	1	GAUGE	TRANSMISSION OIL PRESSURE
4	AT104655	1	TEMPERATURE GAUGE	ENGINE, (SUB FOR AT46474) (ALSO ORDER AT104634, AT124052, T118593, (2) 12M7084, 12H315, (3) 14M7100 AND AT151881)
5	T38594	3	BRACKET	(USE WITH AT46474)
5	T38594	1	BRACKET	(USE WITH AT46474)
5	T118593	1	BRACKET	(USE WITH AT104655)
6	12H295	10	Lock Washer	0.190"
6	12H295	2	Lock Washer	0.190"
7	14H631	11	Nut	0.190"
7	14H631	2	Nut	0.190"
9	T39395	1	BRACKET	-
10	12H315	1	Lock Washer	0.164"
11	14H605	1	Nut	0.164"
12	T49206	1	Adapter Fitting	-
13	AT77715	1	HYDRAULIC HOSE	7/16" X 1 702 MM (67") X 7/16"
14	T28850	1	Elbow Fitting	-
16	14H1026	3	Nut	0.138"
17	12H314	3	Lock Washer	0.138"
18	21H964	3	SCREW	0.138" X 1/2"
19	T74617	1	Bracket	-
20	R44302	1	Tie Band	(SUB FOR AT41441, THIS APPLICATION)
21	AT85271	1	WIRING LEAD	-
22	14M7100	13	Nut	M4, (5 USED WITH ENGINE OIL PRESSURE GAUGE SCREWS) (5 USED WITH TRANSMISSION OIL TEMPERATURE GAUGE SCREWS) (3 USED WITH VOLTMETER SCREWS)
23	12H315	1	Lock Washer	0.164"
24	AT124052	1	SENDER	(SUB FOR AT104659) TRANSMISSION OIL TEMPERATURE
25	12M7084	6	Lock Washer	4.300 MM
26	T118593	3	BRACKET	-
27	AT168629	1	ENGINE OIL PRESSURE SENDER	(SUB FOR RE15583, THIS APPLICATION) ENGINE OIL PRESSURE
28	AT104634	1	WIRING LEAD	-
29	24H1283	2	Washer	7/32" X 1/2" X 0.049"
30	12H246	1	LOCK WASHER	0.190"
31	14H631	1	Nut	0.190"
32	AT116521	1	ELECTRICAL CONNECTOR ASSY	(SUB FOR AT104624)
33	12H295	2	Lock Washer	0.190", (USE WITH AT46474)
33	12M7084	2	Lock Washer	0.169", (USE WITH AT104655)
34	14M7100	2	Nut	M4, (USE WITH AT104655)
34	14H631	2	Nut	0.190", (USE WITH AT46474)
35	AT124052	1	SENDER	ENGINE TEMPERATURE, (SUB FOR AT104659)
36	12H246	1	LOCK WASHER	0.190"
37	14H631	1	Nut	0.190"
2A	AT149005	1	GAUGE	(SUB FOR AT46476) TRANSMISSION OIL TEMPERATURE
2B	AT104658	1	TEMPERATURE GAUGE	TRANSMISSION OIL
3A	AT37411	1	PRESSURE GAUGE	ENGINE OIL
3B	AT104656	1	PRESSURE GAUGE	ENGINE OIL
8A	AT46477	1	VOLTMETER	(SUB AT116524 AND T118593 BRACKET. REPLACE HARNESS EYELETS WITH R65595 AND U46370)
8B	AT116524	1	VOLTMETER	(SUB FOR AT104657)
15A	-	1	Part 22	(SUB AT226353 AND AT85271)
15B	AT226353	1	Hour Meter	(SUB FOR AT86509, AT80938 AND AT44832)

ENGINE GAUGES AND SENDING UNITS [02G07]
