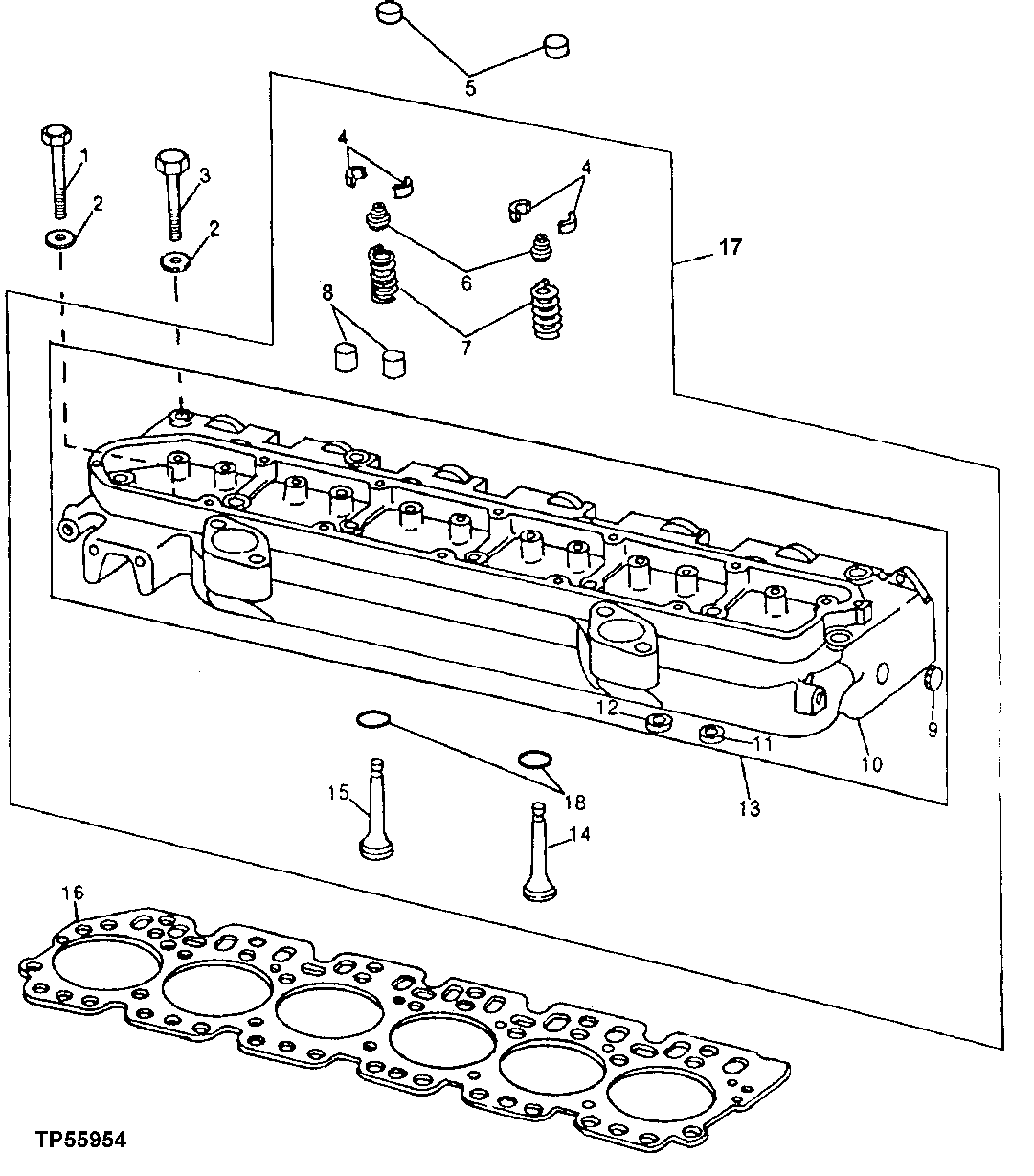

CYLINDER HEAD, HEAD GASKET AND VALVES (ENGINE SERIAL NO. -299999) [01H23]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R53223	20	CAP SCREW	1/2" X 4-1/4"
2	24M7240	26	Washer	13 X 25 X 3 MM, (DO NOT USE WITH R85363)
3	R85363	6	Cap Screw	(SUB FOR R78558) 1/2" X 4-1/2"
3	R85363	26	Cap Screw	(SUB FOR R78558) 1/2" X 4-1/2"
4	T20077	24	Retainer	-
5	T20129	12	Cap	-
6	RE11410	12	Rotator	-
7	R26125	12	Spring	-
8	R110524	12	Seal	(USE WITH RE56544)
9	A3910R	1	PLUG	-
9	CD16284	1	Plug	-
10	-	1	Part 12	(SUB RE56544)
11	R73064	6	VALVE SEAT INSERT	INTAKE
12	R73065	6	INSERT	EXHAUST
13	-	1	Part 15	(MARKED R61035) (SUB RE56544) (AR96841 NO LONGER AVALIABLE)
14	R89226	6	EXHAUST VALVE	STANDARD, (SUB FOR R73063) (ALSO ORDER R87627)
14	R89227	6	EXHAUST VALVE	0.08 MM (.003") OVERSIZE STEM, (SUB FOR R76539) (ALSO ORDER R87627)
14	R89228	6	EXHAUST VALVE	0.38 MM (.015") OVERSIZE STEM, (SUB FOR R76541) (ALSO ORDER R87627)
14	R89229	6	EXHAUST VALVE	0.76 MM (.030") OVERSIZE STEM, (SUB FOR R76543) (ALSO ORDER R87627)
15	R83071	6	INTAKE VALVE	STANDARD, (SUB FOR R72611)
15	R89223	6	INTAKE VALVE	0.08 MM (.003") OVERSIZE STEM, (SUB FOR R76538 AND R88174) (ALSO ORDER R87627)
15	R89224	6	INTAKE VALVE	0.38 MM (.015") OVERSIZE STEM, (SUB FOR R76540 AND R88175) (ALSO ORDER R87627)
15	-	6	Part 23	( R89225 NO LONGER AVAILABLE) 0.76 MM (.030") OVERSIZE STEM, (SUB FOR R76542 AND R88176) (ALSO ORDER R87627)
16	R91880	1	GASKET	(SUB FOR R73429 AND R80244)
17	RE56544	1	CYLINDER HEAD	(MARKED R60135)(SUB FOR AR96841)
18	R87627	1	O-RING	(USE WITH AR96841)

CYLINDER HEAD, HEAD GASKET AND VALVES (ENGINE SERIAL NO. -299999) [01H23]
