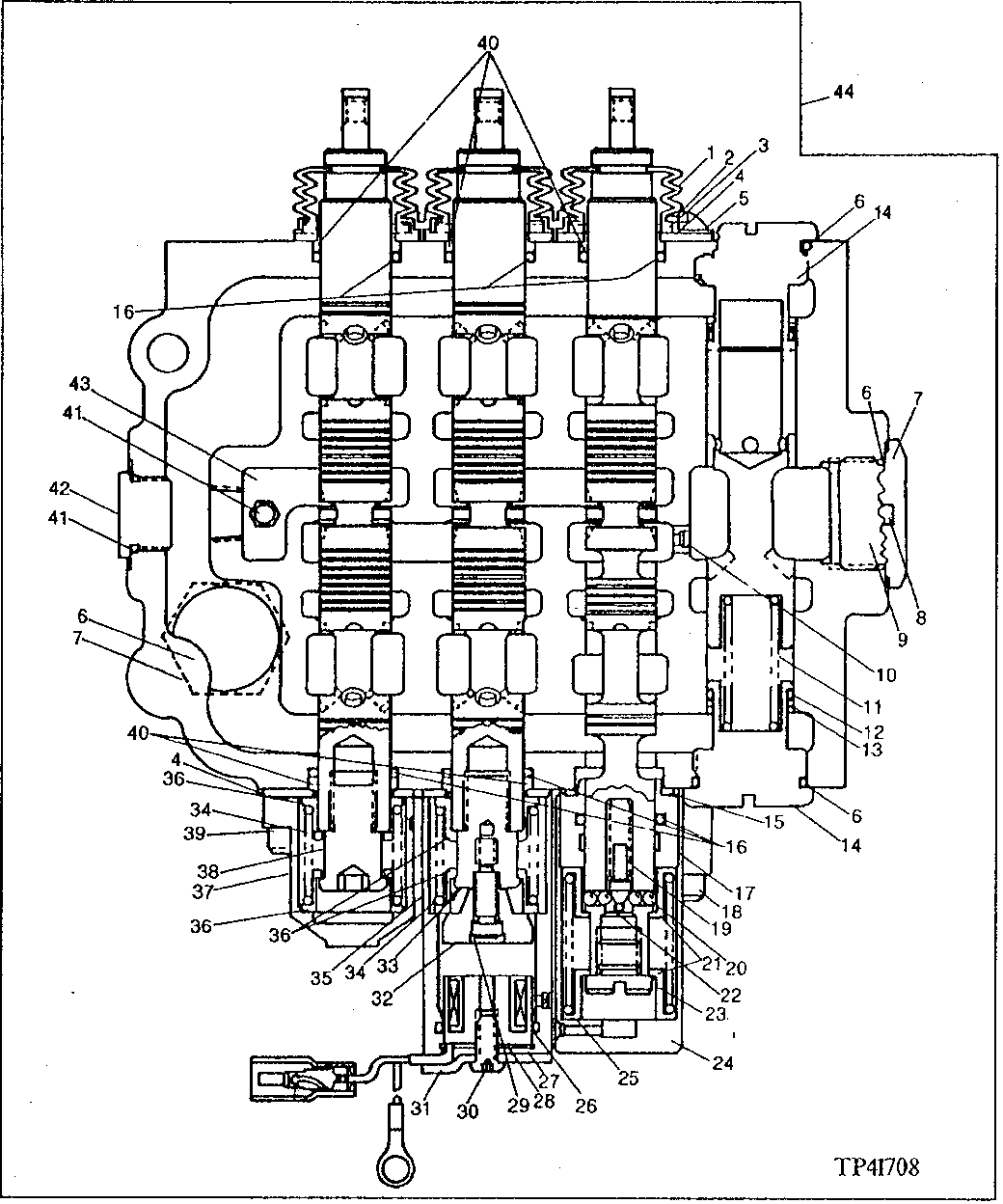

CONTROL VALVE ASSEMBLY (SERIAL NO. 733243- ) [03C07]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T105562	3	BOOT	-
2	T105566	3	RETAINER	BOOT
3	T105584	3	FILTER	-
4	T75451	3	PLATE	SEAL
4	T75451	5	PLATE	-
5	21H1334	6	Screw	3/8" X 1/2", (SUB FOR 21H757) MACHINE
6	U13639	4	O-Ring	-
7	R39741	2	Drain Plug	-
8	R51031	1	Fitting	-
9	R28782	1	O-Ring	-
10	T105588	1	FITTING PLUG	-
11	T105574	1	SPRING	-
12	U15974	2	O-Ring	-
13	T105582	2	BACK-UP RING	BACK-UP
14	T105580	2	FITTING PLUG	-
15	R29354	1	O-Ring	-
16	T72888	9	O-Ring	-
16	T120011	6	O-RING	-
17	T105568	1	SLEEVE	DETENT
18	19H3093	4	Screw	3/8" X 1-3/4"
19	-	1	Part 21	(SUB T120007) (T105571 IS NO LONGER AVAILABLE)
19	T120007	1	SPRING	-
20	T26254	8	Ball	-
21	T105577	1	RETAINER	SPRING
22	T105586	1	CAM	DETENT
23	T105569	1	FITTING PLUG	-
24	T105585	1	CAP	-
25	T105572	1	SPRING	-
26	H84318	1	O-Ring	-
27	H35226	1	Snap Ring	RETAINING
28	AT104991	1	MAGNET	-
28	AT114550	1	HOUSING	(MAGNET)
29	T105576	1	SCREW	-
30	19H2932	1	Screw	1/4" X 1"
31	T105565	1	CAP	-
32	T105564	1	PISTON	-
33	T105563	1	END	-
34	T120014	2	SPRING	(SUB FOR T105575)
35	T105578	1	CAP	-
36	T75453	4	RETAINER	SEAT
37	T105589	1	CAP	-
38	T75454	1	SCREW	-
39	19H2923	2	Screw	3/8" X 1"
40	T75459	5	SEAL	-
41	U12547	2	O-Ring	-
41	U12547	1	O-Ring	-
42	T64769	1	Drain Plug	-
43	R27175	1	Drain Plug	-
44	-	1	Part 49	( AT117872 - NO LONGER AVAILABLE) (SUB FOR AT104902)
44	AT135568	1	SPOOL VALVE	-

CONTROL VALVE ASSEMBLY (SERIAL NO. 733243- ) [03C07]
