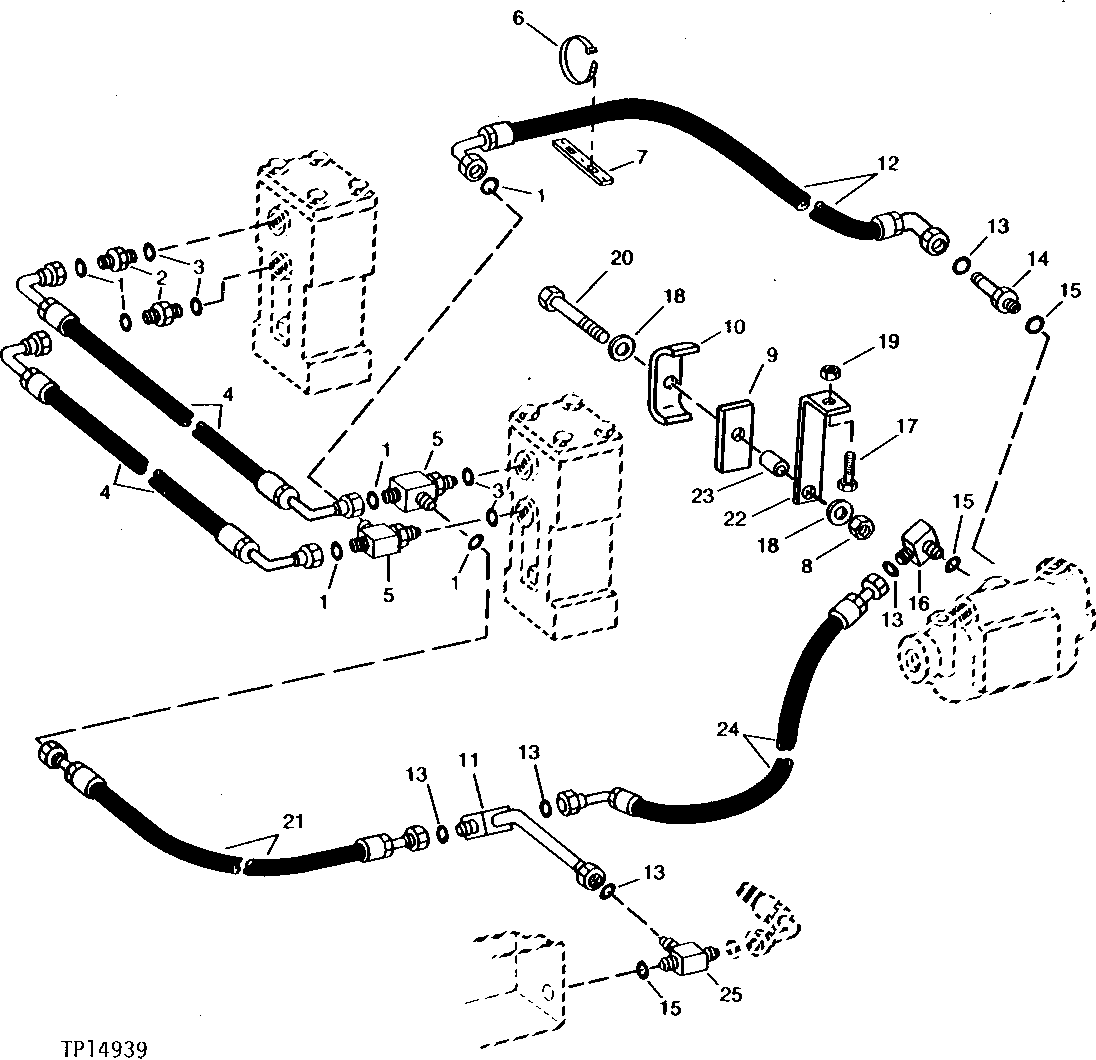

BYPASS VALVE, SUMP, TO BRAKE VALVE HYDRAULICS [01G04]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T77613	6	O-Ring	(SUB FOR T76818)
2	38H1160	2	Adapter Fitting	-
3	R26448	4	O-Ring	-
4	AT71991	2	Hydraulic Hose	11/16" X 235 MM (9-1/4") X 11/16"
5	38H1023	2	Tee Fitting	-
6	R44302	1	Tie Band	-
7	R44302	1	Tie Band	(SUB FOR T74335)
8	M40333	1	Lock Nut	-
9	T43358	1	Strap	(SUB FOR T43347)
10	U40398	1	Clamp	-
11	AT72003	1	OIL LINE	-
12	AT72029	1	HYDRAULIC HOSE - FABRICATE	11/16" X 1 075 MM (42-1/4") X 13/16", (SUB FOR AT129792, THIS APPLICATION) (ALSO ORDER 38H1094 AND T77613)
13	T77857	5	O-Ring	(SUB FOR T76819)
14	38H1213	1	Adapter Fitting	-
15	R26375	3	O-Ring	-
16	38H1005	1	Elbow Fitting	(SUB FOR AT75293)
17	19H2676	1	Cap Screw	3/8" X 1"
18	24H1822	2	Washer	11/32" X 7/8" X 1/16"
19	14H1076	1	Nut	3/8"
20	19H3220	1	Cap Screw	1/4" X 2-1/2"
21	AT149855	1	HYDRAULIC HOSE - FABRICATE	11/16" X 520 MM (20-1/2") X 13/16", (SUB FOR AT72001) (ALSO ORDER 38H1046 AND 38H1430)
21	AT85761	1	HYDRAULIC HOSE - FABRICATE	11/16" X 597 MM (23-1/2") X 13/16"
22	T34530	1	ANGLE	-
23	28H1697	1	Spacer	0.493" X 0.675" X 3/4"
24	AT72030	1	HYDRAULIC HOSE - FABRICATE	13/16" X 695 MM (27-1/4") X 13/16"
25	38H1024	1	Tee Fitting	-

BYPASS VALVE, SUMP, TO BRAKE VALVE HYDRAULICS [01G04]

Нет текстового описания
