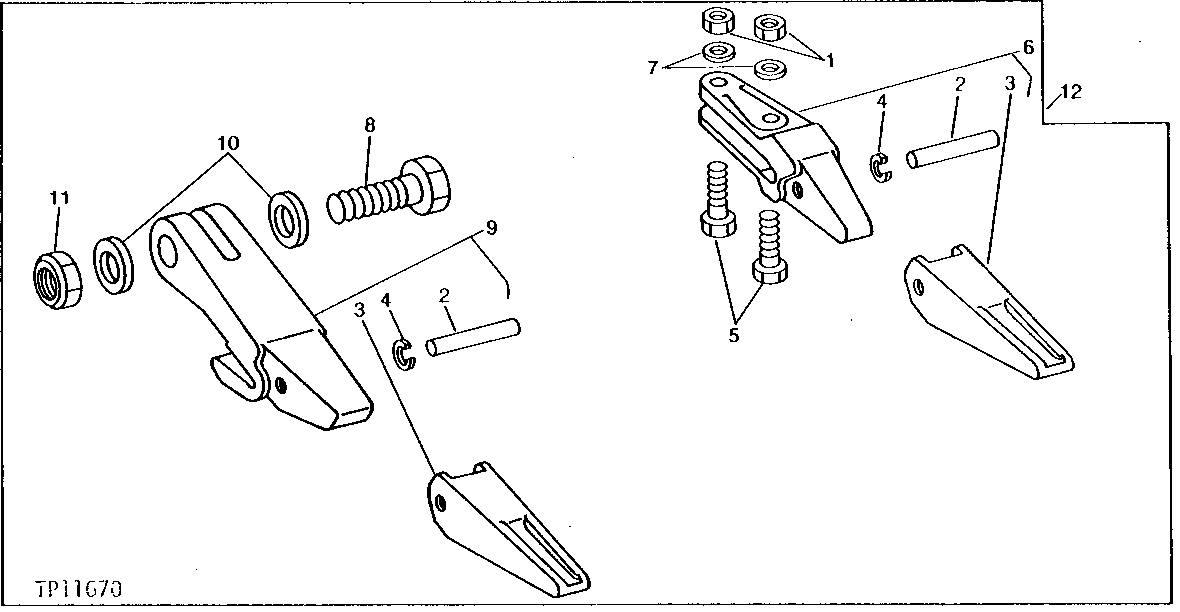

BUCKET TEETH (FOR USE WITH 1.5 M3 (2 CUBIC YARD) [03B08]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	K40018	10	Lock Nut	-
2	T67083	7	PIN	-
3	T69647	7	TOOTH	-
4	T67086	7	WASHER	-
5	19H3556	10	Cap Screw	HS, SAE 8, 1" X 4-1/4"
6	-	6	Part 6	CENTER, (SUB T104673, T67083, T67086 AND T69647) (SUB FOR AT78559) (AT104240 - NO LONGER AVAILABLE)
6	T104673	1	BUCKET TOOTH ADAPTER	-
7	T75690	10	Washer	-
8	19H3594	2	CAP SCREW	HS, SAE 8, 1-1/4" X 4-1/4"
9	-	2	Part 10	CORNER, (SUB T104674, T67083, T67086 AND T69647) (SUB FOR AT78560) (AT104241 - NO LONGER AVAILABLE)
9	T104674	1	BUCKET TOOTH ADAPTER	-
10	T80165	4	WASHER	(SUB FOR T76090)
11	A20329	2	Lock Nut	-
12	-	1	Part 14	(NO LONGER AVAILABLE) (SUB FOR AT78558 AND AT167702) (USE ONLY ON BUCKETS WITH STRAIGHT CUTTING EDGES AND WELDED CORNERS) (WHEN ORDERED FOR AT76801 BUCKET, ALSO ORDER AT84494 BUSHING KIT)

BUCKET TEETH (FOR USE WITH 1.5 M3 (2 CUBIC YARD) [03B08]

Нет текстового описания
