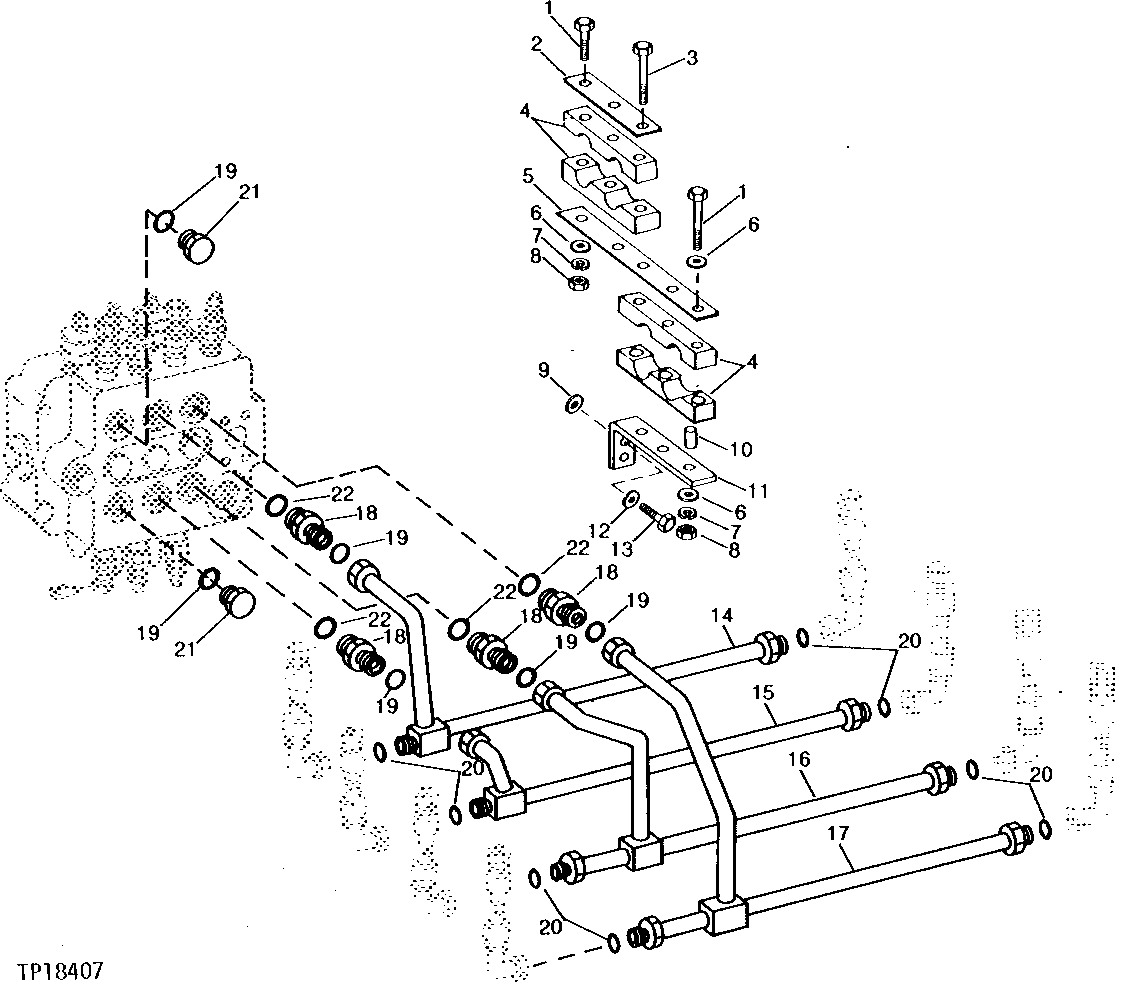

BOOM AND BUCKET LOADER HYDRAULICS (SERIAL NO. 733243- ) [03D24]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H2855	4	Cap Screw	3/8" X 3-1/4"
2	T120017	1	STRAP	(SUB FOR T48169)
3	19H2345	1	Cap Screw	3/8" X 5-1/2"
4	T48167	4	CLAMP	-
5	T62111	1	STRAP	-
6	24M7233	7	WASHER	10.700 X 21 X 2.500 MM
7	24M7233	1	WASHER	10.700 X 21 X 2.500 MM
8	14H1076	5	Nut	3/8"
9	24H1272	2	Washer	9/16" X 1-1/4" X 1/4"
10	T48168	6	BUSHING	-
11	T62110	1	BRACKET	-
12	T33177	2	WASHER	.531 I.D. X 1.250 O.D. X .105 THICKNESS
13	19H2898	2	Cap Screw	1/2" X 1-1/4"
14	AT113462	1	OIL LINE	(SUB FOR AT104136)
15	AT104135	1	OIL LINE	-
16	AT104134	1	OIL LINE	-
16	AT116611	1	OIL LINE	(ALSO REQUIRES 38H1216)
17	AT104133	1	OIL LINE	-
18	38H1164	3	Adapter Fitting	-
18	38H1216	1	Adapter Fitting	(TO BUCKET TOP CONTROL VALVE PORTS)
18	38H1164	2	Adapter Fitting	(TO BOOM AND BUCKET LOWER CONTROL VALVE PORT)
18	38H1216	1	Adapter Fitting	(TO BOOM LOWER CONTROL VALVE PORT)
19	R29936	6	O-Ring	-
20	T77858	8	O-Ring	-
21	R36636	2	Drain Plug	-
22	T76938	4	O-Ring	-

BOOM AND BUCKET LOADER HYDRAULICS (SERIAL NO. 733243- ) [03D24]
