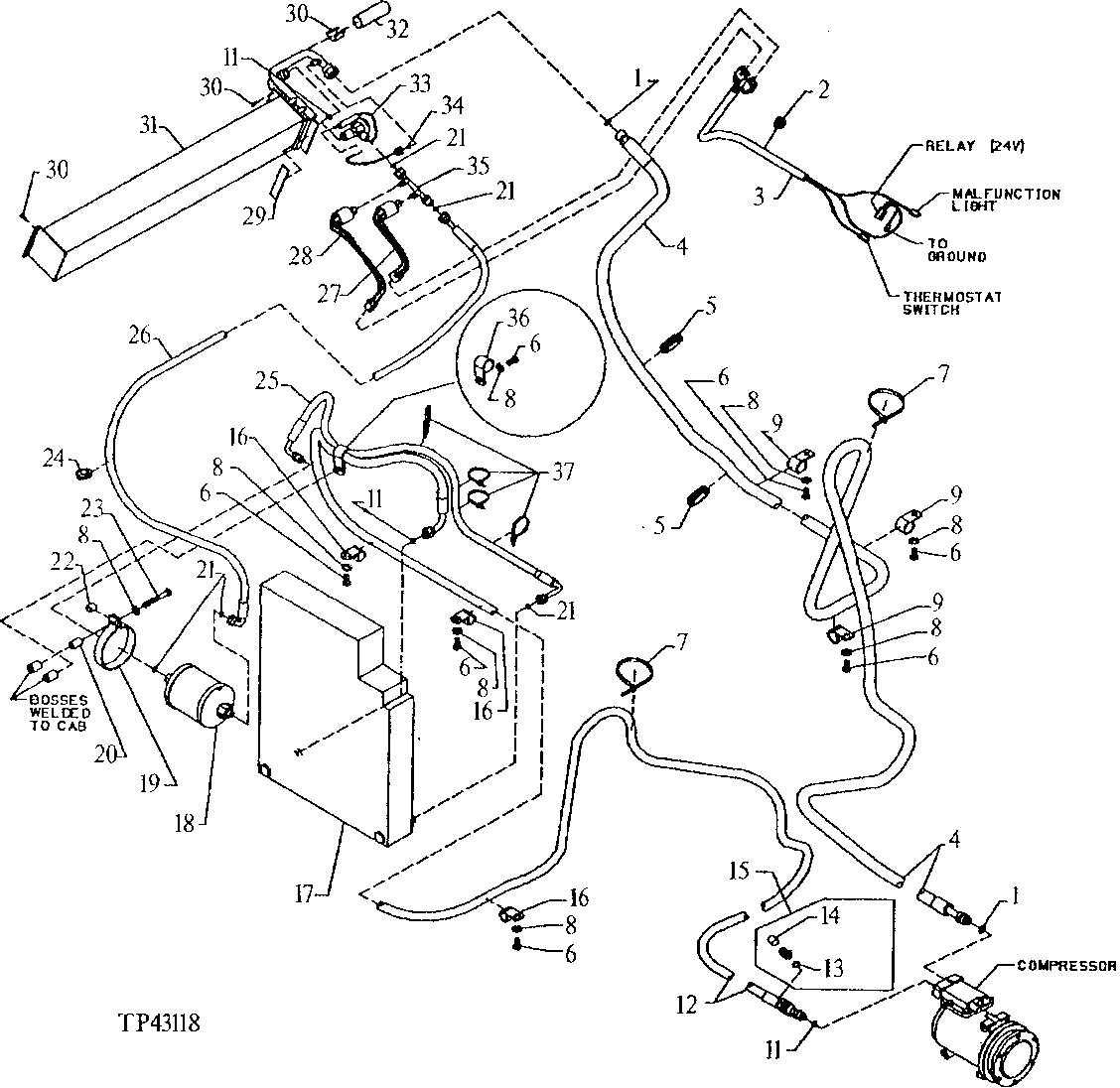

ATR CONDITIONING (SERIAL NO.791560- ) [02J17]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R33259	2	O-Ring	-
2	B30667	1	Grommet	-
3	AT113728	1	WIRING HARNESS	(AIR CONDITIONING WIRING HARNESS)
4	AT163837	1	REFRIGERANT HOSE	(REFRIGERANT SUCTION HOSE FROM EVAPORATOR TUBE TO COMPRESSOR-LOW SIDE SUCTION HOSE)
5	U15091	2	Grommet	SEAL
6	19H1648	11	Cap Screw	3/8" X 3/4", (1-DOUBLE CLAMP TO CAB/4-FAN SUPPORT TO CONDENSER SUPPORT/3-COMPRESSOR TO CONDENSOR LINE TO CAB CLAMPS/3-COMPRESSOR TO EVAPORATOR LINE TO CAB CLAMPS)
7	H77698	1	Tie Band	-
8	24M7239	8	Washer	10.700 X 21 X 2.500 MM
9	R72659	3	Clamp	-
10	AT163837	1	REFRIGERANT HOSE	7/8" X 170" X 7/8"
11	R113050	2	O-Ring	-
12	AT163838	1	HOSE	3/4" X 170" X 3/4"
13	R28776	1	O-Ring	-
14	T148917	1	Cap	-
15	AT164892	1	Hydraulic Cylinder Port	-
16	T28949	3	Clamp	-
17	AT82062	1	VAPOR CONDENSER	-
18	-	1	Part 18	( AL77581 USE IF AVAILABLE)
18	RE214439	1	Receiver-Dryer	(SUB FOR AL77581 OR RE49169)
19	R53422	1	Clamp	-
20	28H2547	1	Spacer	0.423" X 0.675" X 1"
21	R10093	5	O-Ring	-
22	28H1521	1	Spacer	0.493" X 0.675" X 9/16"
23	19H2732	1	Cap Screw	3/8" X 2-3/4"
24	T51497	1	Grommet	-
25	AT163836	1	REFRIGERANT HOSE	5/8" X 50" X 5/8"
26	AT163835	1	REFRIGERANT HOSE	5/8" X 78" X 5/8"
27	AT63265	1	Switch	(HIGH PRESSURE)
28	AT63266	1	SWITCH	(LOW PRESSURE)
29	-	1	Part 30	(MAKE FROM T59938 OR T63019 BULK MATERIAL, CUT TO LENGTH)
30	R66645	1	CLIP	-
31	AT163815	1	HEAT EXCHANGER	-
32	-	1	Part 33	(MAKE FROM TY15709 BULK MATERIAL, CUT TO LENGTH)
33	AH204686	1	Valve	(SUB FOR AH140818)
34	T143167	1	O-Ring	-
35	AT69125	1	TUBE	-
36	R46667	2	Clamp	-
37	R44302	1	Tie Band	-

ATR CONDITIONING (SERIAL NO.791560- ) [02J17]
