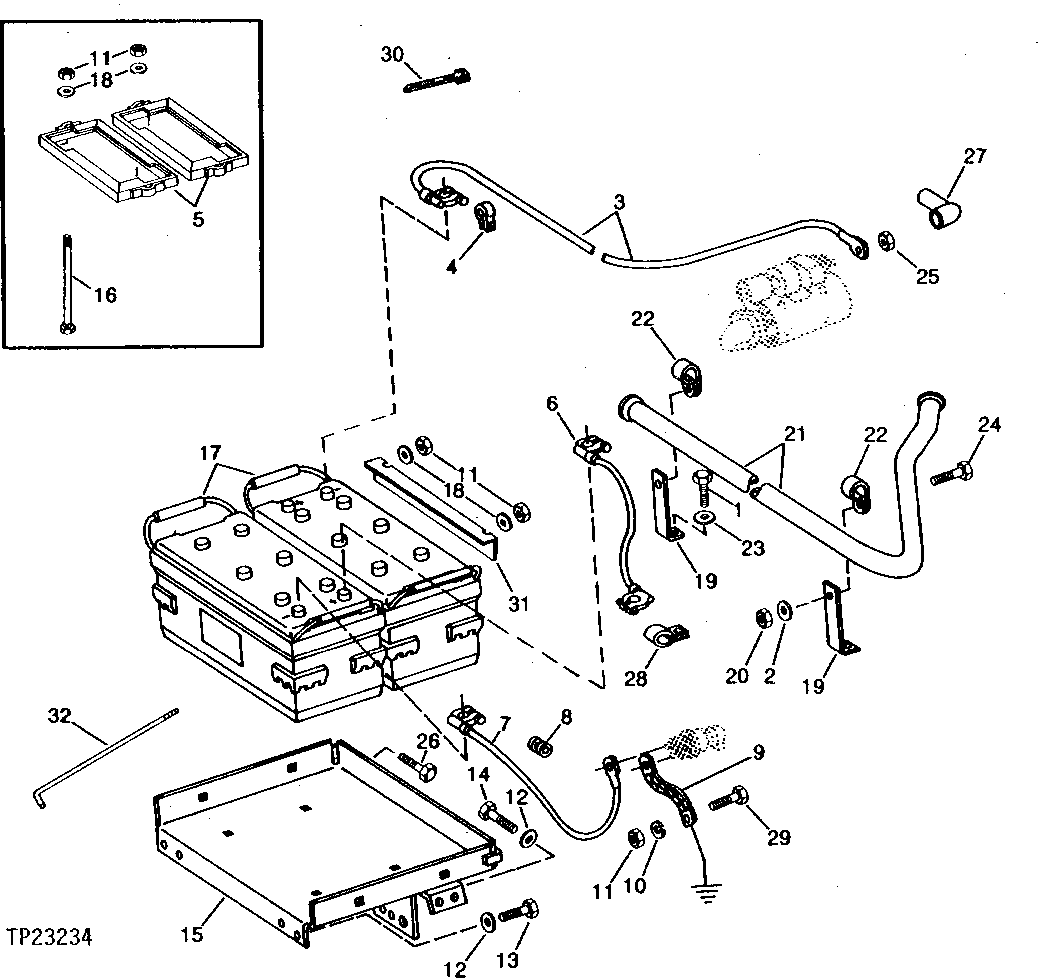

310-MINUTE RESERVE CAPACITY BATTERIES WITH CABLES AND MOUNTING [02E09]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H1648	2	Cap Screw	3/8" X 3/4"
2	24H1308	1	Washer	13/32" X 1" X 0.134"
3	AT72173	1	BATTERY CABLE	(SUB FOR AT72163)
4	T33514	1	Clamp	-
5	AT59763	2	FRAME	-
6	AT72164	1	BATTERY CABLE	-
7	AT74430	1	BATTERY CABLE	-
8	R41439	1	Grommet	-
9	AT38449	1	Ground Cable	-
10	24H1308	2	Washer	13/32" X 1" X 0.134"
11	14H1076	5	Nut	3/8"
11	14H785	4	Nut	5/16"
12	T33177	1	WASHER	-
13	19H3472	4	Cap Screw	5/8" X 9-3/4"
14	19H2898	3	Cap Screw	1/2" X 1-1/4"
14	19H2993	1	Cap Screw	1/2" X 1-1/2"
15	AT46393	1	SUPPORT	-
15	AT112974	1	SUPPORT	-
16	T47788	4	BOLT	-
17	TY6128	2	Dry Charged Battery	-
17	TY21754	2	DRY CHARGED BATTERY	(SUB FOR AU42915 AND TY6105)
18	24H1287	4	Washer	9/32" X 5/8" X 0.065"
19	U42367	2	Angle	-
20	14H1076	2	Nut	3/8"
21	T74407	1	TUBE	-
22	R72659	2	Clamp	(SUB FOR AH83545)
23	24H1308	1	Washer	13/32" X 1" X 0.134"
24	19H2676	2	Cap Screw	3/8" X 1"
25	14H826	1	Nut	1/2"
26	19H2898	1	Cap Screw	1/2" X 1-1/4"
27	T74405	2	BOOT	-
28	R72659	1	Clamp	(SUB FOR AH83545)
29	19H1648	2	Cap Screw	3/8" X 3/4"
30	R44302	1	Tie Band	-
31	T121288	2	Angle	(SUB FOR T79470, THIS APPLICATION)
32	T22571	4	Bolt	(SUB FOR T79471, THIS APPLICATION) (SUB FOR E58231)

310-MINUTE RESERVE CAPACITY BATTERIES WITH CABLES AND MOUNTING [02E09]
