160-MINUTE RESERVE CAPACITY BATTERIES WITH CABLES AND MOUNTING [02E07]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

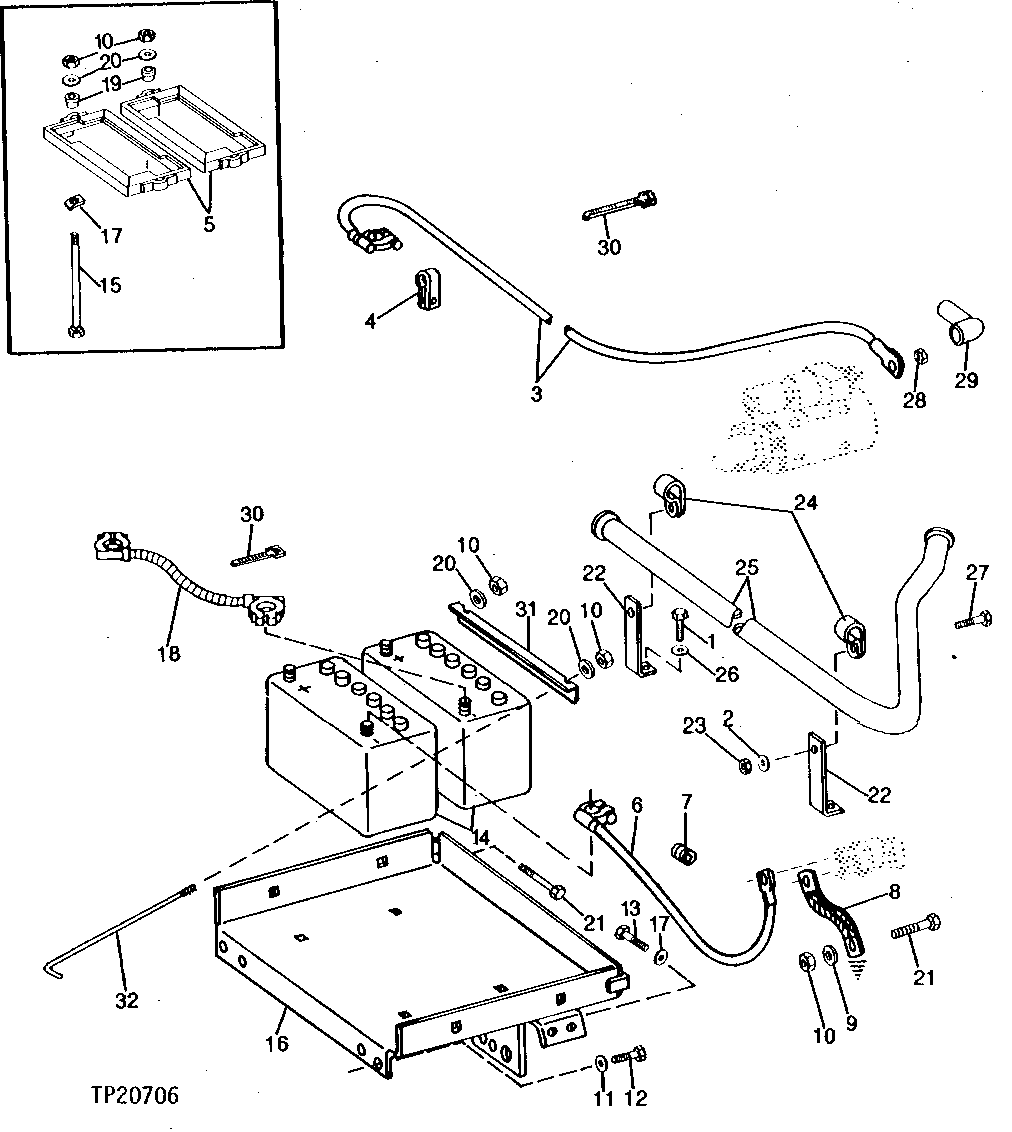

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H1648	2	Cap Screw	3/8" X 3/4"
2	24H1308	2	Washer	13/32" X 1" X 0.134"
3	AT72173	1	BATTERY CABLE	(SUB FOR AT72163)
4	R72659	1	Clamp	(SUB FOR AH83545)
5	AT11880	2	FRAME	-
6	AT74430	1	BATTERY CABLE	-
7	R41439	1	Grommet	-
8	AT38449	1	Ground Cable	-
9	24H1308	1	Washer	13/32" X 1" X 0.134"
10	14H786	5	Nut	1/4"
10	M40333	4	Lock Nut	-
11	T33177	1	WASHER	-
12	19H3472	4	Cap Screw	5/8" X 9-3/4"
13	19H2898	3	Cap Screw	1/2" X 1-1/4"
13	19H2993	1	Cap Screw	1/2" X 1-1/2"
14	-	1	Part 16	(MAKE FROM T119816 BULK MATERIAL, CUT TO LENGTH) (MAKE (2) THREE FOOT PARTS, INSTALL OVER BATTERY VENTS AND ROUTE TO RIGHT SIDE SO VENT TUBE EXIT AT REAR OF RIGHT FENDER)
14	R76477	1	Tie Band	(SUB FOR H77698, THIS APPLICATION) (SUB FOR A49232) (BAND BATTERY VENT HOSES TOGETHER AT RIGHT SIDE OF BATTERY AND BAND HOSES TO LARGE SUCTION HOSE)
14	TY21741	2	DRY CHARGED BATTERY	(SUB FOR AT29160 AND TY6106) (NO VENT TUBE HOLE)
14	TY6128	2	Dry Charged Battery	-
15	03H2208	4	Bolt	1/4" X 9-1/4"
16	AT112974	1	SUPPORT	-
16	AT46393	1	SUPPORT	-
17	U44618	4	PUSH NUT	-
18	AT72162	1	BATTERY CABLE	-
19	M643T	4	BUSHING	-
20	24H1287	4	Washer	9/32" X 5/8" X 0.065"
20	24H1288	4	Washer	9/32" X 1" X 1/16"
21	19H1648	1	Cap Screw	3/8" X 3/4"
22	U42367	2	Angle	-
23	14H1076	2	Nut	3/8"
24	R72659	2	Clamp	(SUB FOR AH83545)
25	T74407	1	TUBE	-
26	24H1308	1	Washer	13/32" X 1" X 0.134"
27	19H2676	2	Cap Screw	3/8" X 1"
28	14H826	1	Nut	1/2"
29	T74405	2	BOOT	-
30	R76477	1	Tie Band	(SUB FOR T44946 AND A49232) (SUB FOR H77698, THIS APPLICATION)
31	T121288	2	Angle	(SUB FOR T79470, THIS APPLICATION)
32	T22571	4	Bolt	(SUB FOR T79471, THIS APPLICATION) (SUB FOR E58231)
