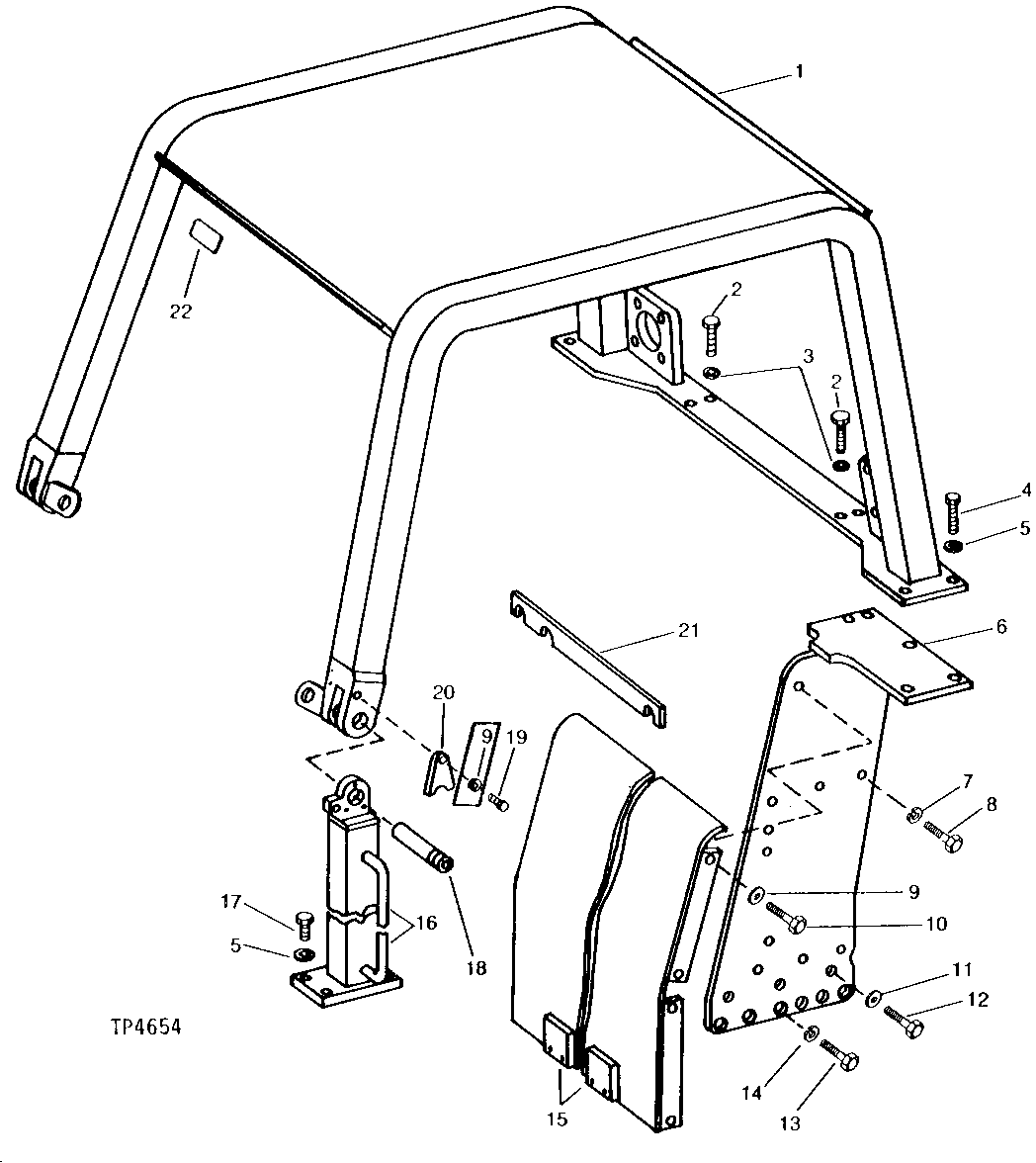

ROLL-OVER PROTECTIVE STRUCTURE AND REAR SUPPORTS [02G15]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT139671	1	ROPS	(FOR USE WITHOUT CAB) (NOT ILLUSTRATED) (INCLUDES T126947 AND T146097) (SUB FOR AT66986)
1	AT139670	1	ROPS	(FOR USE WITH CAB) (INCLUDES T126947) (SUB FOR AT66987)
2	19H2410	4	CAP SCREW	HS, SAE 8, 3/4" X 3"
3	B3627R	4	WASHER	-
4	19H3158	6	Cap Screw	HS, SAE 8, 3/4" X 2"
4	19H2369	6	Cap Screw	3/4" X 1"
5	R78019	14	Washer	(SUB FOR T21397)
6	AT74628	1	SUPPORT	L.H. REAR, (SUB FOR AT59545)
6	AT74627	1	SUPPORT	R. H. REAR (NOT ILLUSTRATED) (SUB FOR AT59544)
7	T10510	6	Washer	(USE IF AVAILABLE)
7	R78019	6	Washer	(SUB FOR T10510)
8	19H3158	6	Cap Screw	3/4" X 2"
9	T20168	10	Washer	-
10	19H2898	8	Cap Screw	HS, SAE 8, 1/2" X 1-1/4"
11	T21242	6	Washer	-
12	19H2735	6	Cap Screw	1/2" X 2"
13	19H3359	12	Cap Screw	HS, SAE 8, 1/2" X 2"
14	T34459	12	WASHER	-
15	AT142358	1	PLATE	(SUB FOR AT58790, AT74626 AND AT82931)
16	AT82074	1	PIVOT	L.H. LOWER, (SUB FOR AT53193 AND AT69811)
16	AT82073	1	PIVOT	R.H. LOWER (NOT ILLUSTRATED) (SUB FOR AT53192 AND AT69810)
17	19H2431	8	CAP SCREW	HS, SAE 8, 3/4" X 2-1/4"
18	T50192	2	PIN FASTENER	-
19	19H1781	2	CAP SCREW	1/2" X 3-1/2"
20	T50193	2	RETAINER	-
21	T61247	1	SHIM	-
22	T43705	1	SAFETY SIGN	-

ROLL-OVER PROTECTIVE STRUCTURE AND REAR SUPPORTS [02G15]
