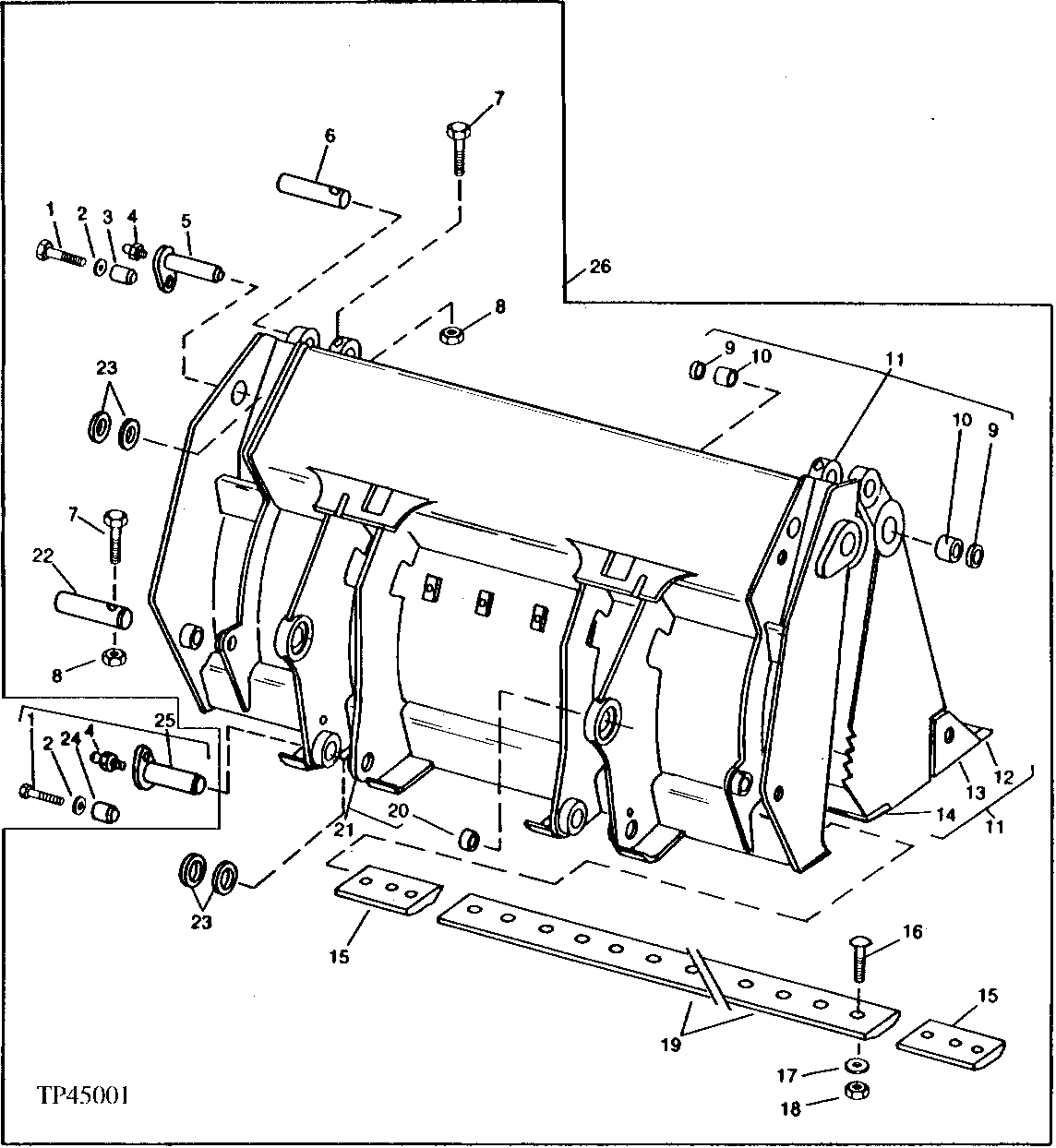

REPLACEMENT MULTI-PURPOSE BUCKET 1.6 M3 (2 CUBIC YARD) (AS REQUIRED) [03B15]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H2710	4	Cap Screw	HS, SAE 8, 5/8" X 1-3/4"
2	R20135	4	Washer	-
3	28H2499	2	Bushing	0.742" X 1.050" X 5/8"
4	JD7759	6	Lubrication Fitting	18" STRAIGHT
5	AT104538	2	PIN FASTENER	(SUB FOR AT81379)
6	T80734	2	PIN FASTENER	-
7	19H1993	4	CAP SCREW	1/2" X 5-1/4"
8	BP12214	4	Lock Nut	-
9	T63052	4	SEAL	-
10	T54081	4	Bushing	-
11	AT81367	1	MULTI-PURPOSE BUCKET	(IF CUTTING EDGE HAS 1-5/16" HOLES AND TEETH ARE REQUIRED, ALSO ORDER AT84494 BUSHING KIT)
12	14H1048	5	Nut	1", (TO BE USED WITH T131503 CUTTING EDGE)
12	12H234	5	LOCK WASHER	1", (TO BE USED WITH T131503 CUTTING EDGE)
12	T131503	1	DURA-MAX TM CUTTING EDGE	(BOLT ON CUTTING EDGE CAN ONLY BE USED WITH T104563 CUTTING EDGE)
12	T104563	1	DURA-MAX TM CUTTING EDGE	(SUB FOR T77775)
12	T101941	5	Bolt	1" X 3-1/2", (TO BE USED WITH T131503 CUTTING EDGE)
13	T77784	2	END PLATE	-
14	T80713	1	CUTTING EDGE	-
15	T52515	2	CUTTING EDGE	-
16	09H1756	13	BOLT	1" X 2-3/4"
17	12H234	13	LOCK WASHER	1"
18	14H1048	13	Nut	1"
19	T80712	1	CUTTING EDGE	-
20	T54081	2	Bushing	-
21	AT81366	1	MULTI-PURPOSE BUCKET	-
22	T80735	2	PIN FASTENER	-
23	T54087	1	WASHER	-
24	28H2499	2	Bushing	0.742" X 1.050" X 5/8"
25	AT76802	2	PIN FASTENER	-
26	ATR4020054	1	MULTI-PURPOSE BUCKET	(ORDER FROM ROCKLAND) (SUB FOR AT81464) 1.6 M3 (2 CU. YD.) MULTI-PURPOSE (INCLUDES BLADE CLAM, CUTTING EDGES, CLAM CYLINDER PINS, CLAM CYLINDER HYDRAULICS AND MISCELLANEOUS HARDWARE)

REPLACEMENT MULTI-PURPOSE BUCKET 1.6 M3 (2 CUBIC YARD) (AS REQUIRED) [03B15]
