Открытый узел

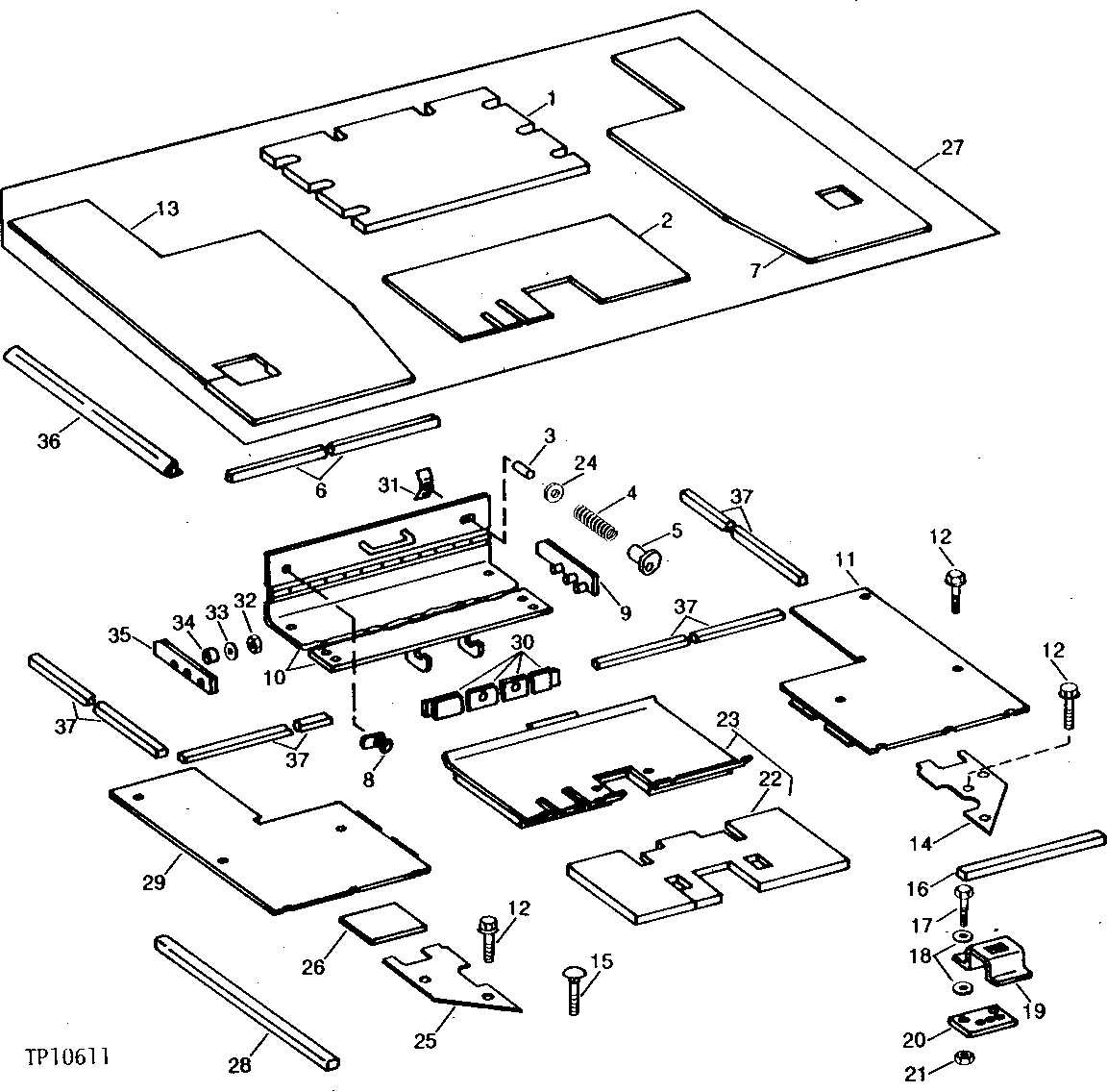

PLATFORM (WITHOUT CAB) (SERIAL NO. 700365- ) NOTE: SOME MACHINES BELOW LISTED SERIAL NO. MAY HAVE BEEN CHANGED TO CONFORM TO (SERIAL NO. 700365- ) [02H05]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 1	CENTER, (SUB AT74393)
2	-	1	Part 2	FRONT, (SUB AT74393)
3	34H266	1	Spring Pin	5/32" X 1"
4	T14057	1	SPRING	-
5	T31501	1	KNOB	-
6	-	1	Part 6	(MAKE FROM T58056)
7	-	1	Part 7	LEFT, (SUB AT74393)
8	AT42056	1	Lock	-
9	AT73547	1	STRIP	LEFT
10	AT73544	1	DOOR	-
11	AT74390	1	PLATFORM	OUTER LEFT
12	T53268	24	Screw	-
13	-	1	Part 13	RIGHT, (SUB AT74393)
14	AT84781	1	PLATE	FRONT OUTER, LEFT, (SUB FOR AT73914)
15	37H51	2	Screw	1/4" X 1/2"
16	T60906	2	RETAINER	-
17	19H3130	2	Cap Screw	5/16" X 1-3/4"
18	24H1136	4	Washer	11/32" X 11/16" X 0.065"
19	AT51478	1	COVER	(USE WITH LEVER STEERING)
19	T126073	1	COVER	(SUB FOR AT70724) (USE WITH PEDAL STEERING)
20	T52511	1	GROMMET	-
21	14H785	2	Nut	5/16"
22	T76207	1	ISOLATOR	-
23	AT84041	1	FOOTREST	(SUB FOR AT74387) TOEBOARD
24	24H1392	2	Washer	25/32" X 1-3/8" X 0.120"
25	AT84782	1	PLATE	FRONT INNER, RIGHT, (SUB FOR AT73915)
26	T57258	2	GUSSET	(USE WITHOUT ROPS)
27	AT74393	1	MAT	-
28	-	2	Part 29	(MAKE FROM AT56771 BULK MATERIAL, CUT TO LENGTH) (SUB FOR AT56771)
29	AT74389	1	PLATFORM	OUTER RIGHT
30	AT73548	1	STRIP	FRONT
31	T47585	1	CLAMP	-
32	14H812	8	NUT	3/8"
33	24M7233	8	WASHER	10.700 X 21 X 2.500 MM
34	28H1878	8	SPACER	3/8" X 3/8"
35	AT73546	1	STRIP	RIGHT
36	T56062	2	RETAINER	-
37	-	1	Part 38	(MAKE FROM T63949 BULK MATERIAL, CUT TO LENGTH)

PLATFORM (WITHOUT CAB) (SERIAL NO. 700365- ) NOTE: SOME MACHINES BELOW LISTED SERIAL NO. MAY HAVE BEEN CHANGED TO CONFORM TO (SERIAL NO. 700365- ) [02H05]
