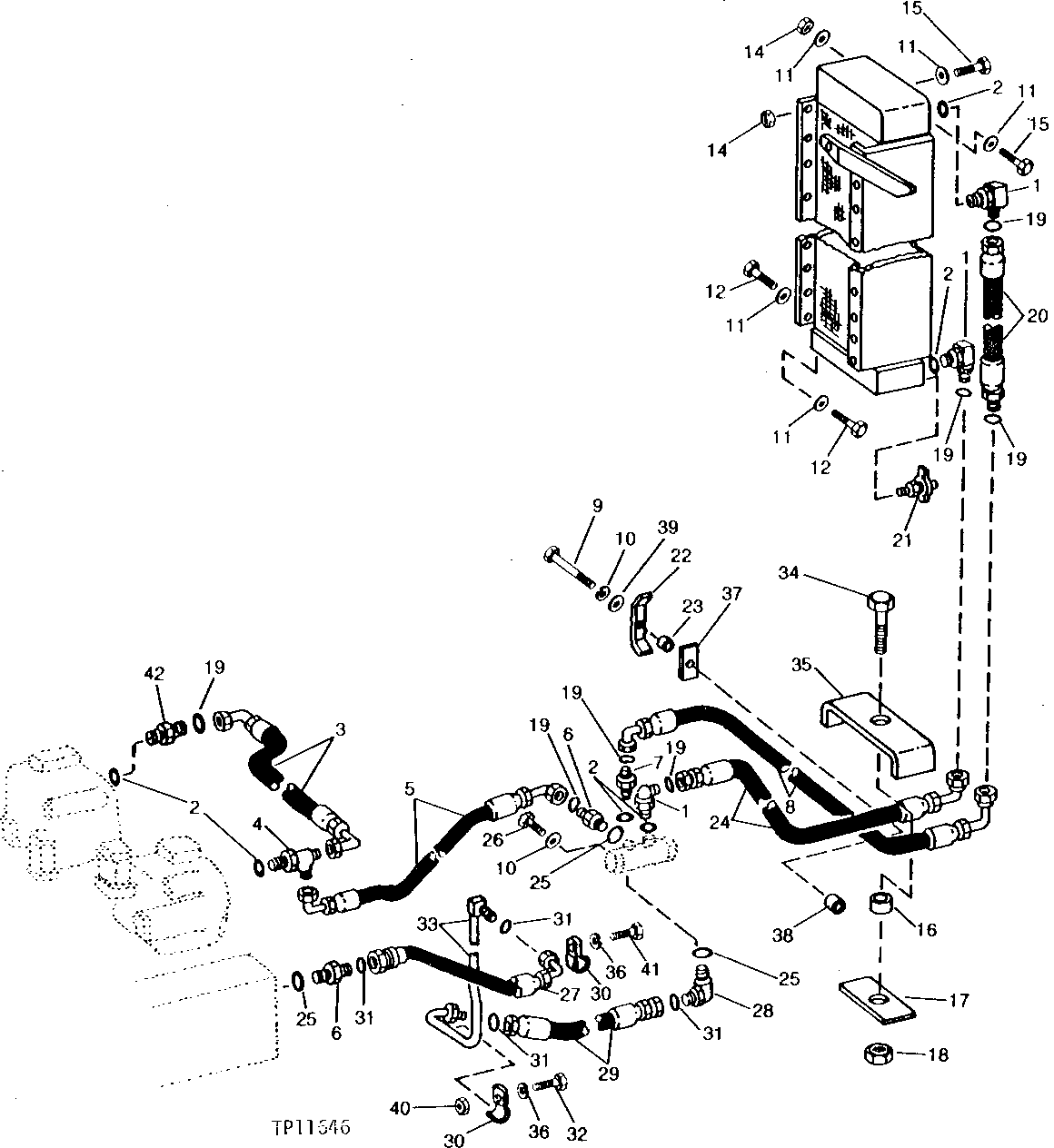

OIL COOLER AND BYPASS VALVE HYDRAULICS (SERIAL NO. 714981- ) [01G12]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	38H1037	3	Elbow Fitting	-
2	R29936	6	O-Ring	-
3	AT80414	1	HYDRAULIC HOSE - FABRICATE	1-7/16" X 578 MM (22-3/4") X 1-7/16"
4	38H1027	1	Tee Fitting	-
5	AT79783	1	HYDRAULIC HOSE - FABRICATE	1-7/16" X 1 336 MM (52-1/2") X 1-7/16"
6	38H1180	2	Adapter Fitting	-
7	38H1164	1	Adapter Fitting	-
8	AT79788	1	HYDRAULIC HOSE - FABRICATE	1-7/16" X 1 396 MM (55") X 1-7/16"
9	19H3404	1	Cap Screw	3/8" X 4"
10	12H304	4	Lock Washer	3/8"
11	24H1308	15	Washer	13/32" X 1" X 0.134"
12	19H2676	5	Cap Screw	3/8" X 1"
13	AT104826	1	OIL COOLER	(SUB FOR AT71941)
14	14H812	5	NUT	3/8"
15	19H3483	5	Cap Screw	3/8" X 1-1/8"
16	28H1720	1	Bushing	3/8" X 15/16"
17	T43358	1	Strap	(SUB FOR T43347)
18	T11234	1	Lock Nut	-
19	T76938	9	O-Ring	-
20	AT47096	1	HYDRAULIC HOSE - FABRICATE	(SUB FOR AT79792 AND AT66580)
21	AT13740	1	Drain Valve	-
22	U44385	1	CLAMP	-
23	28H3117	1	BUSHING	0.546" X 0.840" X 1-5/16", 1/2" X 1-7/16"
24	AT79787	1	HYDRAULIC HOSE - FABRICATE	1-7/16" X 1 257 MM (49-1/2") X 1-7/16"
25	U13639	3	O-Ring	-
26	19H2855	2	Cap Screw	3/8" X 3-1/4"
27	AT79784	1	HYDRAULIC HOSE	1-7/16" X 508 MM (20") X 1-7/16"
28	38H1325	1	Elbow Fitting	-
29	AT79786	1	HYDRAULIC HOSE - FABRICATE	1-7/16" X 476 MM (18-3/4") X 1-7/16"
30	R72659	2	Clamp	(SUB FOR AH83545)
31	T78612	4	O-Ring	-
32	19H2633	1	Cap Screw	3/8" X 1-1/2"
33	AT79789	1	LINE	-
34	19H1726	1	Cap Screw	3/8" X 2-1/4"
35	T27022	1	Clamp	-
36	12H304	2	Lock Washer	3/8"
37	T48730	1	STRAP	-
38	28H2531	1	Bushing	-
39	24H1682	1	Washer	13/32" X 7/8" X 0.120"
40	14H812	1	NUT	3/8"
41	19H2676	1	Cap Screw	3/8" X 1"
42	38H1216	1	Adapter Fitting	-
