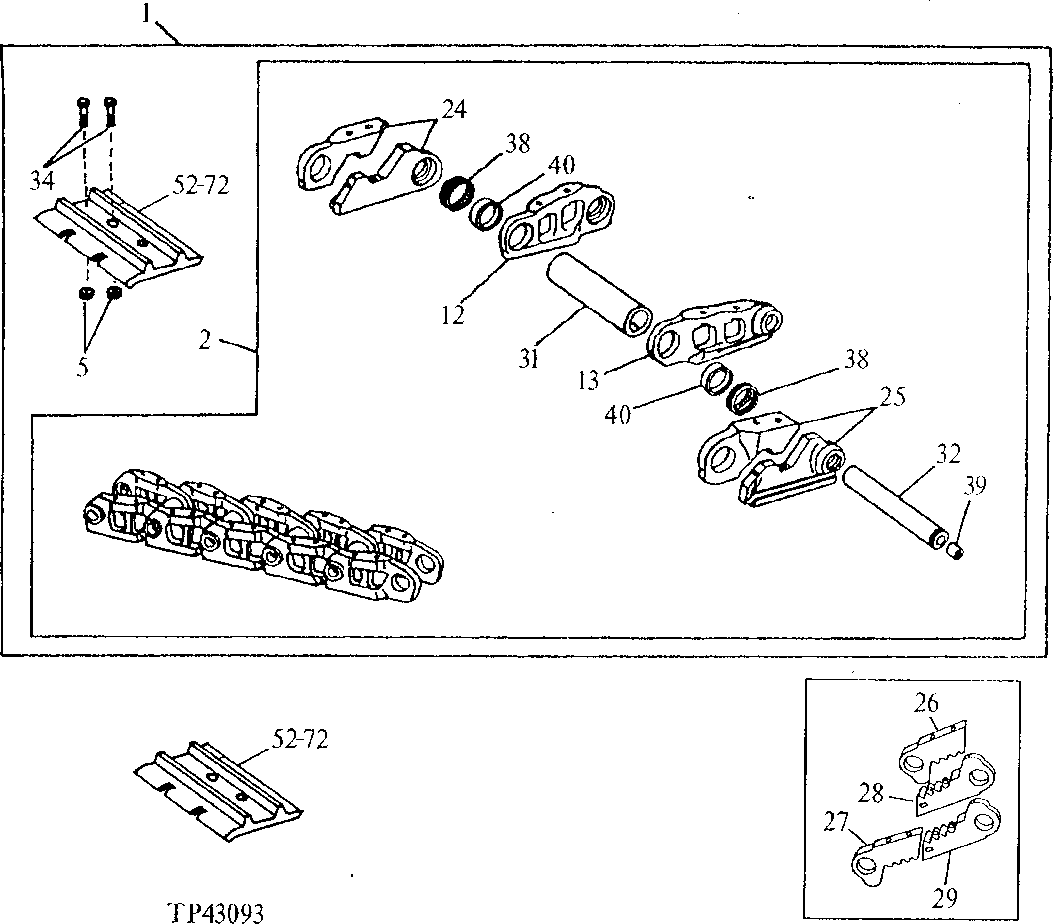

LUBRICATED CHAINS, 5/8", WITH STRUTTED LINKS - STD (40L) [01B18]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	2	Part 1	373MM (15") (40L) (INCLUDES SPLIT MASTER LINKS) ( AT148633 NO LONGER AVAILABLE) (SUB AT168466) (SUB FOR AT70801 AND AT83295)
2	-	1	Part 2	(40L) (INCLUDES SPLIT MASTER LINKS) ( AT70797 NO LONGER AVAILABLE) (SUB AT168467)
3	T43323	156	TRACK BOLT	(SUB FOR T45096)
4	T126081	4	Master Track Bolt	(SUB FOR T73613)
5	T45097	156	Nut	-
12	T70317	39	STRUTTED LINK-LH	-
13	T70316	39	STRUTTED LINK-RH	-
24	AT132893	1	MASTER TRACK LINK-SPLIT-LH	(ALTERNATE)
25	AT167510	1	MASTER TRACK LINK-SPLIT-RH	(ALTERNATE) (SUB FOR AT132892)
25	AT167511	1	MASTER TRACK LINK-SPLIT-LH	(SUB FOR AT132892)
26	T73611	1	MASTER HALF LINK-LH-BSH END	(ALTERNATE)
27	T73609	1	MASTER HALF LINK-RH-BSH END	(ALTERNATE)
28	T73610	1	MASTER HALF LINK-LH-PIN END	(ALTERNATE)
29	T73608	1	MASTER HALF LINK-RH-PIN END	(ALTERNATE)
31	T73603	40	BUSHING	-
32	T149292	40	Track Pin	(SUB FOR T73604)
38	AT112903	40	SEAL KIT	(CONTAINS 2 SEALS) (SUB FOR AT70803)
39	T106913	40	PLUG	(SUB FOR T74064)
40	T73607	80	Washer	-
52	T71905	39	DOUBLE BAR SHOE	373MM (15")
72	T73618	1	MASTER DOUBLE BAR SHOE	373MM (15")

LUBRICATED CHAINS, 5/8", WITH STRUTTED LINKS - STD (40L) [01B18]

Нет текстового описания
