FUEL INJECTION PUMP HYDRAULIC HEAD AND ROTOR GROUP (ROOSA-MASTER NO. DM4627MD2916) [01J01]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

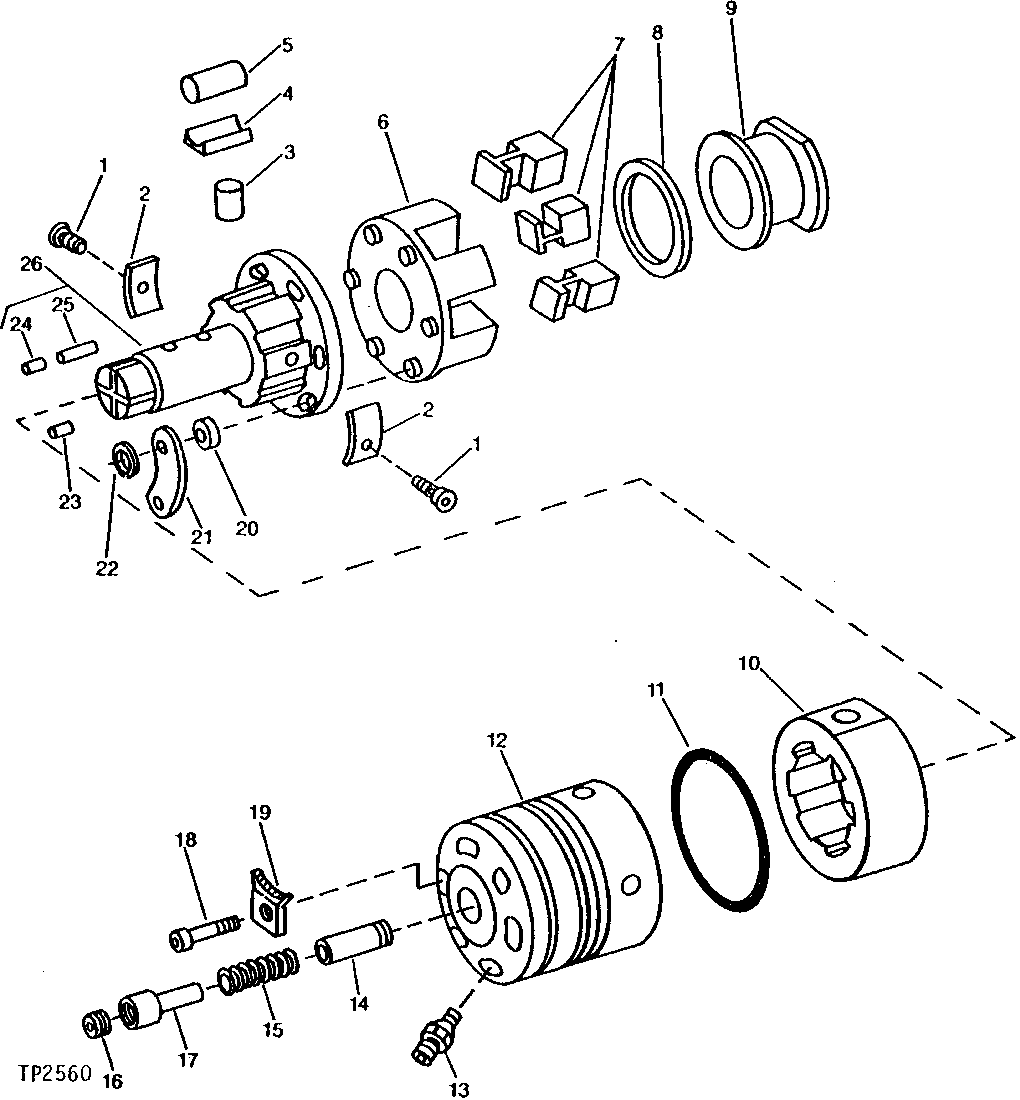

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R48506	2	SCREW	(POLISHED HEAD)
1	R48509	2	SCREW	-
2	R48505	2	SPRING	-
3	R57800	2	PLUNGER	(LONG) (ROTOR A)
3	R57801	2	PLUNGER	(LONG) (ROTOR B)
3	R57802	2	PLUNGER	(LONG) (ROTOR C)
3	R57803	2	PLUNGER	(LONG) (ROTOR D)
3	R57804	2	PLUNGER	(SHORT) (ROTOR A)
3	R57805	2	PLUNGER	(SHORT) (ROTOR B)
3	R57806	2	PLUNGER	(SHORT) (ROTOR C)
3	R57807	2	PLUNGER	(SHORT) (ROTOR D)
4	R60709	4	SHOE	(-15) (PREFERRED)
4	R57808	1	SHOE	(-20)
4	R57863	1	SHOE	(-10)
5	T11886	4	NEEDLE ROLLER	-
6	AR61993	1	RETAINER	-
7	R54239	6	WEIGHT	-
8	R54240	1	THRUST WASHER	-
9	R74314	1	SLEEVE	GOVERNOR THRUST (SUB FOR R65681)
10	R48531	1	RING	-
11	T11891	1	O-RING	(K)
12	-	1	Part 22	(SUB AR69429)
13	R57137	6	FITTING	-
14	R57798	1	VALVE	STANDARD
14	R58077	1	VALVE	OVERSIZE
15	R57799	1	SPRING	-
16	R57809	1	SCREW	-
17	R57810	1	STOP	-
18	R54261	1	SCREW	-
19	R67446	1	Washer	-
20	R54249	6	CUSHION	-
21	R54252	3	RETAINER	-
22	R54242	6	SNAP RING	(K)
23	T11926	2	SET SCREW	-
24	R30725	1	SCREW	-
25	R54626	1	DOWEL PIN	-
25	R63975	1	DOWEL PIN	(COLORED BLACK)
26	AR69429	1	HYDRAULIC HEAD AND ROTOR	-

FUEL INJECTION PUMP HYDRAULIC HEAD AND ROTOR GROUP (ROOSA-MASTER NO. DM4627MD2916) [01J01]
