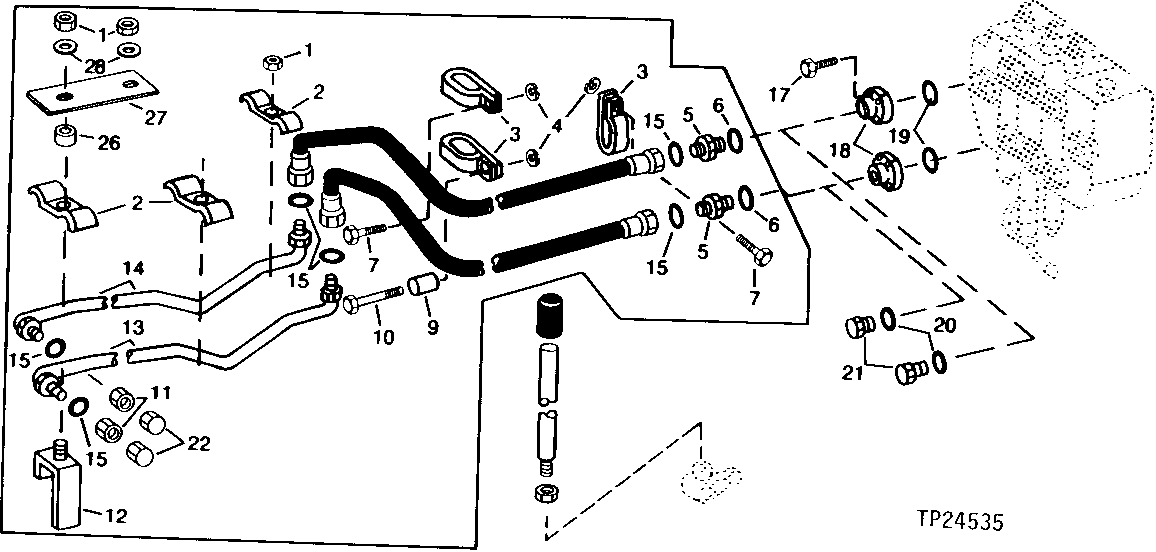

FRONT AUXILIARY HYDRAULIC LINES (SERIAL NO. 714981- ) (MULTI-PURPOSE BUCKET) [03E15]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	E50102	3	Lock Nut	(SUB FOR C744DN OR (3) M63440)
2	T38967	3	CLAMP	-
3	AH77869	3	Clip	-
4	12H304	3	Lock Washer	3/8"
5	38H1176	2	Adapter Fitting	-
6	R29936	2	O-Ring	-
7	19H2676	2	Cap Screw	HS, SAE 8, 3/8" X 1"
8	AT132818	2	HYDRAULIC HOSE - FABRICATE	13/16" X 2 769 MM (109") X 13/16", (SUB FOR AT79800)
9	H87206	1	Spacer	-
10	19H3404	1	Cap Screw	3/8" X 4"
11	38H1418	2	Fitting	(SUB FOR 38H1142)
12	AT64386	1	BRACKET	-
13	AT79797	1	LINE	-
14	AT79798	1	TUBE	-
15	T77857	6	O-Ring	-
16	14H821	1	Nut	5/8"
17	19H3124	8	Screw	3/8" X 1-1/2"
18	T60983	2	Flange Fitting	PORT FLANGE
19	U12037	2	O-Ring	(SUB FOR T72889)
20	R29936	2	O-Ring	-
21	R36636	2	Drain Plug	(WITHOUT AUXILIARY EQUIPMENT)
22	38H1356	2	Tube Nut	(SUB FOR 38H1121)
23	T37058	1	GRIP	(SUB FOR AP17808, THIS APPLICATION)
23	-	1	Part 24	(TO HOLD GRIP ON AUXILIARY LEVER)
24	T120386	1	ROD	(SUB FOR T48087) (ALSO ORDER T37058)
25	AT79810	1	MOUNTING PARTS	(ALSO INCLUDES T67567 LABEL) (HYDRAULICS FOR SELECTOR VALVE)
26	28H1577	1	Bushing	0.622" X 0.840" X 1"
27	T112078	1	STRAP	-
28	24H1311	1	Washer	13/32" X 1-1/4" X 0.220"

FRONT AUXILIARY HYDRAULIC LINES (SERIAL NO. 714981- ) (MULTI-PURPOSE BUCKET) [03E15]
