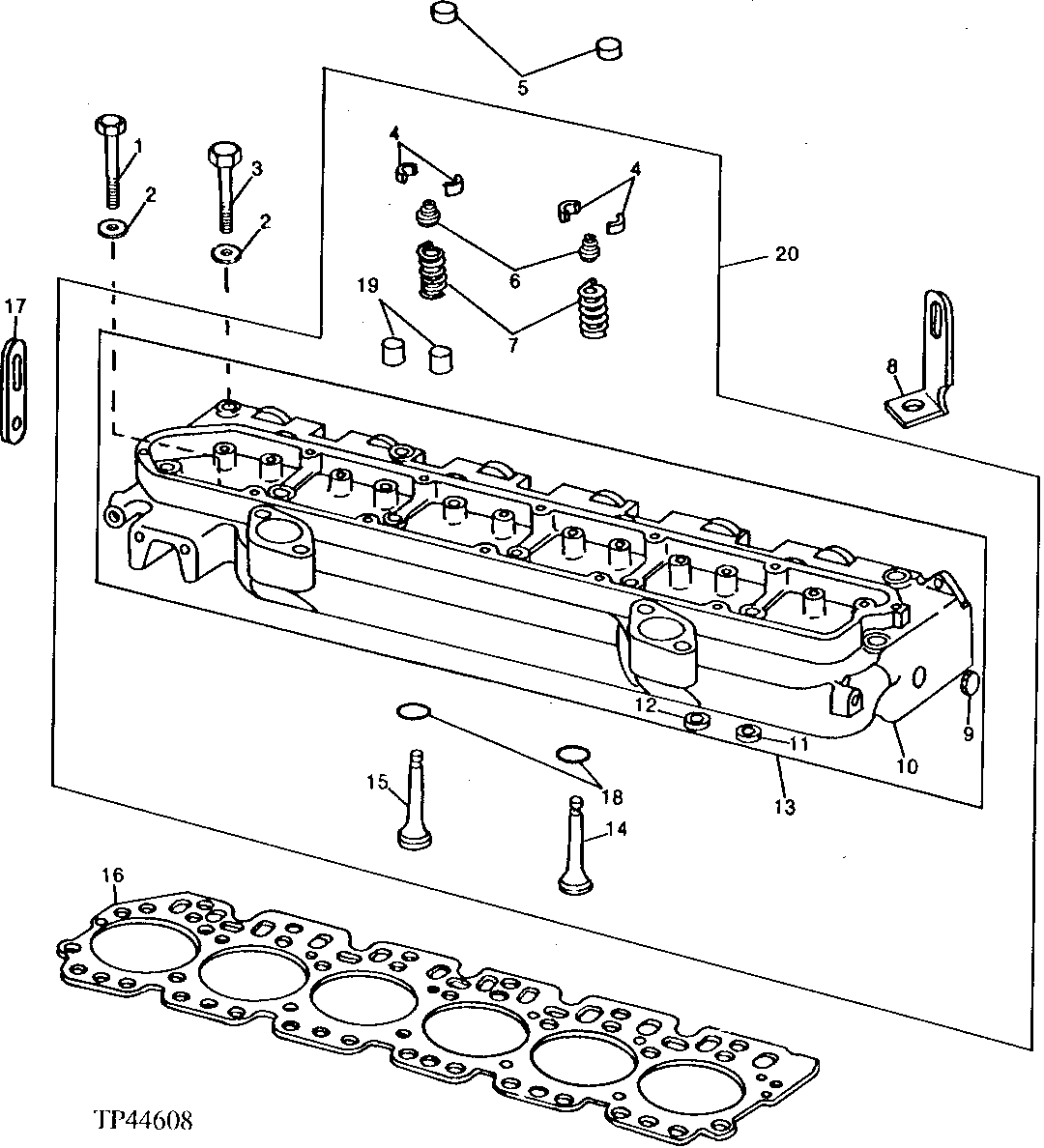

CYLINDER HEAD, HEAD GASKET AND VALVES [01I15]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R85363	6	Cap Screw	(SUB FOR R78558) 1/2" X 4-1/2" (USE WITH RE25612 AND RE31657 SHORT BLOCKS)
1	R85363	6	Cap Screw	(SUB FOR T20182 AND R78558) 1/2" X 4-1/2" (USE WITH RE19127 AND RE19876 SHORT BLOCK)
2	T20168	26	Washer	(DO NOT USE WITH R85363)
3	R53223	20	CAP SCREW	1/2" X 4-1/4" (USE WITH RE19127 AND RE19876 SHORT BLOCK)
3	R85363	20	Cap Screw	(SUB FOR R78558) 1/2" X 4-1/2" (USE WITH RE25612 AND RE31657 SHORT BLOCKS)
4	T20077	24	Retainer	-
5	T20129	12	Cap	-
6	RE11410	12	Rotator	(SUB FOR AR41006, THIS APPLICATION)
7	R26125	12	Spring	-
8	-	1	Part 10	-
9	A3910R	1	PLUG	-
9	CD16284	1	Plug	-
10	-	1	Part 13	(SUB RE56544)
11	R73064	6	VALVE SEAT INSERT	INTAKE
12	R73065	6	INSERT	EXHAUST
13	-	1	Part 16	(MARKED R61035) (SUB RE56544) (AR96841 NO LONGER AVAILABLE)
14	R89226	6	EXHAUST VALVE	STANDARD, (SUB FOR R73063) (ALSO ORDER R87627)
14	R89227	6	EXHAUST VALVE	0.08 MM (.003") OVERSIZE STEM, (SUB FOR R76539) (ALSO ORDER R87627)
14	R89228	6	EXHAUST VALVE	0.38 MM (.015") OVERSIZE STEM, (SUB FOR R76541) (ALSO ORDER R87627)
14	R89229	6	EXHAUST VALVE	0.76 MM (.030") OVERSIZE STEM, (SUB FOR R76543) (ALSO ORDER R87627)
15	R83071	6	INTAKE VALVE	STANDARD, (SUB FOR R72611)
15	R89223	6	INTAKE VALVE	0.08 MM (.003") OVERSIZE STEM, (SUB FOR R76538 AND R88174) (ALSO ORDER R87627)
15	R89224	6	INTAKE VALVE	0.38 MM (.015") OVERSIZE STEM, (SUB FOR R76540 AND R88175) (ALSO ORDER R87627)
15	-	6	Part 24	( R89225 NO LONGER AVAILABLE) 0.76 MM (.030") OVERSIZE STEM, (SUB FOR R76542 AND R88176) (ALSO ORDER R87627)
16	R91880	1	GASKET	(SUB FOR R73429 AND R80244)
17	-	1	Part 26	-
18	R87627	1	O-RING	(USE WITH AR96841)
19	R110524	12	Seal	(USE WITH RE56544)
20	RE56544	1	CYLINDER HEAD	-

CYLINDER HEAD, HEAD GASKET AND VALVES [01I15]
