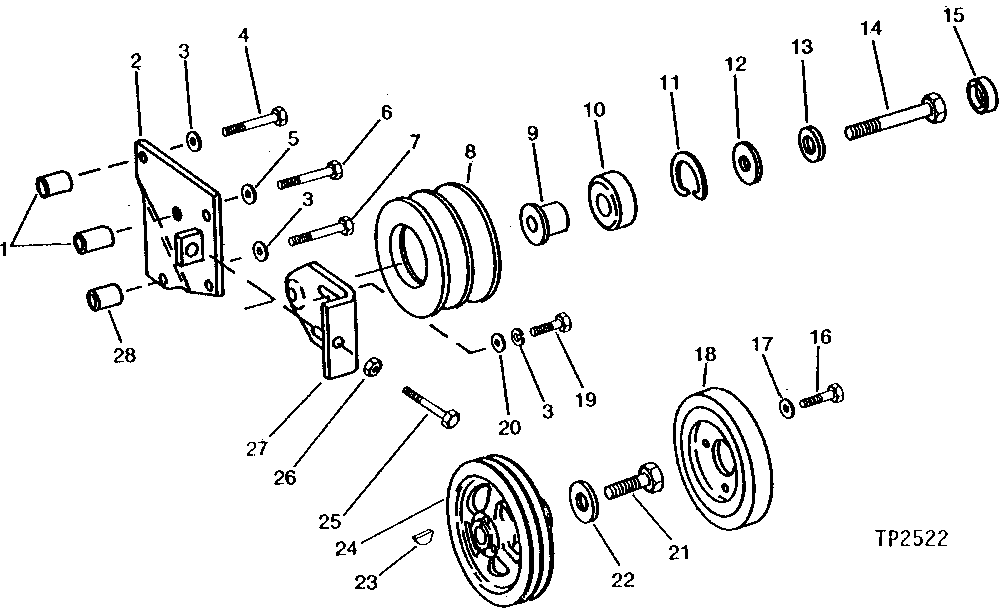

CRANKSHAFT PULLEY, CRANKSHAFT DAMPENER AND FAN DRIVE [01K08]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	28H2547	2	Spacer	0.423" X 0.675" X 1"
2	AR96394	1	BRACKET	-
3	12H304	4	Lock Washer	3/8"
4	19H3175	1	Cap Screw	3/8" X 3-5/8"
5	12H324	1	WASHER	3/8" EXTERNAL TOOTH
6	19H3496	1	CAP SCREW	3/8" X 3-5/8"
7	19H1912	1	Cap Screw	3/8" X 3-1/2"
8	T105390	1	IDLER	(SUB FOR R70376)
9	R70377	1	HUB	-
10	JD8670	1	BALL BEARING	-
11	R66072	1	SNAP RING	-
12	AR92593	1	SEAL	-
13	24M7226	1	Washer	13 X 35 X 5 MM
14	19H2055	1	CAP SCREW	7/16" X 2-1/4"
15	R66077	1	PLUG	-
16	19H3217	4	Cap Screw	3/8" X 1-3/4"
17	R42729	4	Washer	-
18	RE12824	1	TORSIONAL DAMPER	(SUB FOR AR102195)
19	19H2676	2	Cap Screw	3/8" X 1"
20	24H1309	2	Washer	13/32" X 1-1/16" X 0.120"
21	19H2993	1	Cap Screw	1/2" X 1-1/2"
22	T20217	1	Washer	-
23	26H27	1	Shaft Key	5/16" X 1-1/8"
24	R85197	1	PULLEY	(SUB FOR R60613)
24	R85198	1	PULLEY	(FRENCH NOISE PACKAGE) (SUB FOR R74239) (ALSO ORDER AT71002)
25	19H3178	1	Cap Screw	1/2" X 4-1/2"
26	14H971	1	NUT	1/2"
27	AR96395	1	SUPPORT	-
28	28H3339	1	Spacer	3/8" X 1"

CRANKSHAFT PULLEY, CRANKSHAFT DAMPENER AND FAN DRIVE [01K08]

Нет текстового описания
