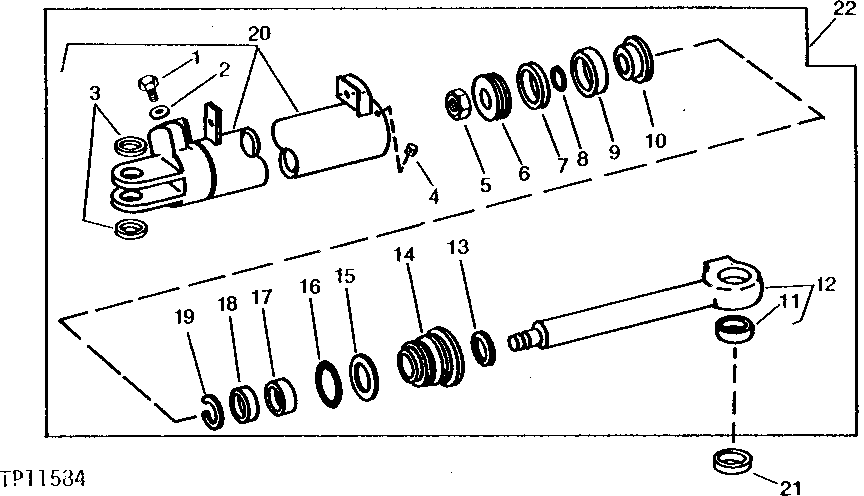

BUCKET CYLINDER (SERIAL NO. -746837) [03D07]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R27094	1	Drain Plug	-
2	R26286	1	O-Ring	-
3	T79673	2	WASHER	-
4	22H1077	1	SET SCREW	1/4" X 5/16"
5	U10750	1	LOCK NUT	-
6	R68341	1	PISTON	-
7	U17225	1	WEAR RING	(K)
8	U10289	1	O-Ring	(K)
9	T37379	1	PACKING	(K)
10	R68342	1	PISTON	(SUB R80786, RE14094 AND RE14208)
11	T48365	1	BUSHING	-
12	AR89002	1	ROD	-
13	U11022	1	SEAL	(K)
14	R82107	1	HYDR. CYLINDER ROD GUIDE	(SUB FOR R68338)
15	R79001	1	Back-Up Ring	(K) (SUB FOR T42552, THIS APPLICATION)
16	P46765	1	O-RING	(K)
17	U42716	1	WEAR RING	(K)
18	R76790	1	PACKING	(K) (SUB FOR T35851)
19	W11229	1	RING	-
20	RE17793	2	BARREL	(SUB FOR AT56683 AND AT79564)
21	T48367	2	Seal	REPAIR, (SUB FOR AR99791)
22	-	1	Part 22	(L.H.) ( AR88999, AT79501 OR RE31525, NO LONGER AVAILABLE (SUB RE33229) (ALSO ORDER T43358 AND (2) T105153)
22	-	1	Part 23	(AR88999,AT79501,RE31525 NO LONGER AVAILABLE) (R.H.) (FOR UNITS BUILT PRIOR TO SERIAL NUMBER 746838 ORDER INDIVIDUAL SERVICE PARTS)(FOR UNITS BUILT AFTER SERIAL NUMBER 746837 ORDER RE33229)

BUCKET CYLINDER (SERIAL NO. -746837) [03D07]
