Открытый узел

VALVE SECTION, SAW

VALVE SECTION, SAW

VALVE SECTION, SAW

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

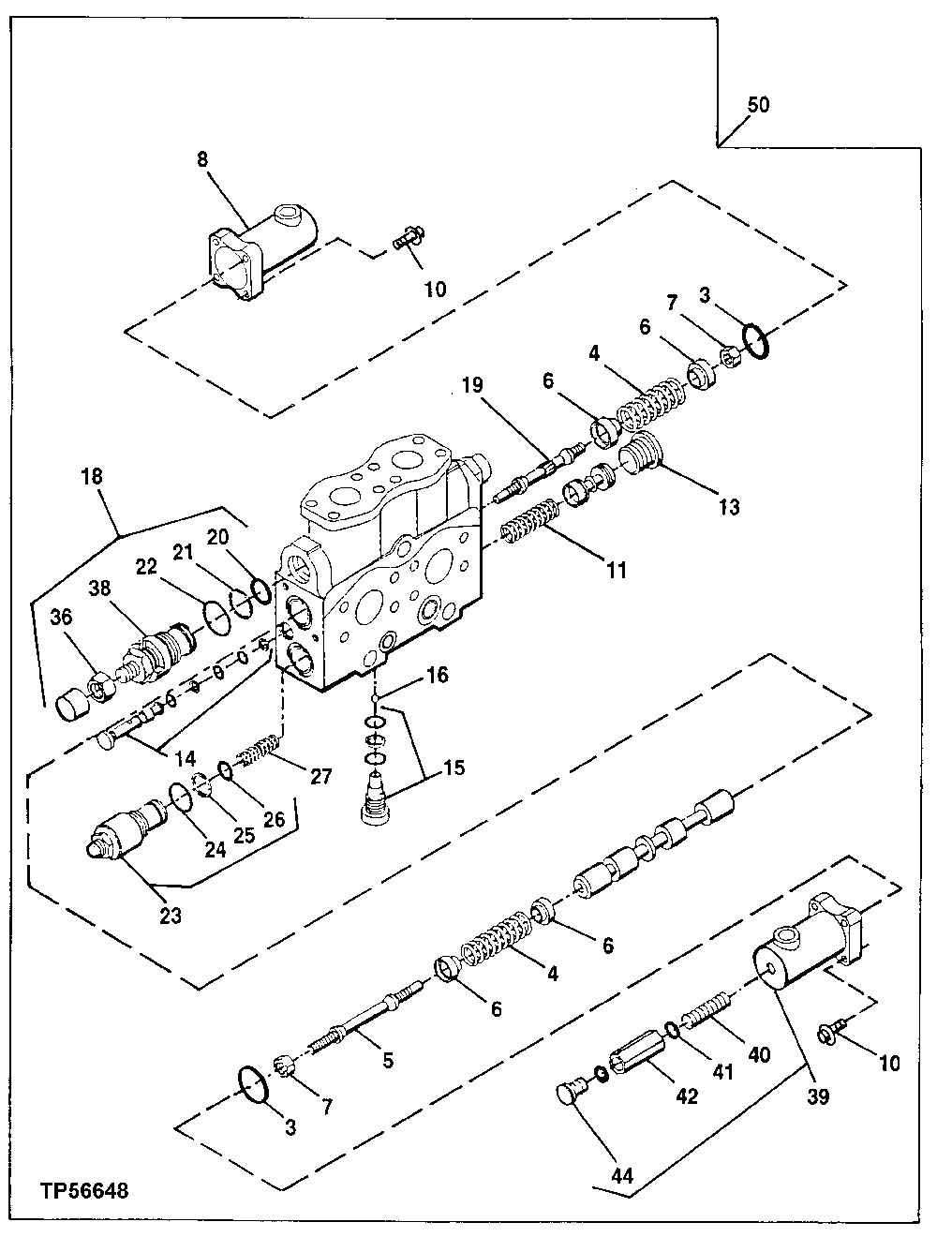

VALVE SECTION, SAW

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
3	U11326	2	O-Ring	(<service-part>AT205115</service-part> SECTION SEAL KIT (PARTIAL KIT SHOWN))
4	AT181901	2	Spring	(SUB FOR AT205223)
5	AT205122	1	Coupling	-
6	AT205422	4	Retainer	-
7	AT205054	2	Nut	-
8	AT251038	1	Valve Cover	(SUB FOR AT205279 AND AT181908)
10	AT251039	4	Bolt	(SUB FOR AT205056)
11	AT205224	1	Spring	-
13	AT205092	1	Fitting Plug	-
14	AT181905	1	Valve Spool	(SUB FOR AT205019)
14	AT181899	1	Seal Kit	PRIMARY, (SUB FOR AT179526)
15	AT181906	1	Valve Spool	(SUB FOR AT205093)
15	AT181900	1	Seal Kit	SECONDARY, (SUB FOR AT179527)
16	AT205300	1	Ball	-
18	AT175045	2	Pressure Relief Valve	-
19	AT205123	1	Coupling	-
20	-	2	Part 17	(<service-part>AT175027</service-part> RELIEF VALVE SEAL KIT (PARTIAL KIT SHOWN))
21	-	2	Part 18	(<service-part>AT175027</service-part> RELIEF VALVE SEAL KIT (PARTIAL KIT SHOWN))
22	-	2	Part 19	(<service-part>AT175027</service-part> RELIEF VALVE SEAL KIT (PARTIAL KIT SHOWN))
23	AT205333	1	Pressure Relief Valve	-
24	-	1	Part 21	(<service-part>AT205116</service-part> COMPENSATOR SEAL KIT (PARTIAL KIT SHOWN))
25	-	1	Part 22	(<service-part>AT205116</service-part> COMPENSATOR SEAL KIT (PARTIAL KIT SHOWN))
26	-	1	Part 23	(<service-part>AT205116</service-part> COMPENSATOR SEAL KIT (PARTIAL KIT SHOWN))
27	AT205225	1	Spring	-
36	-	2	Part 25	(<service-part>AT175027</service-part> RELIEF VALVE SEAL KIT (PARTIAL KIT SHOWN))
38	-	2	Part 26	(<service-part>AT175027</service-part> RELIEF VALVE SEAL KIT (PARTIAL KIT SHOWN))
39	AT251037	1	Housing	(SUB FOR AT205252 AND AT181902)
40	AT205065	1	Stud	-
41	-	1	Part 29	( AT205284 NO LONGER AVAILABLE)
42	-	1	Part 30	( AT205026 NO LONGER AVAILABLE), (SUB AT181907)
44	AT205044	1	Fitting Plug	-
50	AT181914	1	Hyd Actuated Control Valve	(SUB FOR AT205356 AND AT175044)
