Открытый узел

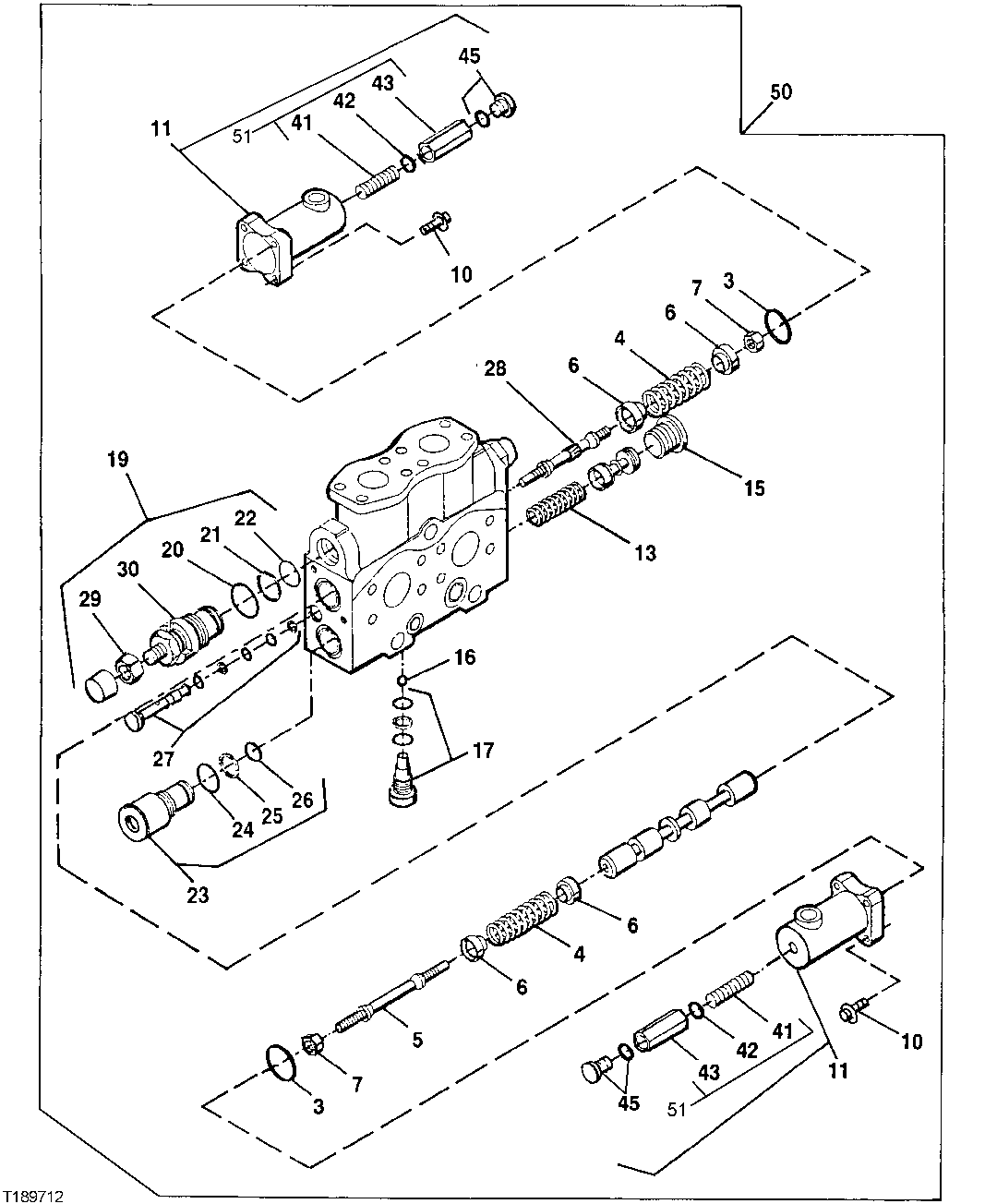

VALVE SECTION,KNIVES,SIDE TILT,ROLLERS(OPEN/CLOSE)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
3	U11326	2	O-Ring	(<service-part>AT205115</service-part> SECTION SEAL KIT (PARTIAL KIT SHOWN))
4	AT181901	2	Spring	(SUB FOR AT205223)
5	AT205122	1	Coupling	-
6	AT205422	4	Retainer	-
7	AT205054	2	Nut	-
10	AT251039	4	Bolt	(SUB FOR AT205056)
11	AT251037	2	Housing	(SUB FOR AT205252 AND AT181902)
13	AT205224	1	Spring	-
15	AT205092	1	Fitting Plug	-
16	AT205300	1	Ball	-
17	AT181906	1	Valve Spool	(SUB FOR AT205093)
17	AT181900	1	Seal Kit	SECONDARY, (SUB FOR AT179527)
19	AT175028	2	Pressure Relief Valve	-
20	-	2	Part 14	(<service-part>AT175027</service-part> RELIEF VALVE SEAL KIT (PARTIAL KIT SHOWN))
21	-	2	Part 15	(<service-part>AT175027</service-part> RELIEF VALVE SEAL KIT (PARTIAL KIT SHOWN))
22	-	2	Part 16	(<service-part>AT175027</service-part> RELIEF VALVE SEAL KIT (PARTIAL KIT SHOWN))
23	AT205333	1	Pressure Relief Valve	-
24	-	1	Part 18	(<service-part>AT205116</service-part> COMPENSATOR SEAL KIT (PARTIAL KIT SHOWN))
25	-	1	Part 19	(<service-part>AT205116</service-part> COMPENSATOR SEAL KIT (PARTIAL KIT SHOWN))
26	-	1	Part 20	(<service-part>AT205116</service-part> COMPENSATOR SEAL KIT (PARTIAL KIT SHOWN))
27	AT181905	1	Valve Spool	(SUB FOR AT205019)
27	AT181899	1	Seal Kit	PRIMARY, (SUB FOR AT179526)
28	AT205123	1	Coupling	-
29	-	2	Part 24	(<service-part>AT175027</service-part> RELIEF VALVE SEAL KIT (PARTIAL KIT SHOWN))
30	-	2	Part 25	(<service-part>AT175027</service-part> RELIEF VALVE SEAL KIT (PARTIAL KIT SHOWN))
41	-	2	Part 26	( AT205065 NO LONGER AVAILABLE), (SUB AT181907)
42	-	2	Part 27	( AT205284 NO LONGER AVAILABLE), (SUB AT181907)
43	-	2	Part 28	( AT205026 NO LONGER AVAILABLE), (SUB AT181907)
45	AT205044	2	Fitting Plug	-
50	AT181932	3	Hyd Actuated Control Valve	(SUB FOR AT176416)
51	AT181907	2	Stud	-

VALVE SECTION,KNIVES,SIDE TILT,ROLLERS(OPEN/CLOSE)
