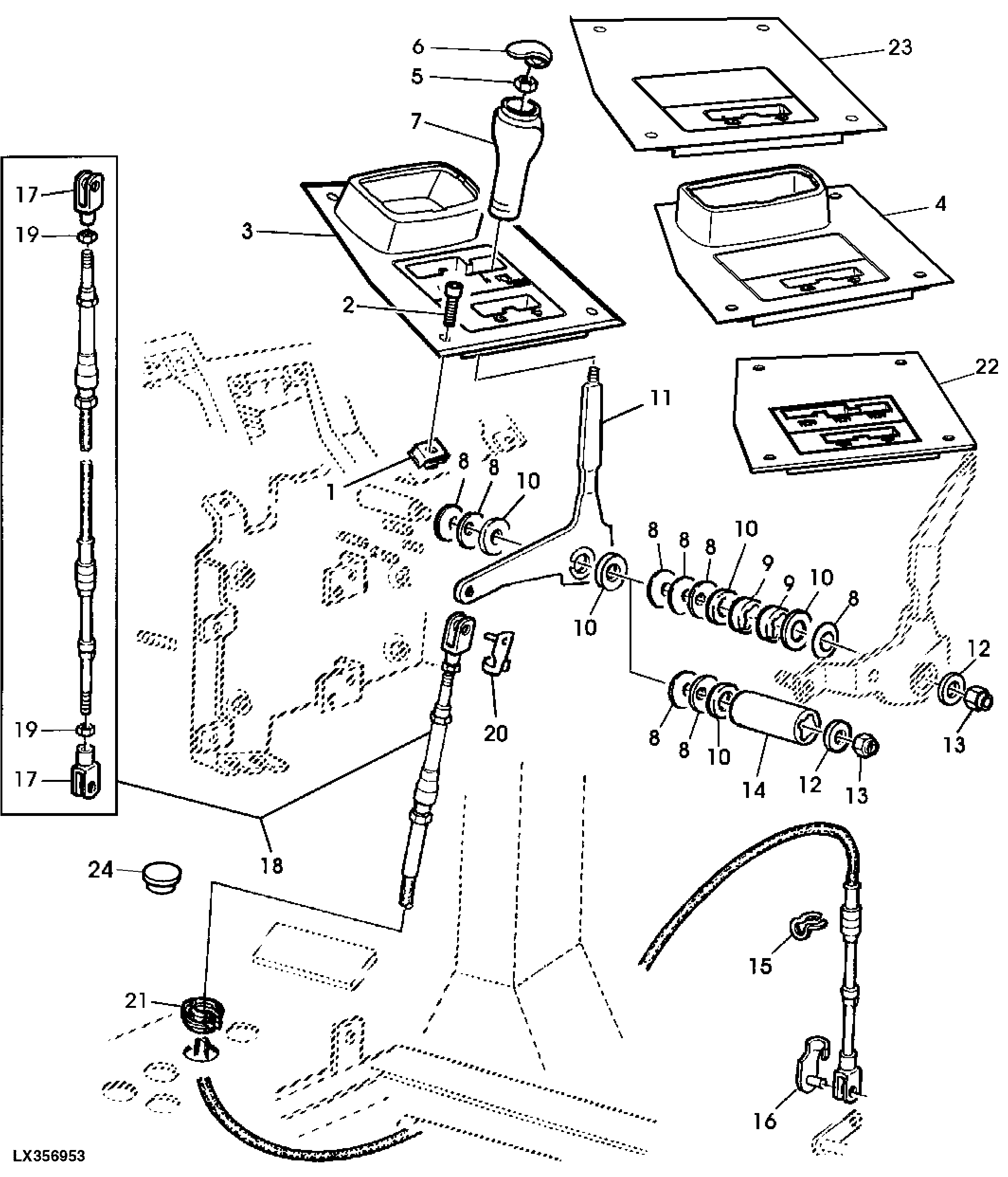

OPERATING COMPONENTS, HANDSHIFT REAR PTO

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL115814	4	Nut	-
2	L115292	4	Bolt	(WITH CAB)
2	19M8866	4	Screw	(WITH OPEN OPERATOR'S STATION) M5 X 16
3	L170733	1	Panel	(WITH CAB) (WITH 3-SPEED PTO)
4	L170731	1	Panel	(WITH CAB) (WITHOUT HANDSHIFT PTO)
5	14M7396	1	Lock Nut	M8, (10.9)
6	L78981	1	Insert	-
7	L77747	1	Knob	-
8	L112676	1	Disk Spring	-
9	L113060	1	Bushing	-
10	24M7421	1	Washer	16.300 X 32 X 2 mm
11	AL113523	1	Lever	-
12	24M7101	1	Washer	11 X 34 X 3 mm
13	14M7167	1	Lock Nut	M10
14	L113061	1	Bushing	(WITHOUT CREEPER TRANSMISSION)
15	L217783	1	Snap Ring	SUB FOR L219493, L79076 APPL
16	AL79051	1	Pin Fastener	-
17	L80052	2	Yoke	-
18	AL173943	1	Push Pull Cable	(WITH PICKUP HITCH INSTALLATION)
18	AL212876	1	Push Pull Cable	SUB FOR AL173944
19	14M7272	2	Nut	M6
20	AL79051	1	Pin Fastener	(WITH 3-SPEED PTO)
20	AL79050	1	Pin Fastener	(WITH 2-SPEED PTO) ORDER 45M7101
20	45M7101	1	Spring Locking Pin	(WITH 2-SPEED PTO)
21	L76801	1	Grommet	-
22	L111368	1	Panel	(WITH OPEN OPERATOR'S STATION)
23	L80085	1	Panel	(WITH OPEN OPERATOR'S STATION) (WITHOUT HANDSHIFT PTO)
24	99M7011	1	Plug	-

OPERATING COMPONENTS, HANDSHIFT REAR PTO
