Открытый узел

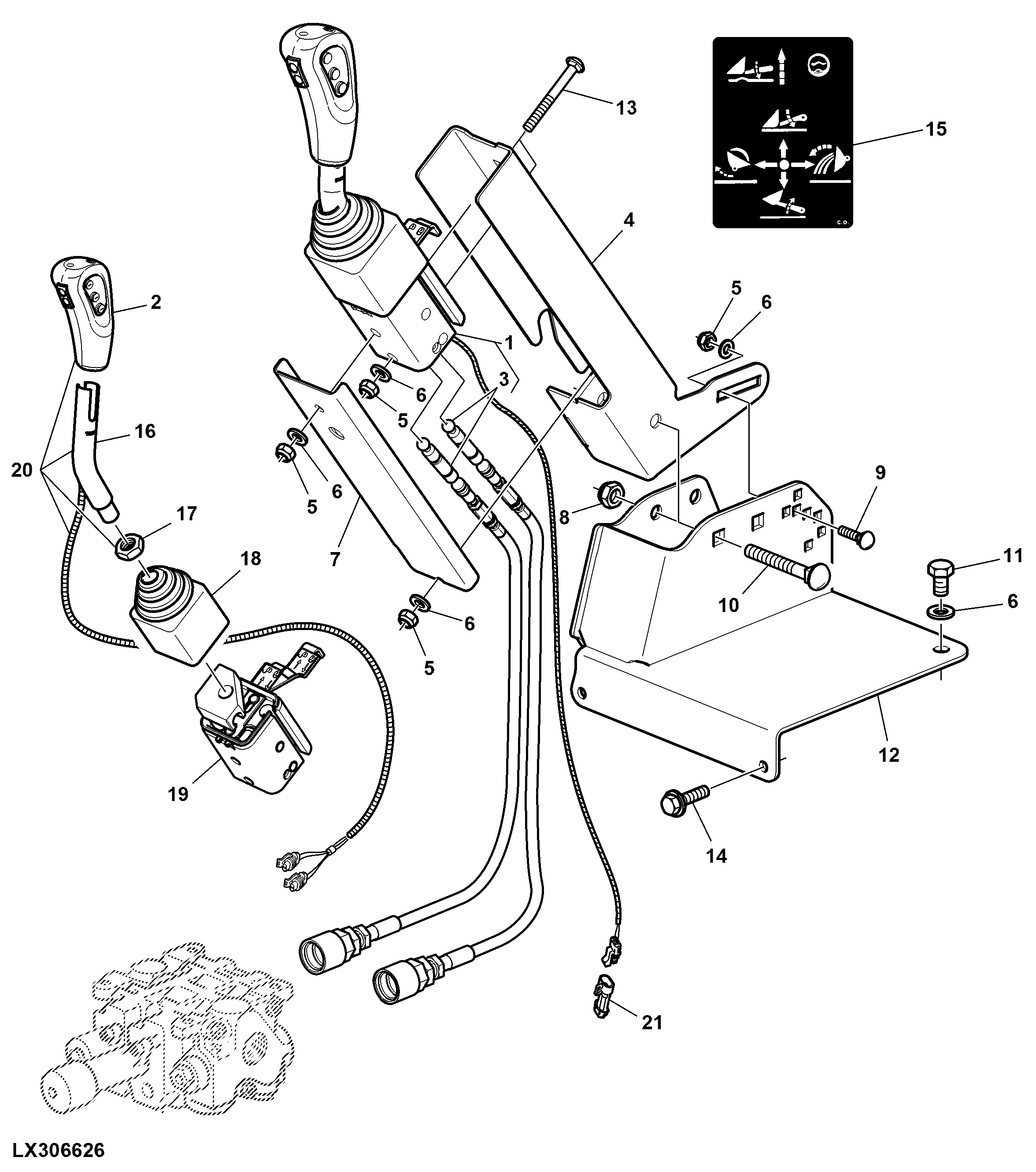

MULTI-FUNCTION LEVER FOR M-ICV (MOUNTED ON FLOOR)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL179892	1	Control	(OPEN OPERATOR'S STATIONS STANDARD VERSION)
1	AL179893	1	Control	(OPEN OPERATOR'S STATION LOW PROFILE)
1	AL164782	1	Control	(WITH TWO FUNCTIONS)
2	DC206318	1	Grip	-
3	AL179899	2	Push Pull Cable	(OPEN OPERATOR'S STATIONS STANDARD VERSION)
3	AL179900	2	Push Pull Cable	(OPEN OPERATOR'S STATION LOW PROFILE)
4	AL164636	1	Bracket	(OPEN OPERATOR'S STATION LOW PROFILE) (OPEN OPERATOR'S STATIONS STANDARD VERSION)
4	AL164637	1	Bracket	(WITH CAB)
5	14M7327	4	Lock Nut	M8
6	24M7095	1	Washer	8.400 X 15 X 1.600 mm
7	AL164639	1	Shield	(OPEN OPERATOR'S STATION LOW PROFILE) (OPEN OPERATOR'S STATIONS STANDARD VERSION)
7	AL164638	1	Shield	(WITH CAB)
8	14M7168	1	Lock Nut	M12
9	03M7184	1	Bolt	M8 X 20
10	03M7248	1	Bolt	M12 X 90
11	19M7139	2	Cap Screw	M8 X 20
12	AL177603	1	Floor	(WITH CAB)
12	AL164634	1	Bracket	(OPEN OPERATOR'S STATION LOW PROFILE)
12	AL164633	1	Bracket	(OPEN OPERATOR'S STATIONS STANDARD VERSION)
13	03M7267	2	Bolt	M8 X 80
14	AL151524	2	Screw With Washer	-
15	W31909	1	Instruction Plate	-
16	L158837	1	Pipe	-
17	CC51717	1	Nut	-
18	CC51719	1	Boot	-
19	AL172267	1	Control	-
20	AL178561	1	Grip	(WITH DIVERTER) (WITH TWO FUNCTIONS)
20	AL178566	1	Grip	(WITH HI-LOW SWITCH) (THREE FUNCTIONS)
20	AL178564	1	Grip	(WITH DIVERTER) (THREE FUNCTIONS)
20	AL178563	1	Grip	(WITH DIVERTER) (WITH HI-LOW SWITCH) (THREE FUNCTIONS)
20	AL178562	1	Grip	(WITH DIVERTER) (WITH HI-LOW SWITCH) (WITH TWO FUNCTIONS)
21	AL113566	1	Electrical Connector Assy	(THREE FUNCTIONS)
21	L114840	1	Cap	(WITH TWO FUNCTIONS)
..	AL180659	1	Control	(OPEN OPERATOR'S STATIONS STANDARD VERSION) FI
..	AL180658	1	Control	(WITH CAB) (THREE FUNCTIONS) FI
..	AL180657	1	Control	(WITH CAB) (WITH TWO FUNCTIONS) FI

MULTI-FUNCTION LEVER FOR M-ICV (MOUNTED ON FLOOR)

Нет текстового описания
