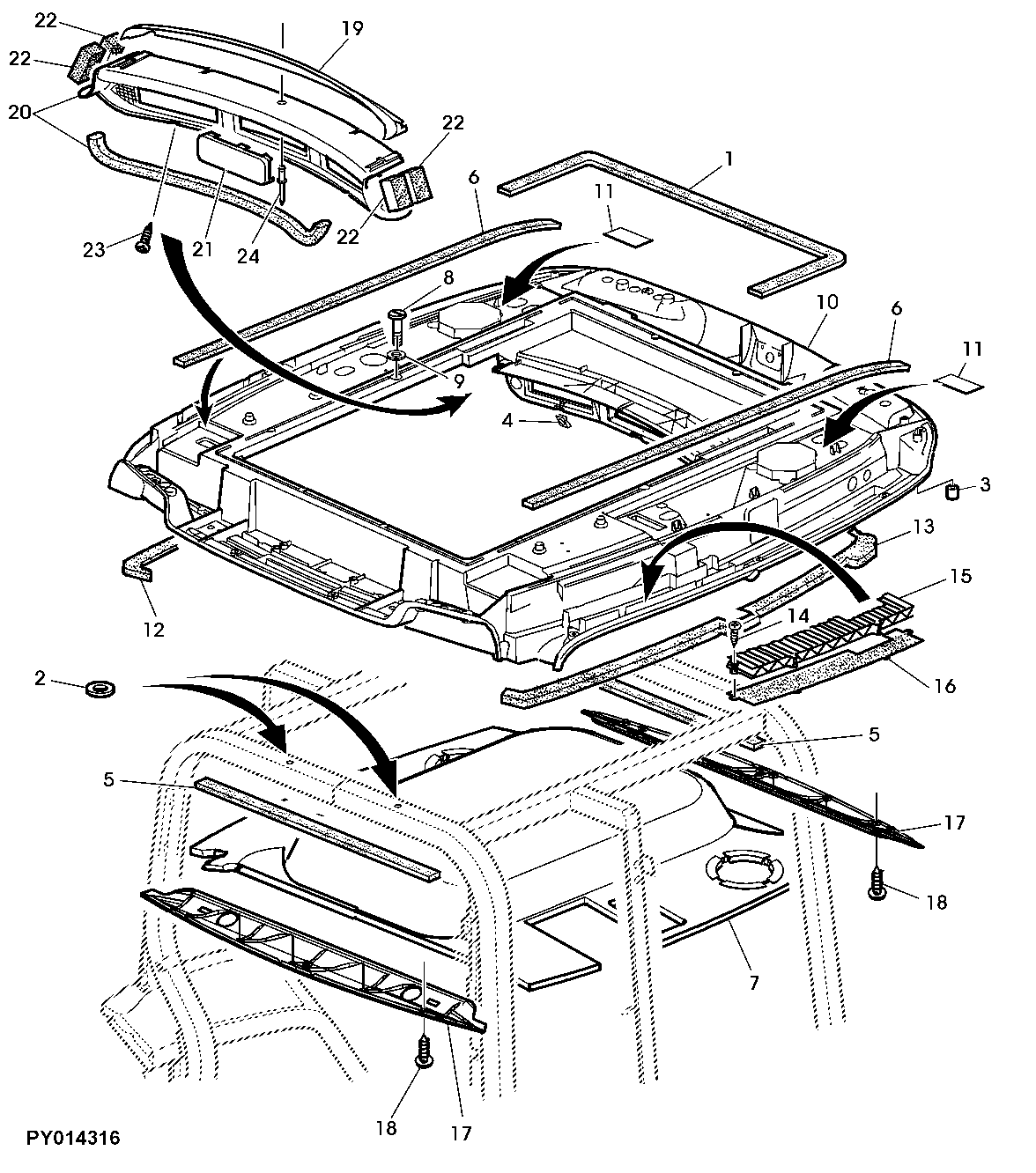

HEADLINER, HEADLINER TRIM (NOT WITH HINGED HATCH)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 1	LGTH= 4200MM (165-23/64), (MF L155025)
2	L79335	2	Washer	-
3	L152460	1	Bushing	-
4	L176130	3	Isolator	-
5	L157462	2	Isolator	-
6	-	2	Part 6	LGTH= 1500MM (59-1/16"), (MF L155025)
7	AL181202	1	Headliner	ORDER AL216523
7	AL181204	1	Headliner	(WITH ADDITIONAL STORAGE BIN L.H.) ORDER AL216525
7	AL210709	1	Headliner	(WITH ADDITIONAL STORAGE BIN L.H.) ORDER AL216525
7	AL216525	1	Headliner	(WITH ADDITIONAL STORAGE BIN L.H.)
7	AL210707	1	Headliner	ORDER AL216523
7	AL216523	1	Headliner	-
8	37M7231	2	Screw	-
9	24M7309	2	Washer	6.600 X 22 X 2 mm
10	AL177938	1	Roof	-
11	R81207	6	Cover	-
12	L100413	1	Gasket	LH
13	L100414	1	Gasket	RH
14	37M7358	8	Screw	-
15	L155256	2	Deflector	-
16	L155257	2	Air Intake	-
17	L157470	2	Molding	-
17	L171141	1	Molding	(DECORATED INTERIOR CAB PARTS)
18	21M7292	1	Screw	M6 X 16
19	L171144	1	Shield	(DECORATED INTERIOR CAB PARTS)
20	L171143	1	Panel	(DECORATED INTERIOR CAB PARTS)
21	L171145	3	Cover	(DECORATED INTERIOR CAB PARTS)
22	L110138	6	Pad	-
23	37M7088	3	Screw	(DECORATED INTERIOR CAB PARTS)
24	L39134	3	Rivet	-
..	L155025	1	Weatherstrip	LGTH= 18000MM (708-21/32")
..	AL176910	1	Tune-Up Kit	(DECORATED INTERIOR CAB PARTS) FI (INCL L171141,L171143, L171144, (3) L171145)

HEADLINER, HEADLINER TRIM (NOT WITH HINGED HATCH)
