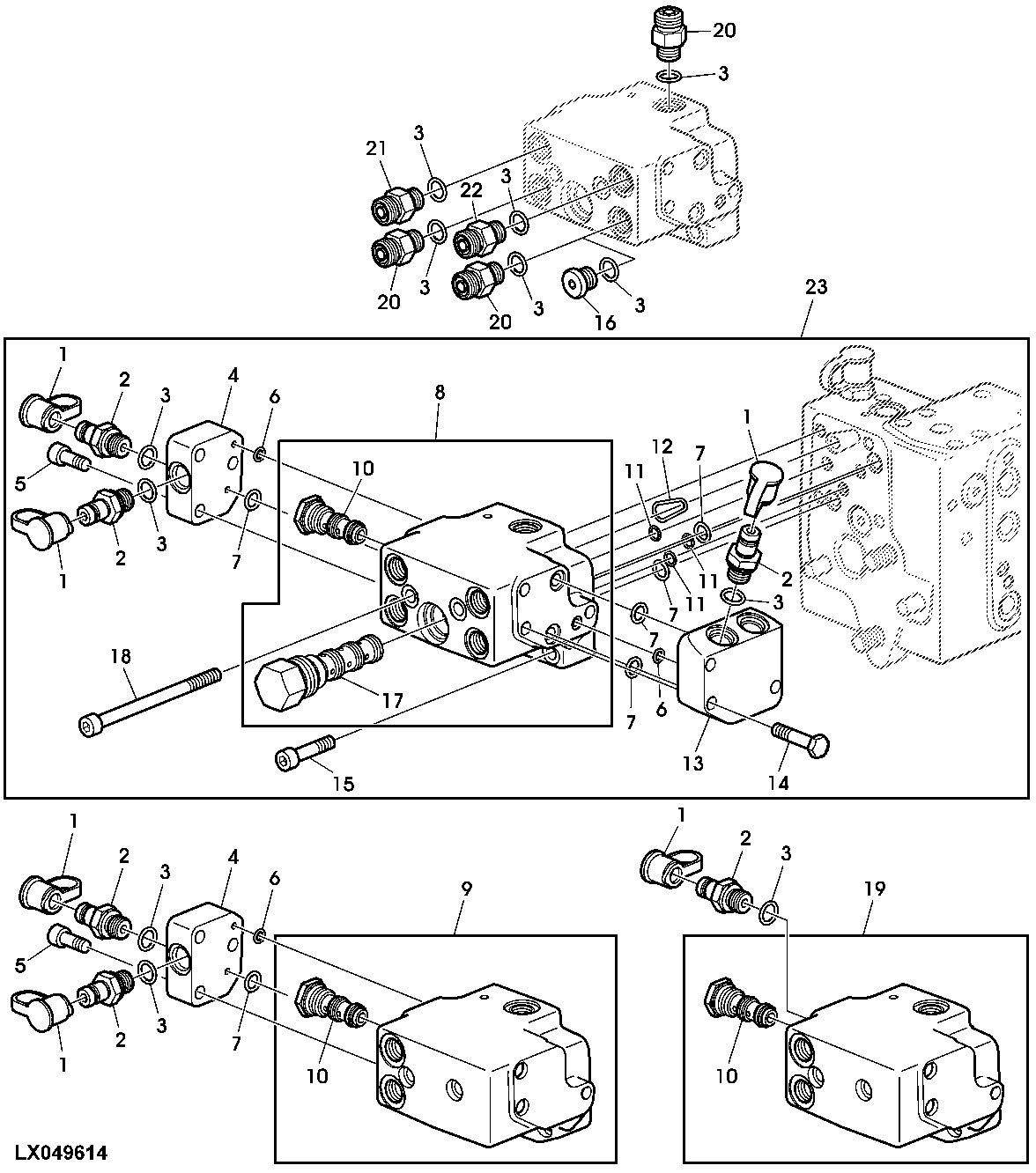

CONTROL BLOCK PRIORITY 2 (HYDRAULIC PUMP 28/45 CM3) (OPEN OPERATOR'S STATION)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R77175	1	Cover	-
2	AL80099	1	Hydr. Quick Coupler Plug	-
3	51M7041	1	O-Ring	11.300 X 2.200 mm
4	L170442	1	Cover	NLA; ORDER L205122
4	L205122	1	Cover	-
5	19M7657	2	Screw	M8 X 25, (10.9)
5	19M9232	1	Screw	(WITH HYDRAULIC TRAILER BRAKE) M8 X 50
6	51M7052	2	O-Ring	6.071 X 1.626 mm
7	51M7040	1	O-Ring	9.300 X 2.200 mm
8	AL171579	1	Housing	ORDER AL232767
8	AL232767	1	Valve	SUB FOR AL207640
9	AL170827	1	Valve	(WITH HYDRAULIC TRAILER BRAKE) (WITHOUT PRIORITY 2 OPTION) ORDER AL232765
9	AL232765	1	Valve	(WITH HYDRAULIC TRAILER BRAKE) (WITHOUT PRIORITY 2 OPTION) SUB FOR AL207639
10	AL171584	1	Valve	-
10	AL165597	1	Valve	-
11	51M7052	3	O-Ring	6.071 X 1.626 mm
12	51M7098	1	O-Ring	22 X 2 mm
13	L205119	1	Cover	SUB FOR L167101
14	19M8008	3	Cap Screw	M8 X 35
15	19M8819	2	Screw	M8 X 35
16	15M7076	1	Drain Plug	(WITHOUT PRIORITY 2 OPTION)
17	AL171583	1	Control Valve	-
17	AL222495	1	Control Valve	SUB FOR AL178658
18	L170303	2	Screw	-
19	AL207638	1	Valve	(WITHOUT HYDRAULIC TRAILER BRAKES) (WITHOUT PRIORITY 2 OPTION) SUB FOR APPL AL170829
20	38H5002	3	Adapter Fitting	-
21	AL206434	1	Check Valve	SUB FOR AL169554
22	38H5011	1	Adapter Fitting	-
23	AL174516	1	Housing	FI
23	BL15016	1	Valve	-
..	AL172754	1	Seal Kit	FOR KEY 8, 9, 19

CONTROL BLOCK PRIORITY 2 (HYDRAULIC PUMP 28/45 CM3) (OPEN OPERATOR'S STATION)
