MECHANICALLY OPERATED SELECTIVE CONTROL VALVE (M-SCV) 100 SERIES

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL202022	1	Selective Control Valve	(ORD AL206028)
1	AL206028	1	Selective Control Valve	ORDER AL231713
1	AL231713	1	Selective Control Valve	-
1	AL174923	1	Selective Control Valve	(ORD AL202022) (SUB FOR AL172561)
2	AL172964	1	Seal Kit	NLA; ORDER AL207509
2	AL207509	1	Seal Kit	-
3	AL172971	1	Kit	ORDER AL216674
3	AL216673	1	Detent Kit	SUB FOR AL216674
4	AL203572	1	Seal Kit	NLA; ORDER AL207508, SUB FOR AL172963
4	AL207508	1	Seal Kit	-
5	AL172974	1	Fitting Plug	-
6	AL172966	1	Flange Kit	-
7	AL203292	2	Seal Kit	(SUB FOR L170240)
8	L170555	1	Plug	MARKED I
9	L170556	1	Plug	MARKED II
10	L170557	1	Plug	MARKED III
11	L102157	1	Plug	MARKED IV
12	L203820	1	Compression Spring	-
13	AL205619	1	Valve Kit	-
..	AL170399	1	Selective Control Valve	(INCLUDES 1 M-SCV 100 SERIES AND 2 QUICK DISCONNECT COUPLERS STANDARD) (INCLUDES LEAK-OFF-OIL PARTS) FI,CNLA,(ORD AL204101)
..	AL204101	1	Selective Control Valve	(INCLUDES 1 M-SCV 100 SERIES AND 2 QUICK DISCONNECT COUPLERS STANDARD) (INCLUDES LEAK-OFF-OIL PARTS) FI, NLA, (ORDERAL207607) (INCL KEYS 2-7,12,AL202022)
..	AL207607	1	Selective Control Valve	(INCLUDES 1 M-SCV 100 SERIES AND 2 QUICK DISCONNECT COUPLERS STANDARD) (INCLUDES LEAK-OFF-OIL PARTS) FI

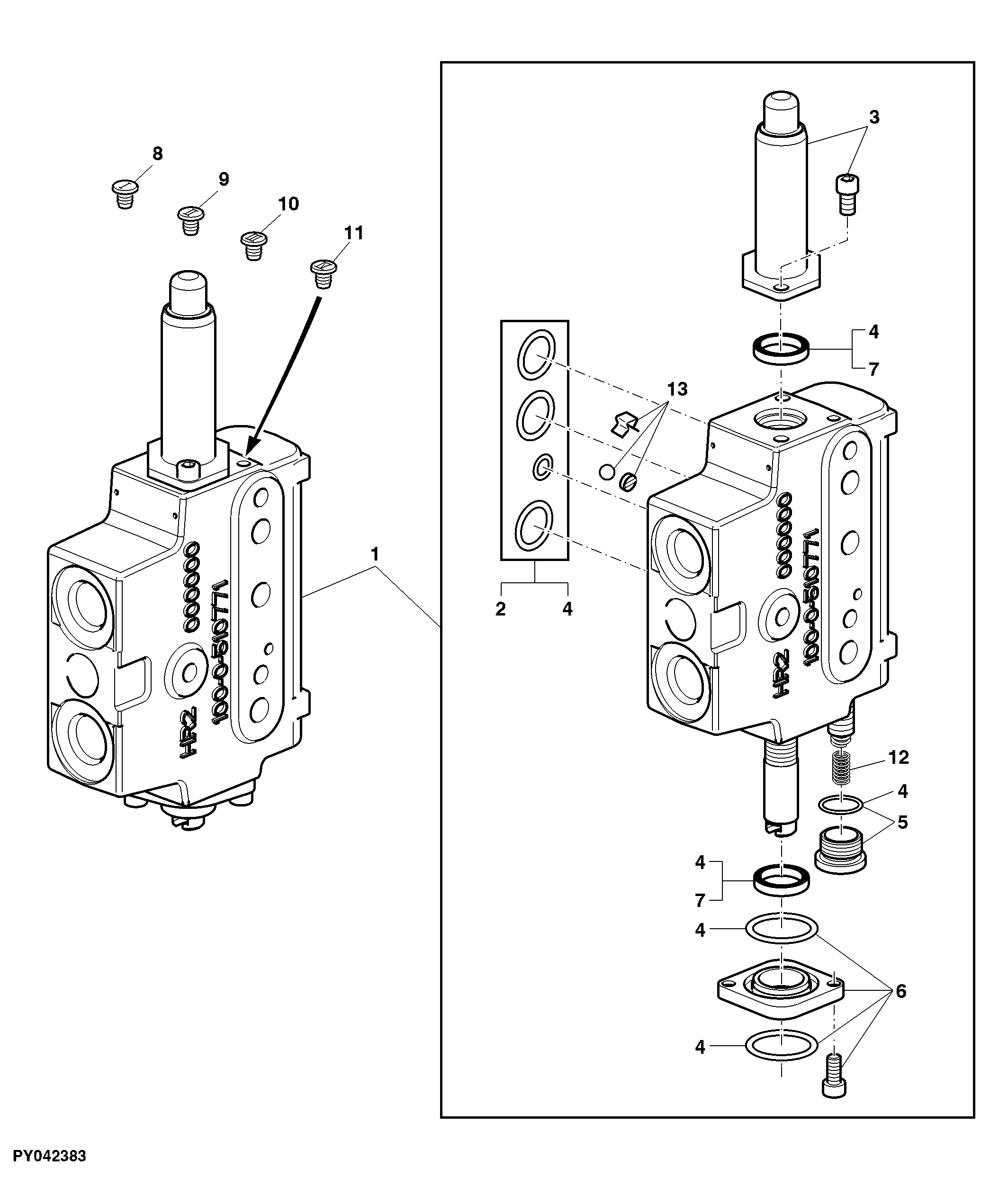

MECHANICALLY OPERATED SELECTIVE CONTROL VALVE (M-SCV) 100 SERIES

Нет текстового описания
