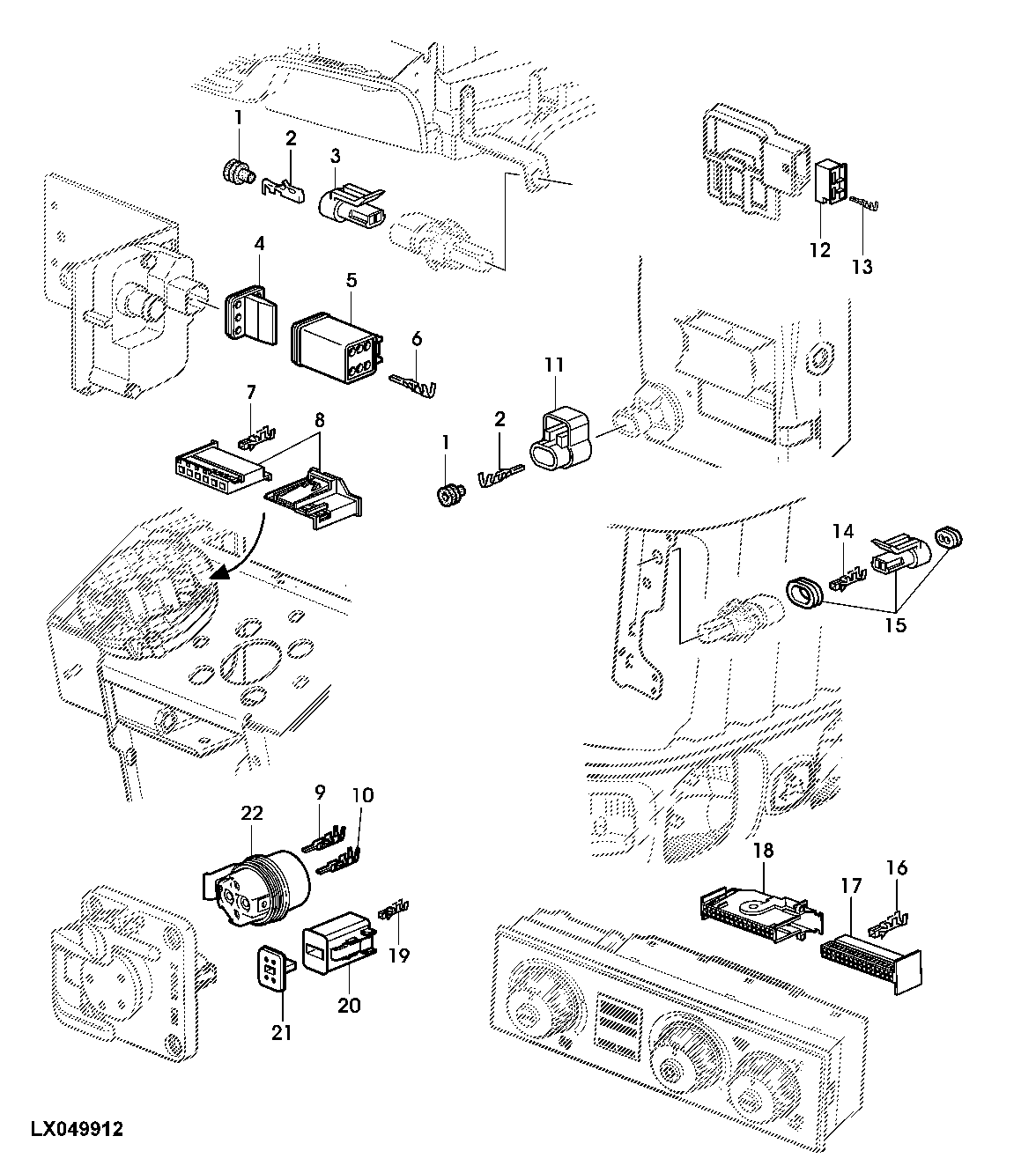

CONNECTORS FOR CLIMATRAK AND ISOBUS SOCKET (60A)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	57M8566	2	Elec. Connector Seal	-
2	57M8560	2	Elec. Connector Terminal	(WIRE GAUGE / CONNECTOR WIDTH) 0.5MM²
3	57M8556	1	Elec. Connector Housing	-
4	57M7677	1	Elec. Connector Terminal	-
5	AZ54533	1	Elec. Connector Housing	-
6	57M7546	6	Elec. Connector Terminal	(WIRE GAUGE / CONNECTOR WIDTH) 0.75-1MM² /1.5MM
7	57M8719	5	Elec. Connector Terminal	-
8	57M8550	1	Elec. Connector Housing	-
9	57M7614	2	Elec. Connector Terminal	(WIRE GAUGE / CONNECTOR WIDTH) 6MM² /5MM
10	57M8569	2	Elec. Connector Terminal	(WIRE GAUGE / CONNECTOR WIDTH) 4MM² /2.4MM
11	57M8612	1	Elec. Connector Housing	-
12	57M8720	1	Elec. Connector Housing	-
13	57M8719	3	Elec. Connector Terminal	-
14	57M7829	2	Elec. Connector Terminal	(WIRE GAUGE / CONNECTOR WIDTH) 0.5-1MM² /1.5MM
15	57M7278	1	Elec. Connector Housing	-
16	57M8719	21	Elec. Connector Terminal	(WIRE GAUGE / CONNECTOR WIDTH) 0.5MM²
17	57M8549	1	Elec. Connector Housing	-
18	57M8721	1	Elec. Connector Accessory	-
19	57M8164	4	Elec. Connector Terminal	(WIRE GAUGE / CONNECTOR WIDTH) 0.5-1MM²
20	AZ50830	1	Electrical Connector Assy	-
21	57M7618	1	Electrical Connector Assy	-
22	RE210023	1	Electrical Connector Assy	-

CONNECTORS FOR CLIMATRAK AND ISOBUS SOCKET (60A)

Нет текстового описания
