Открытый узел

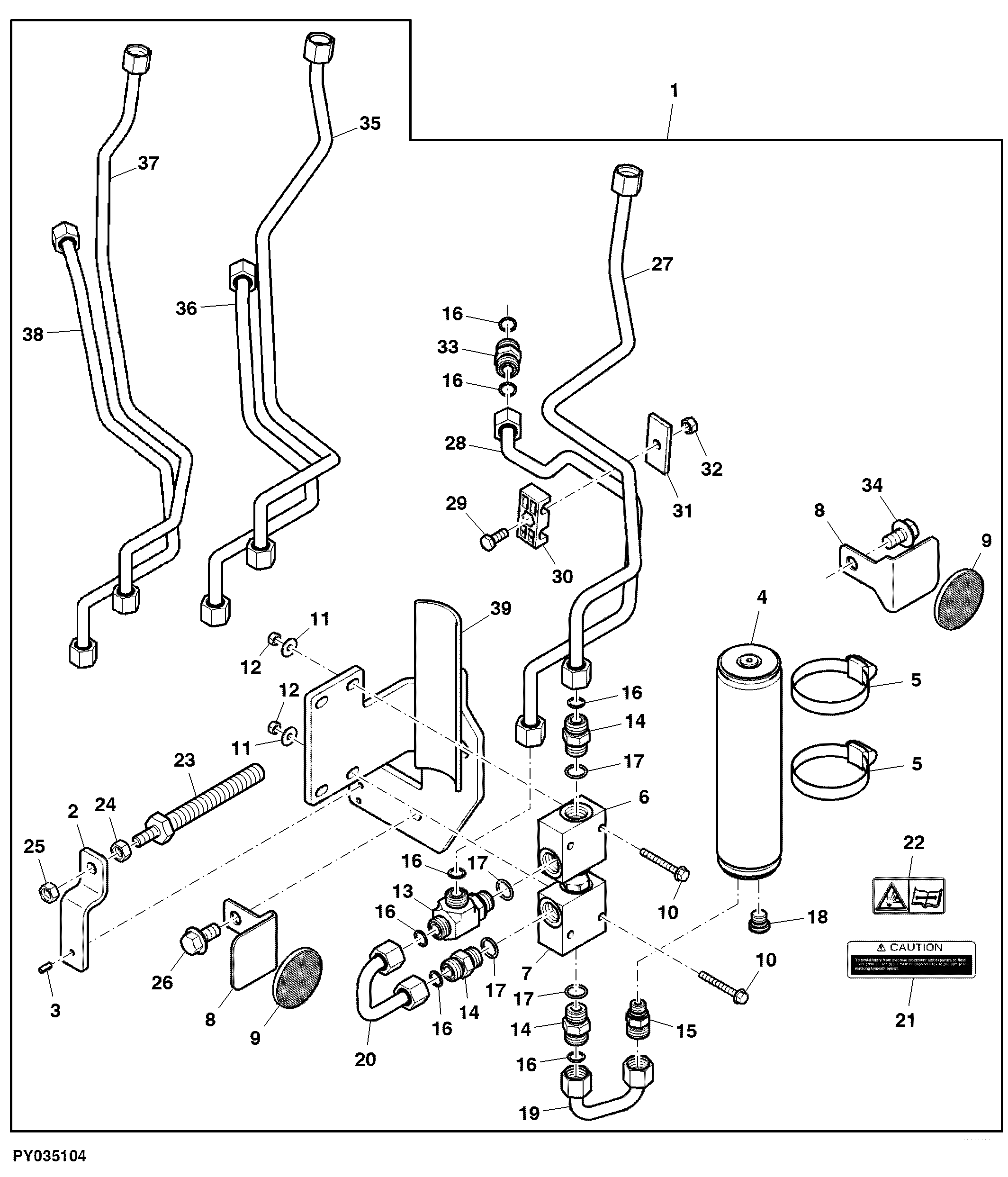

Accumulator Kit, Steering, Attachment

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL209154	1	Accumulator Kit	-
2	L208930	1	Bracket	-
3	34M5028	1	Spring Pin	5 X 12 mm
4	AL166367	1	Hydraulic Accumulator	ORDER AL208906
4	AL208906	1	Hydraulic Accumulator	-
5	AL170672	2	Clamp	-
6	AL207843	1	Check Valve	-
7	AL207844	1	Check Valve	-
8	L209035	2	Bracket	-
9	AL171450	2	Reflector	-
10	19M8092	4	Screw	M6 X 50
11	24M7139	4	Washer	6.400 X 18 X 1.600 mm
12	14M7272	4	Nut	M6
13	38H1024	1	Tee Fitting	-
14	38H1161	3	Adapter Fitting	-
15	61M5009	1	Adapter Fitting	-
16	T77857	7	O-Ring	-
17	R26375	4	O-Ring	-
18	RE46684	1	Fitting Plug	-
19	AL209158	1	Oil Line	-
20	AL209157	1	Oil Line	-
21	L157904	2	Label	-
22	L113583	2	Label	-
23	L113893	1	Stud	-
23	19M9121	1	Screw	(With trailer brake valve) M8 X 12
24	14M7152	1	Nut	M10
25	14M7274	1	Nut	M10
26	19M7788	1	Screw	M12 X 25
27	AL209159	1	Oil Line	-
28	AL209160	1	Oil Line	-
29	19M7139	1	Cap Screw	(Without trailer brake valve) M8 X 20
30	L167530	1	Clamp	(With and without trailer brake valve)
31	L167533	1	Strap	(Without trailer brake valve)
32	14M7273	1	Nut	(Without trailer brake valve) M8
33	38H5128	1	Union Fitting	-
34	19M7787	1	Screw	M12 X 20
35	AL209165	1	Oil Line	-
36	AL209167	1	Oil Line	-
37	AL209166	1	Oil Line	-
38	AL209168	1	Oil Line	-
39	AL209161	1	Bracket	-

Accumulator Kit, Steering, Attachment

Нет текстового описания
