Открытый узел

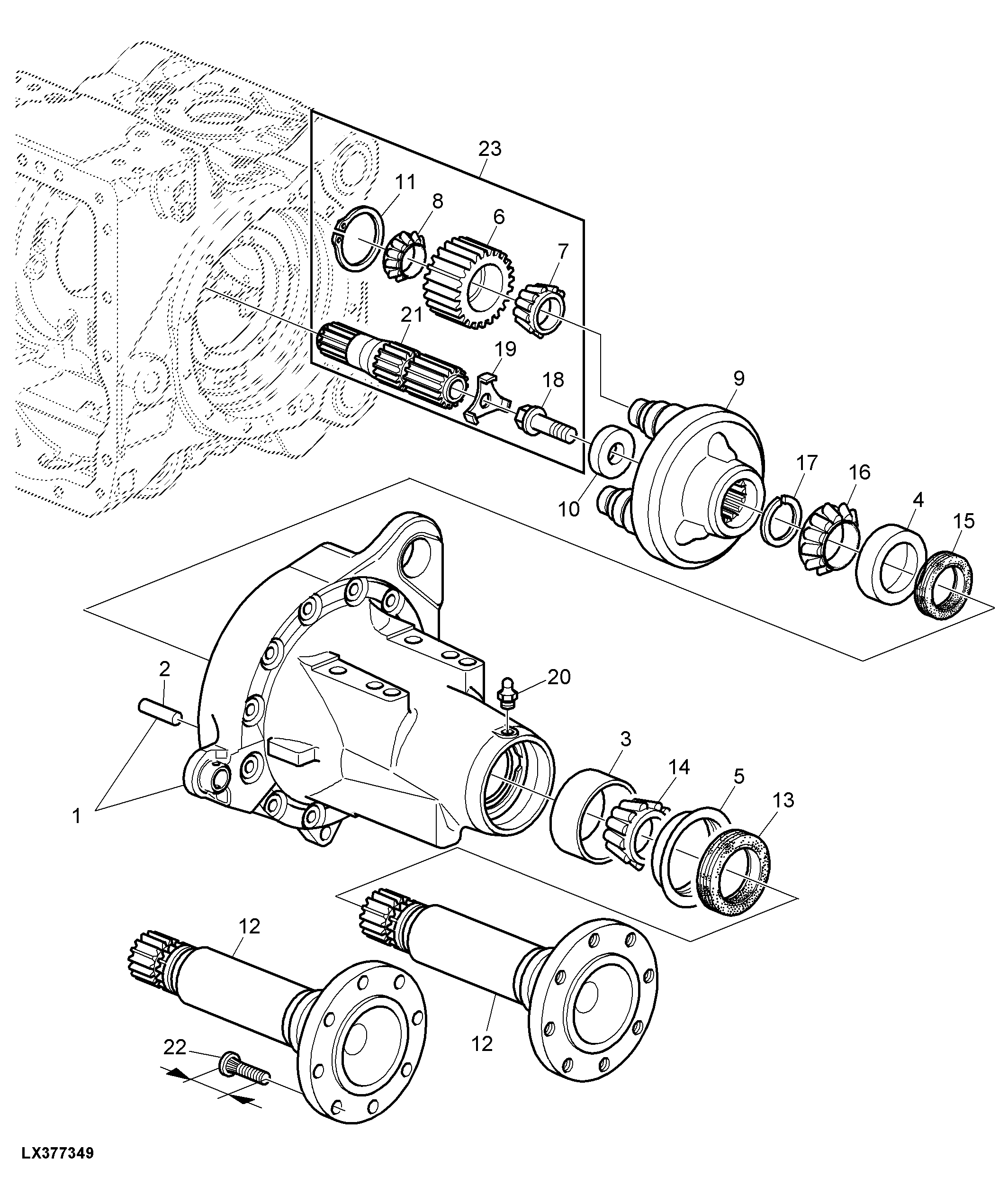

REAR AXLE,FLANGED (CAB / HEAVY DUTY VERSION)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL157748	1	Housing	LH (MARKED L154527, L155483) (SUB FOR AL151616)
1	AL157747	1	Housing	RH (MARKED L154526, L155482) (SUB FOR AL151617)
2	44M7114	3	Dowel Pin	-
3	L154620	2	Bearing Cup	-
4	L154621	2	Bearing Cup	-
5	L76058	2	Wear Ring	-
6	L172082	3	Pinion	Z = 35, RH, ORDER AL221091; SUB FOR L154624
6	L172082	3	Pinion	Z = 35, LH, ORDER AL221092; SUB FOR L154624
7	AL215773	6	Bearing Cone	-
7	AL159502	6	Bearing Cone	ORDER AL215773
7	AL154300	6	Roller Bearing	ORDER AL215773
8	AL215774	6	Bearing Cone	SUB FOR AL160457, AL115000 APPL
9	L152425	2	Planet Pinion Carrier	(MARKED L152425) (SUB FOR L154623 APPL)
10	L156914	2	Bushing	(SUB FOR L75741)
11	L154821	1	Ring	TK= 3.00MM (0.118")
11	L154820	1	Ring	TK= 2.95MM (0.116")
11	L154819	1	Ring	TK= 2.90MM (0.114")
11	L154818	1	Ring	TK= 2.85MM (0.112")
11	L154817	1	Ring	TK= 2.80MM (0.110")
11	L154815	1	Ring	TK= 2.70MM (0.106")
11	L154814	1	Ring	TK= 2.65MM (0.104")
11	L154813	1	Ring	TK= 2.60MM (0.102")
11	L154812	1	Ring	TK= 2.55MM (0.100")
11	L154811	1	Snap Ring	TK= 2.50MM (0.098")
11	L154816	1	Ring	TK= 2.75MM (0.108")
12	L156021	2	Half Axle	(WITH WHEEL BOLTS) (MARKED L154207 OR L156021) (SUB FOR L154207)
12	L156023	2	Half Axle	ORD W/ KEY22 (8) (SUB FOR L154550)
13	AL158922	2	Seal	(SUB FOR AL75774)
14	AL156506	2	Bearing Cone	-
15	AL69712	2	Seal	-
16	AL156503	2	Bearing Cone	-
17	L76059	2	Snap Ring	-
18	L57311	2	Screw	-
19	L101142	2	Lock Plate	-
20	58M5575	2	Lubrication Fitting	-
21	L110821	1	Drive Shaft	RH, ORDER AL221091
21	L110820	1	Drive Shaft	LH, ORDER AL221092
22	L154592	1	Wheel Bolt	LGTH= 113MM (4-7/16")
22	L150648	1	Wheel Bolt	LGTH= 128MM (5-1/32")
23	AL221091	1	Gear	RH
23	AL221092	1	Gear	INCLUDES (3) AL215773, (3) AL215774, (3) L214070, L154811, L154812, L154813, L154814, L154815, L154816, L154817, L154818, L154819, L154820, L154821, L57311, L101142, L214068

REAR AXLE,FLANGED (CAB / HEAVY DUTY VERSION)

Нет текстового описания
