OPERATING COMPONENTS, SHIFTABLE REAR PTO (PREMIUM CAB OR OPEN OPERATOR'S STATION)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL115814	4	Nut	-
2	L115292	4	Bolt	(WITH CAB)
2	19M8866	4	Screw	(WITH OPEN OPERATOR'S STATION) M5 X 16
3	L112126	1	Panel	(WITH HANDSHIFT PTO 540-1000 RPM) (WITH CAB)
3	L156534	1	Panel	(WITH HANDSHIFT PTO 540-1000 RPM) (WITH CAB)
3	L111370	1	Panel	(WITH HANDSHIFT PTO 540-1000 RPM) (WITH OPEN OPERATOR'S STATION)
3	L112127	1	Panel	(WITH HANDSHIFT PTO 540-540E-1000 RPM) (WITH CAB)
3	L156535	1	Panel	(WITH HANDSHIFT PTO 540-540E-1000 RPM) (WITH CAB)
3	L111368	1	Panel	(WITH HANDSHIFT PTO 540-540E-1000 RPM) (WITH OPEN OPERATOR'S STATION)
3	L112128	1	Panel	(WITHOUT HANDSHIFT PTO) (WITH CAB)
3	L156538	1	Clip	(WITHOUT HANDSHIFT PTO) (WITH CAB)
3	L80085	1	Panel	(WITHOUT HANDSHIFT PTO) (WITH OPEN OPERATOR'S STATION)
4	24M7055	1	Washer	8.400 X 16 X 1.600 mm
5	14M7273	1	Nut	M8
6	L78981	1	Insert	-
7	L77747	1	Knob	-
8	L112676	4	Disk Spring	(WITHOUT CREEPER TRANSMISSION)
8	L112676	5	Disk Spring	-
9	L113060	1	Bushing	-
10	24M7421	4	Washer	16.300 X 32 X 2 mm
10	24M7421	3	Washer	(WITHOUT CREEPER TRANSMISSION) 16.300 X 32 X 2 mm
11	AL113523	1	Lever	-
12	24M7101	1	Washer	11 X 34 X 3 mm
13	14M7167	1	Lock Nut	M10
14	L113061	1	Bushing	(WITHOUT CREEPER TRANSMISSION)
15	L217783	2	Snap Ring	SUB FOR L219493, L79076 APPL
16	AL79051	1	Pin Fastener	(SUB FOR 45M7080)
17	L76801	1	Grommet	-
18	AL114138	1	Push Pull Cable	-
19	14M7396	1	Lock Nut	M8
20	AL79051	1	Pin Fastener	-
21	L80052	1	Yoke	-
22	14M7272	2	Nut	M6
23	L80051	1	Yoke	-
24	99M7011	1	Plug	-

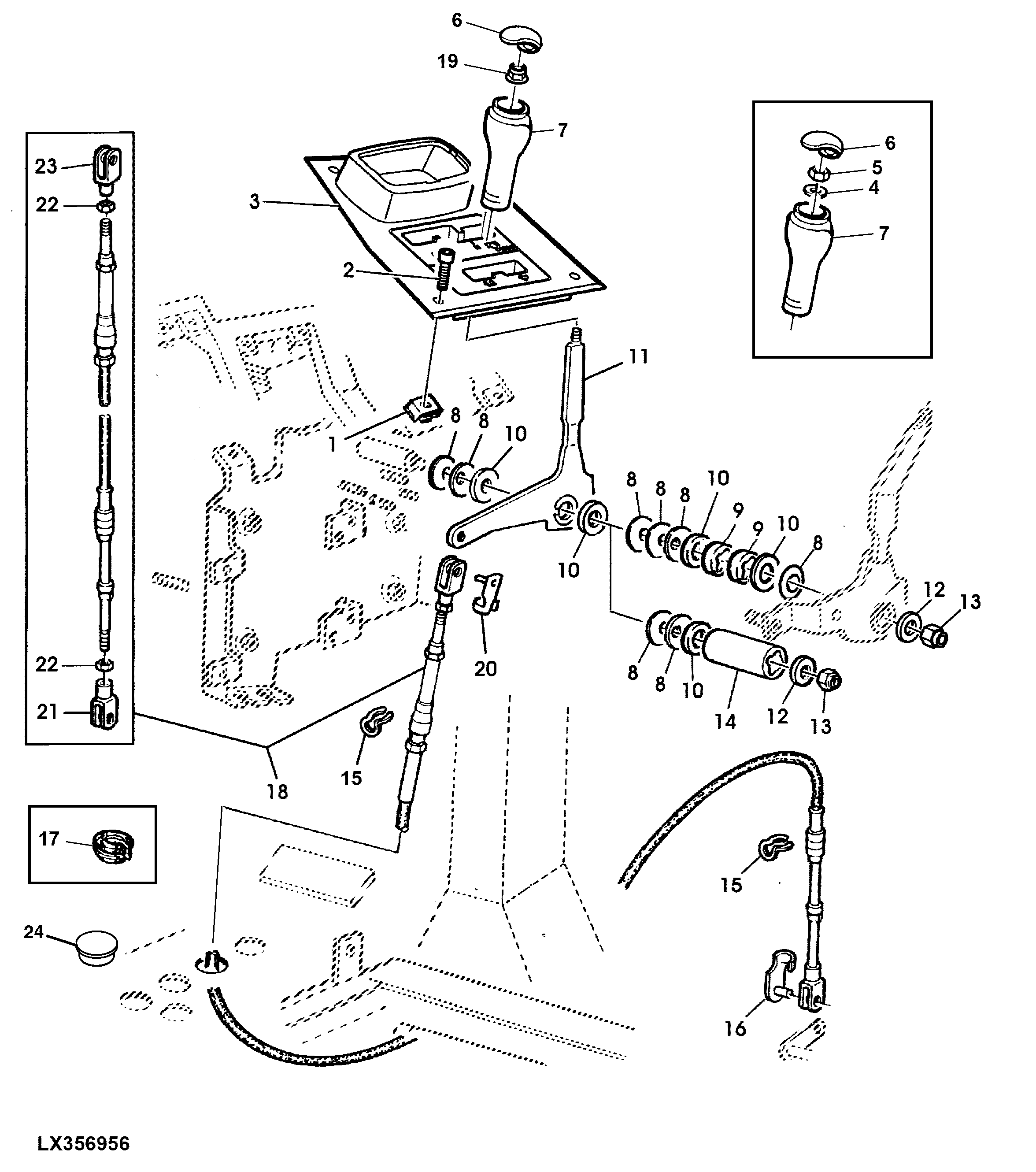

OPERATING COMPONENTS, SHIFTABLE REAR PTO (PREMIUM CAB OR OPEN OPERATOR'S STATION)
