Открытый узел

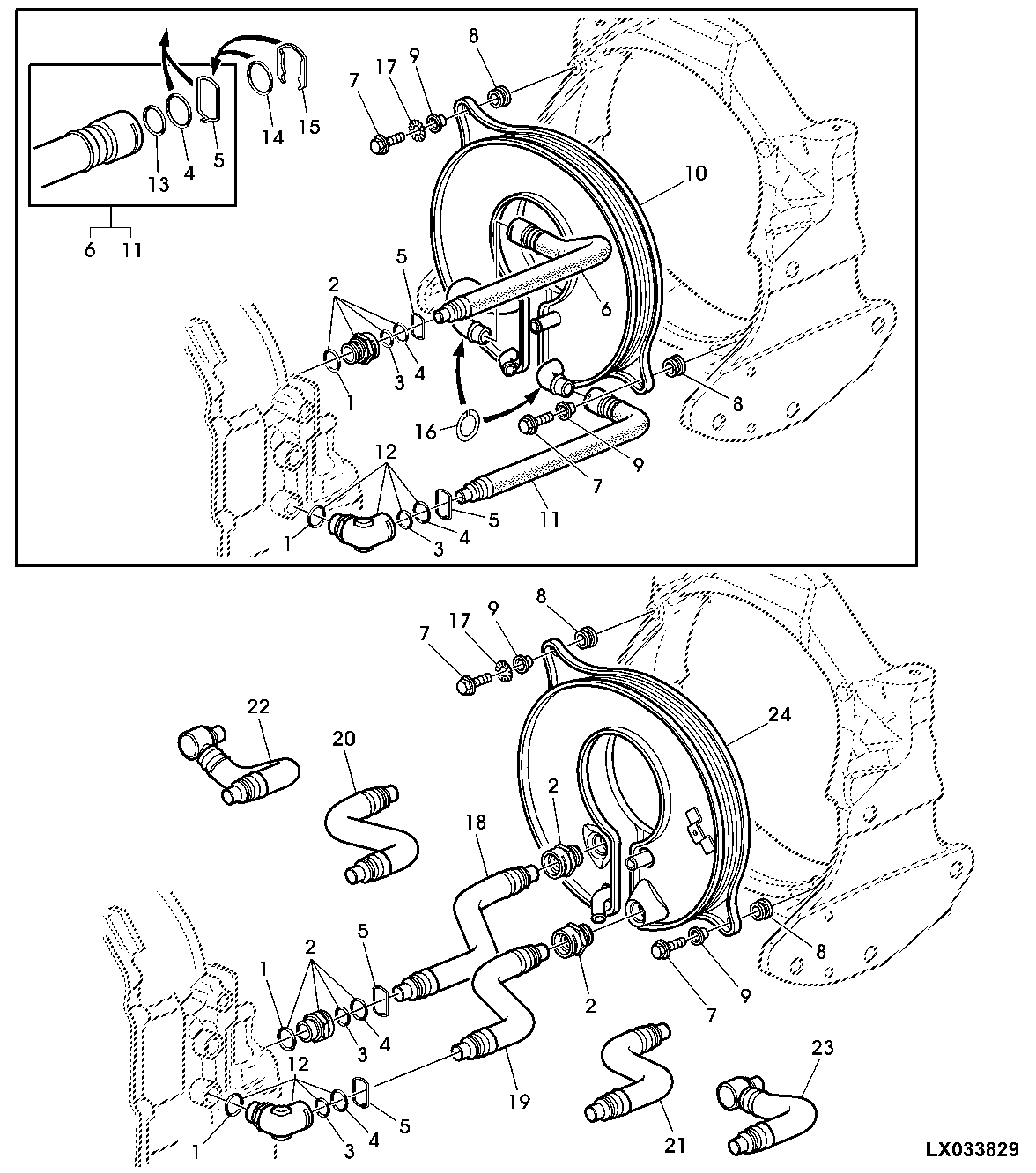

OIL COOLER AND LINES (SYNCROPLUS OR POWRREVERSER)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	51M7047	1	O-Ring	23.600 X 2.900 mm
2	AL155400	1	Fitting	-
3	51M7102	1	O-Ring	20 X 2 mm
4	51M7099	1	O-Ring	25 X 2.200 mm
5	L157513	1	Clamp	(SUB FOR L152608)
6	AL154635	1	Hose	(SYNCROPLUS)
6	AL154637	1	Hose	(WITH OPTION TRANSMISSION HOUSING) (SYNCROPLUS)
6	AL154639	1	Hose	(POWRREVERSER)
6	AL154641	1	Hose	(WITH OPTION TRANSMISSION HOUSING) (POWRREVERSER)
7	19M7139	3	Cap Screw	M8 X 20
8	L169406	3	Grommet	SUB FOR L152397
9	L168886	3	Shim	SUB FOR L152398
10	AL157683	1	Oil Cooler	(SYNCROPLUS) (ORD AL159149, AL117978,(2) AL155400, (4) L157513, AL158907, AL158908) (SUB FOR AL156586)
10	AL157683	1	Oil Cooler	(WITH OPTION TRANSMISSION HOUSING) (SYNCROPLUS) (ORD AL159149, AL117978, (2) AL155400, (4) L157513, AL158909, AL158910) (SUB FOR AL156586)
10	AL157683	1	Oil Cooler	(POWRREVERSER) (ORD AL159149, AL117978, (2) AL155400, (4) L157513, AL158912, AL158913) (SUB FOR AL156586)
10	AL157683	1	Oil Cooler	(WITH OPTION TRANSMISSION HOUSING) (POWRREVERSER) (ORD AL159149, AL117978, (2) AL155400, (4) L157513, AL160025, AL160006) (SUB FOR AL156586)
11	AL154642	1	Hose	(WITH OPTION TRANSMISSION HOUSING) (POWRREVERSER)
11	AL154638	1	Hose	(WITH OPTION TRANSMISSION HOUSING) (SYNCROPLUS)
11	AL154636	1	Hose	(SYNCROPLUS)
11	AL154640	1	Hose	(POWRREVERSER)
12	AL157935	1	Elbow Fitting	-
13	51M7098	1	O-Ring	22 X 2 mm
14	B15646	2	O-Ring	-
15	L155450	2	Clamp	-
16	L155471	2	Washer	-
17	L156571	1	Washer	-
18	AL158907	1	Hose	(SYNCROPLUS)
18	AL158912	1	Hose	(POWRREVERSER)
19	AL158908	1	Hose	(SYNCROPLUS)
19	AL158913	1	Hose	(POWRREVERSER)
20	AL158909	1	Hose	(WITH OPTION TRANSMISSION HOUSING) (SYNCROPLUS)
21	AL158910	1	Hose	(WITH OPTION TRANSMISSION HOUSING) (SYNCROPLUS)
22	AL160025	1	Hose	(WITH OPTION TRANSMISSION HOUSING) (POWRREVERSER) (SUB FOR AL158914)
23	AL160006	1	Hose	(WITH OPTION TRANSMISSION HOUSING) (POWRREVERSER) (SUB FOR AL158915)
24	AL159149	1	Oil Cooler	INCL KEYS 8, 9

OIL COOLER AND LINES (SYNCROPLUS OR POWRREVERSER)
