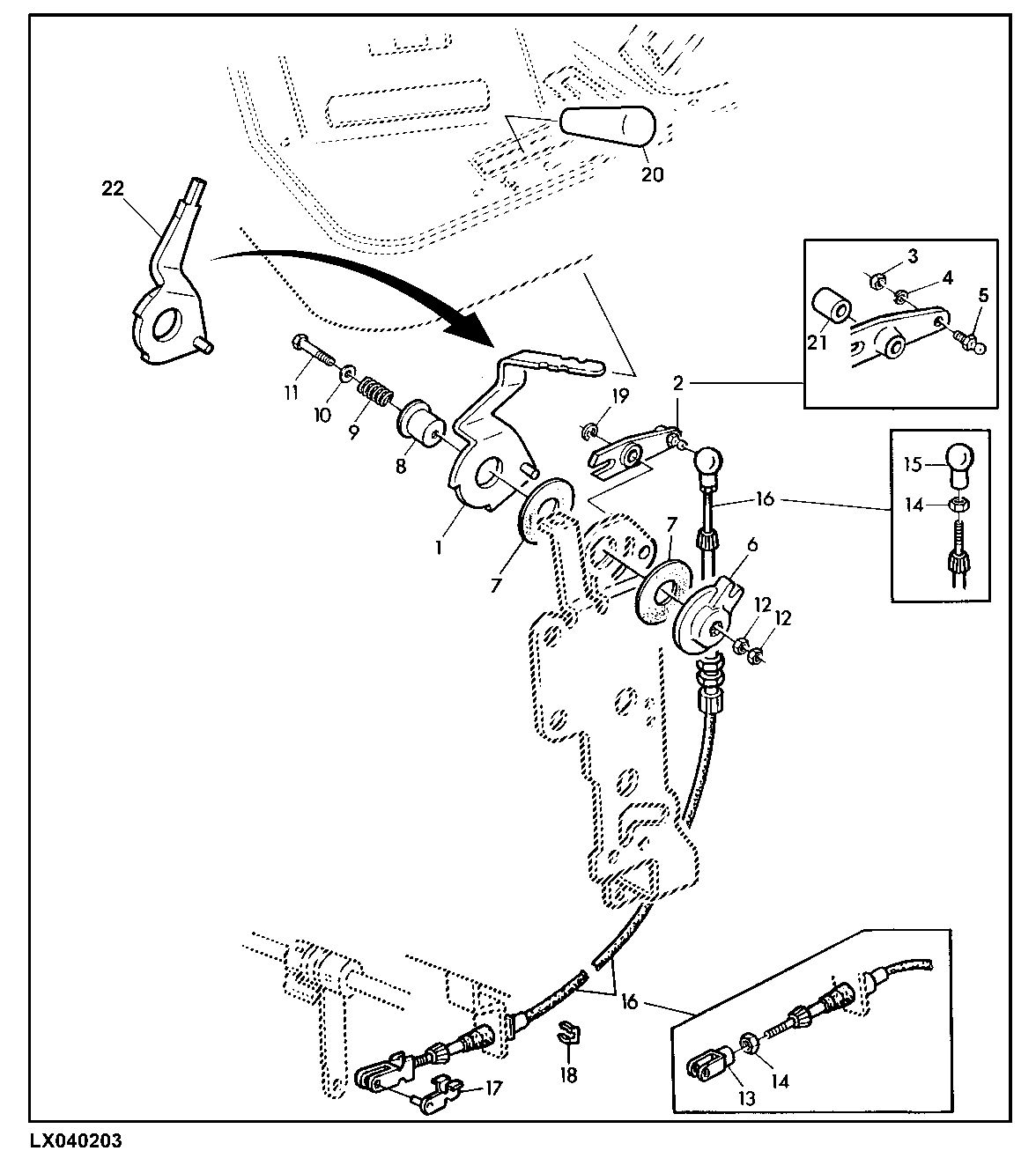

MECHANICAL SPEED CONTROL ON SHIFT CONSOLE

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL151282	1	Lever	-
1	AL151869	1	Lever	(WITH ARMREST-INTEGRATED MULTI-FUNCTION LEVER)
2	AL119895	1	Lever	ID= 10MM (25/64")
3	14M7229	1	Nut	M5
4	12M7077	1	Washer	5 mm
5	55M7003	1	Ball Stud	-
6	L110422	1	Plate	-
7	L58671	2	Washer	-
8	R50227	1	Round Retainer	-
9	R31271	1	Compression Spring	-
10	24M7055	1	Washer	8.400 X 16 X 1.600 mm
11	19M7164	1	Cap Screw	(WITH ARMREST-INTEGRATED MULTI-FUNCTION LEVER) (WITH FLOOR-MOUNTED MULTIFUNCTION LEVER) M8 X 50
11	19M7378	1	Cap Screw	M8 X 45
12	14M7151	2	Nut	M8
13	L80051	1	Yoke	-
14	14M7272	2	Nut	M6
15	56M5259	1	Ball Joint Socket	-
16	AL76778	1	Push Pull Cable	-
17	AL116506	1	Pin Fastener	-
17	45M7101	1	Spring Locking Pin	(WITH FLOOR-MOUNTED MULTIFUNCTION LEVER)
18	L219493	1	Snap Ring	SUB FOR L79076
19	40M7040	1	Snap Ring	-
20	R153184	1	Knob	(WITH ARMREST-INTEGRATED MULTI-FUNCTION LEVER) (WITH FLOOR-MOUNTED MULTIFUNCTION LEVER) ORDER R345693
20	L113076	1	Grip	-
20	R345693	1	Knob	(WITH ARMREST-INTEGRATED MULTI-FUNCTION LEVER) (WITH FLOOR-MOUNTED MULTIFUNCTION LEVER)
21	L116576	1	Bushing	-
22	AL164097	1	Lever	(WITH FLOOR-MOUNTED MULTIFUNCTION LEVER)

MECHANICAL SPEED CONTROL ON SHIFT CONSOLE
