CREEPER, CONTROL LINKAGE (PREMIUM CAB OR OPEN OPERSTOR'S STATION)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL115814	4	Nut	-
2	L115292	4	Bolt	-
3	L111368	1	Panel	(OPEN OPERATOR'S STATION) (WITH 540/540E/1000 PTO)
3	L112127	1	Panel	(WITH CAB) (WITH 540/540E/1000 PTO)
3	L156535	1	Panel	(WITH CAB) (WITH 540/540E/1000 PTO)
3	L111370	1	Panel	(OPEN OPERATOR'S STATION) (WITH 540/1000 PTO)
3	L112126	1	Panel	(WITH CAB) (WITH 540/1000 PTO)
3	L156534	1	Panel	(WITH CAB) (WITH 540/1000 PTO)
3	L112128	1	Panel	(WITH CAB) (WITHOUT HANDSHIFT PTO)
3	L156536	1	Panel	(WITH CAB) (WITHOUT HANDSHIFT PTO)
3	L80085	1	Panel	(OPEN OPERATOR'S STATION) (WITHOUT HANDSHIFT PTO)
4	24M7055	1	Washer	8.400 X 16 X 1.600 mm
5	14M7273	1	Nut	M8
6	L113019	1	Insert	-
7	L77747	1	Knob	-
8	L112676	1	Disk Spring	-
9	L113060	1	Bushing	-
10	24M7421	1	Washer	16.300 X 32 X 2 mm
11	AL119657	1	Tune-Up Kit	-
12	L79408	1	Snap Ring	ID= 9.4MM (3/8")
13	99M7011	1	Plug	(WITHOUT HANDSHIFT PTO)
14	14M7167	1	Lock Nut	M10
15	24M7101	1	Washer	11 X 34 X 3 mm
16	40M7041	1	Snap Ring	-
17	AL114387	1	Push Pull Cable	-
18	L113207	1	Link End	-
19	14M7272	2	Nut	M6
20	L80051	1	Yoke	-
21	AL79050	1	Pin Fastener	ORDER 45M7101
21	45M7101	1	Spring Locking Pin	-
22	L219493	1	Snap Ring	ID= 11MM (7/16"), SUB FOR L79076
23	L76801	1	Grommet	-
24	14M7396	1	Lock Nut	M8
..	AL116215	1	Creeper	FI
..	AL180063	1	Lever	FI

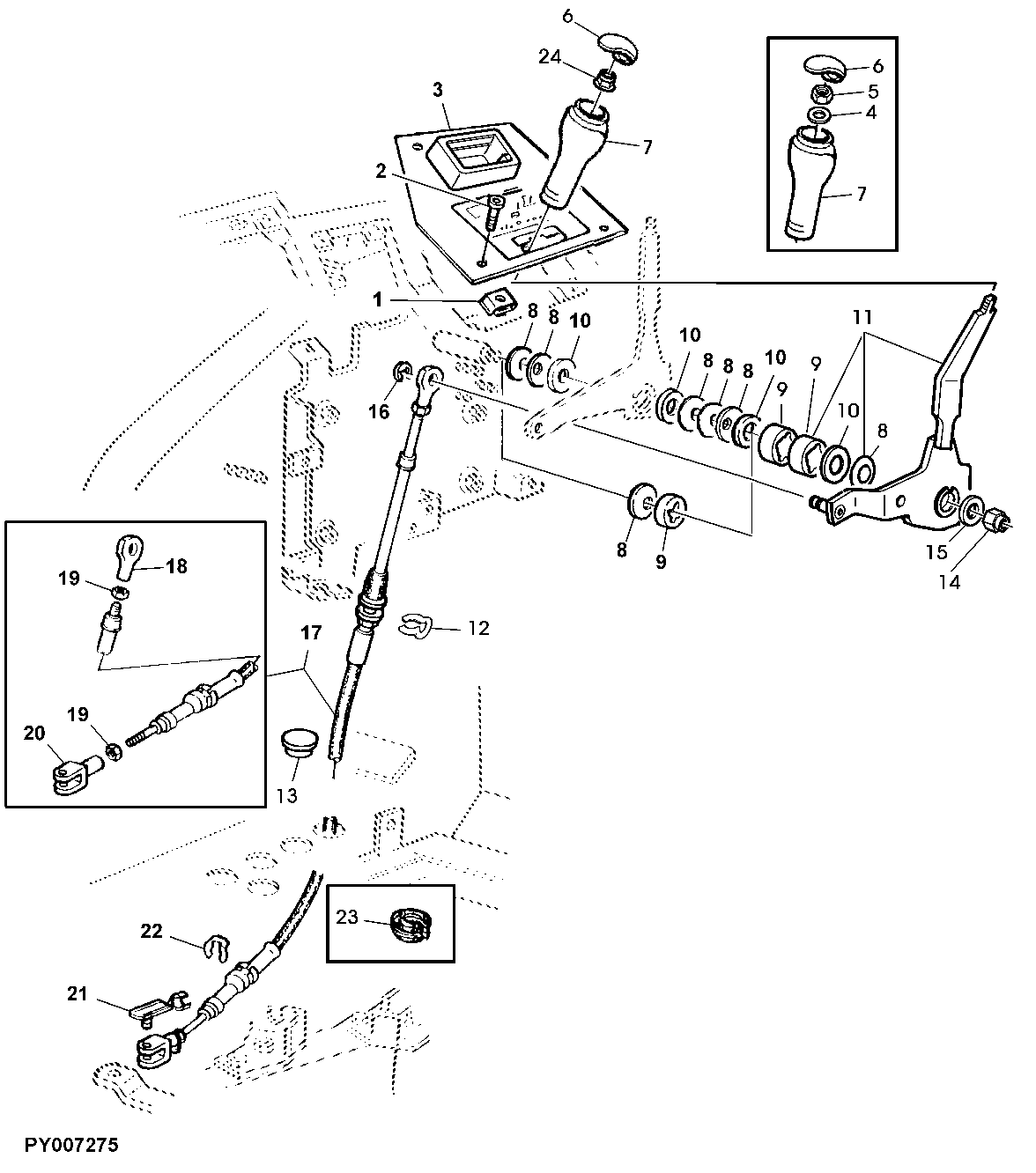

CREEPER, CONTROL LINKAGE (PREMIUM CAB OR OPEN OPERSTOR'S STATION)

Нет текстового описания
