Открытый узел

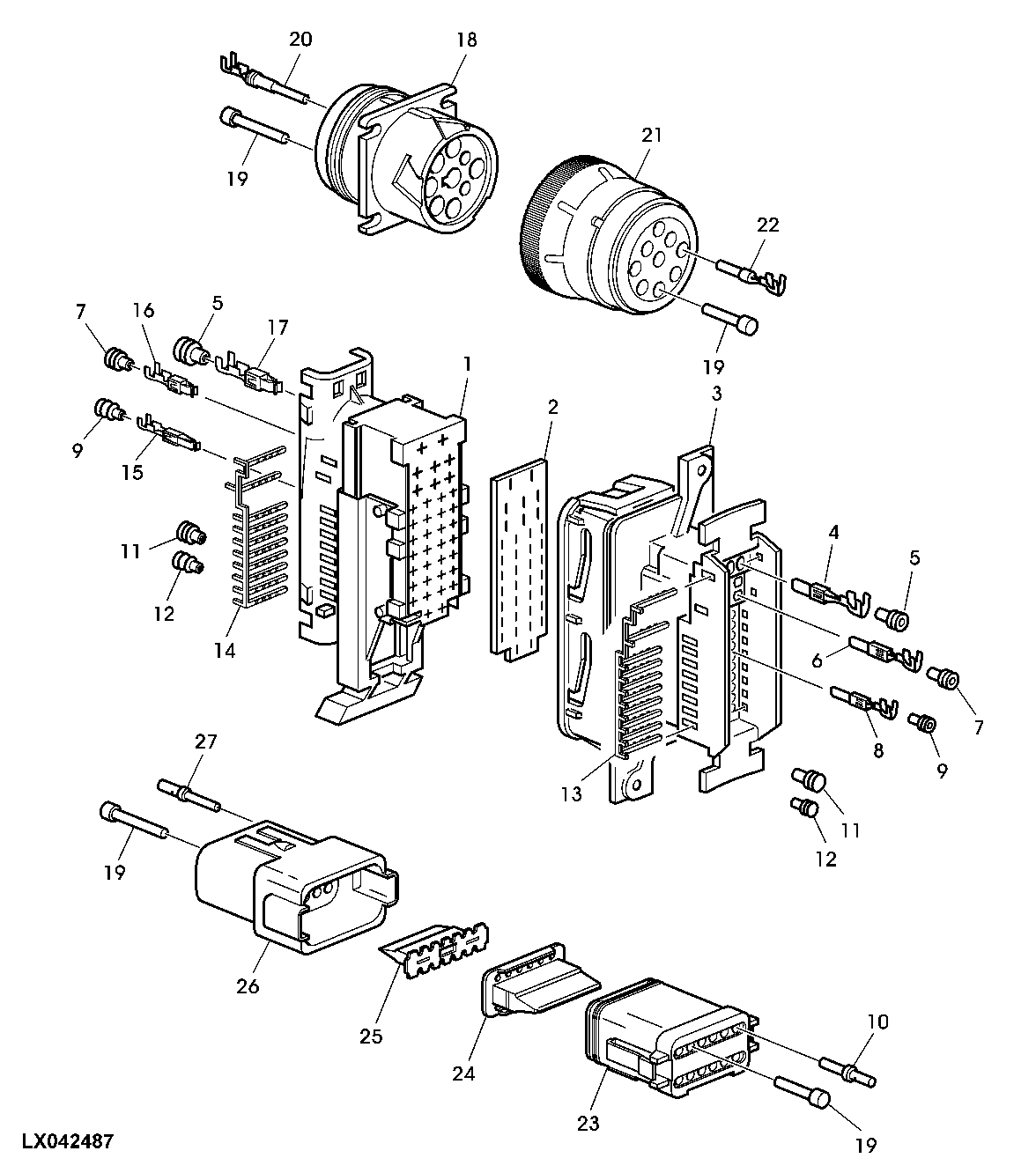

CONNECTOR (9-, 12- OR 42-TERMINAL)

CONNECTOR (9-, 12- OR 42-TERMINAL)

CONNECTOR (9-, 12- OR 42-TERMINAL)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

CONNECTOR (9-, 12- OR 42-TERMINAL)

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	57M8197	1	Elec. Connector Housing	(Blue)
1	57M8195	1	Elec. Connector Housing	(Black)
1	57M8196	1	Elec. Connector Housing	(Gray)
2	57M8098	1	Elec. Connector Terminal	-
3	57M8167	1	Elec. Connector Housing	(Black)
3	57M8198	1	Elec. Connector Housing	(Gray)
3	57M8199	1	Elec. Connector Housing	(C.)
4	57M8099	1	Elec. Connector Terminal	(WIRE GAUGE / CONNECTOR WIDTH) 0.5-1MM² /5.8MM
4	57M8100	1	Elec. Connector Terminal	(WIRE GAUGE / CONNECTOR WIDTH) 1.5-2.5MM² /5.8MM
4	57M8101	1	Elec. Connector Terminal	(WIRE GAUGE / CONNECTOR WIDTH) 2.5-4MM² /5.8MM
5	57M8106	1	Elec. Connector Seal	(Yellow)
5	57M8105	1	Elec. Connector Terminal	(White)
6	57M8077	1	Elec. Connector Terminal	(WIRE GAUGE / CONNECTOR WIDTH) 0.5-1MM² /2.8MM
6	57M7351	1	Elec. Connector Terminal	(WIRE GAUGE / CONNECTOR WIDTH) 1.5-2.5MM² /2.8MM
7	57M7400	1	Elec. Connector Seal	(Blue)
7	57M7399	1	Elec. Connector Seal	(White)
8	57M8108	1	Elec. Connector Terminal	(WIRE GAUGE / CONNECTOR WIDTH) 0.5-1MM² /1.6MM
9	57M7402	1	Elec. Connector Cable Seal	(Gray)
10	R78065	1	Elec. Connector Terminal	(WIRE GAUGE / CONNECTOR WIDTH) 0.8-1MM² /1.5MM
11	57M7401	1	Elec. Connector Cavity Plug	-
12	57M7403	1	Elec. Connector Cavity Plug	-
13	57M8096	1	Retainer	-
14	57M8097	1	Retainer	-
15	57M7398	1	Elec. Connector Terminal	(WIRE GAUGE / CONNECTOR WIDTH) 0.5-1MM² /1.6MM
16	57M8078	1	Elec. Connector Terminal	(WIRE GAUGE / CONNECTOR WIDTH) 0.5-1MM² /2.8MM
16	57M8079	1	Elec. Connector Terminal	(WIRE GAUGE / CONNECTOR WIDTH) 1.5-2.5MM² /2.8MM
17	57M8102	1	Elec. Connector Terminal	(WIRE GAUGE / CONNECTOR WIDTH) 0.5-1MM² /5.8MM
17	57M8103	1	Elec. Connector Terminal	(WIRE GAUGE / CONNECTOR WIDTH) 1.5-2.5MM² /5.8MM
17	57M8104	1	Elec. Connector Terminal	(WIRE GAUGE / CONNECTOR WIDTH) 2.5-4MM² /5.8MM
18	57M7919	1	Elec. Connector Housing	-
19	R78069	1	Elec. Connector Cavity Plug	-
20	57M8164	1	Elec. Connector Terminal	(WIRE GAUGE / CONNECTOR WIDTH) 0.5-1MM² /1.5MM
21	57M7920	1	Electrical Connector Assy	-
22	57M7546	1	Elec. Connector Terminal	(WIRE GAUGE / CONNECTOR WIDTH) 0.75-1MM² /1.5MM
23	57M7634	1	Electrical Connector Assy	-
24	57M7681	1	Elec. Connector Terminal	-
25	57M7682	1	Elec.Connect Locking Device	-
26	57M7633	1	Electrical Connector Assy	-
27	R78066	1	Elec. Connector Terminal	(WIRE GAUGE / CONNECTOR WIDTH) 0.8-1MM² /1.5MM
