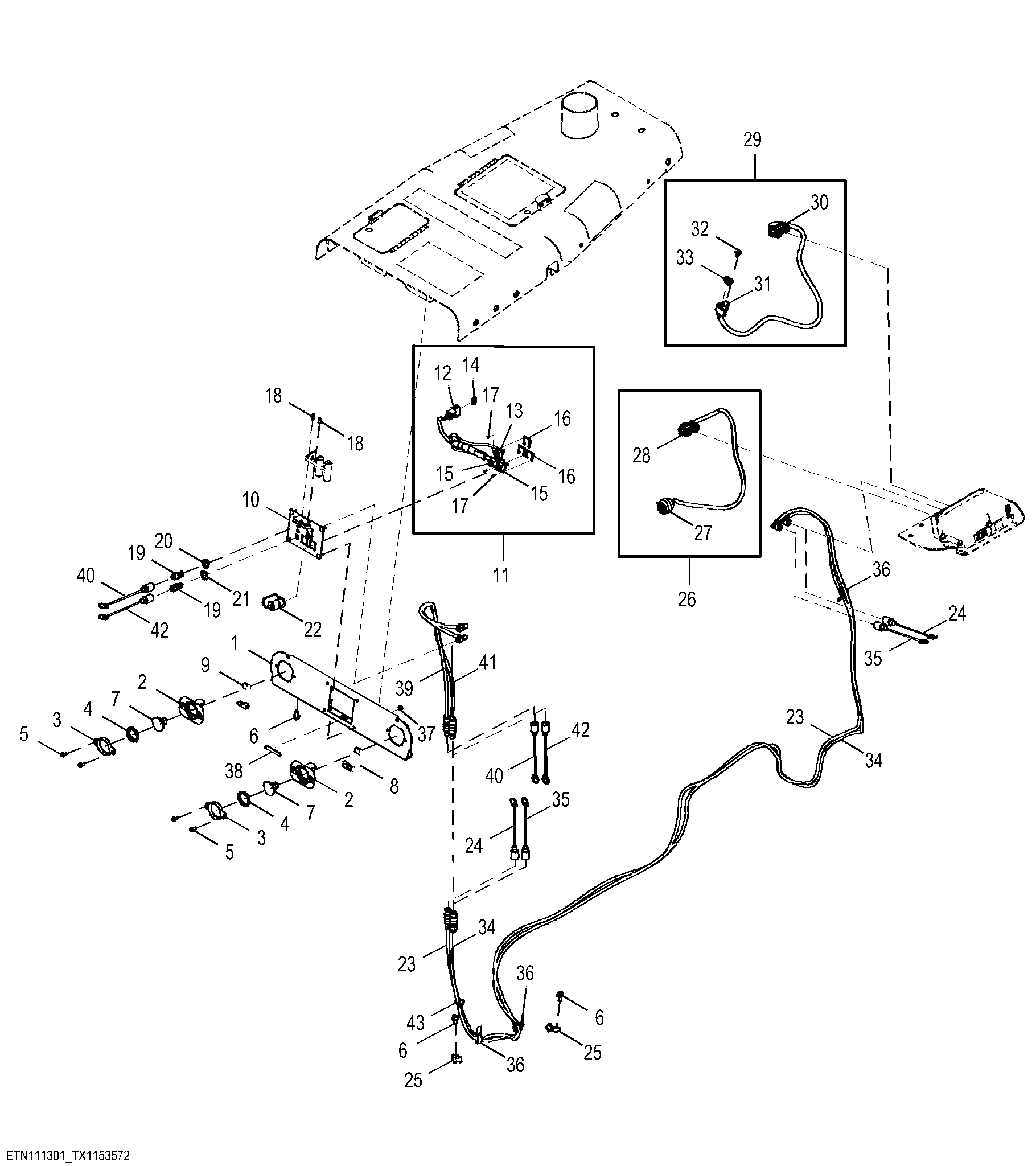

TopCon Light Bar and Coax Cables (254084 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT381415	1	Bracket	-
2	T202551	2	Housing	-
3	T177833	2	Ring	-
4	T208406	2	Grommet	-
5	19M7775	4	Screw	M6 X 16
6	19M7784	5	Screw	M10 X 20
7	AT221450	2	Bulb	-
8	AT222676	1	Wiring Harness	Light
9	AT222676	1	Wiring Harness	Light
10	AT433822	1	Plate	-
11	AT426002	1	Wiring Harness	Integrated Grade Control (IGC)
12	57M7633	1	Electrical Connector Assy	-
13	57M11539	1	Elec. Connector Housing	-
14	57M7682	1	Elec.Connect Locking Device	-
15	57M11538	2	Elec. Connector Housing	-
16	T331463	3	Elec. Connector Accessory	-
17	19H4047	12	Screw	0.112" X 3/8"
18	34H339	2	Spring Pin	5/16" X 3/4"
19	57M11757	2	Elec. Connector Housing	-
20	T326120	1	Graphics Panel	-
21	T326121	1	Graphics Panel	-
22	W42413	3	Cap	-
23	AT435588	1	Wiring Harness	-
24	W42990	2	Cap	-
25	N380408	2	Clamp	-
26	AT416149	1	Wiring Harness	MCR3 Controller
27	57M7543	1	Elec. Connector Housing	-
28	57M11531	1	Elec. Connector Housing	-
29	AT427640	1	Wiring Harness	MCR3 Controller
30	57M11532	1	Elec. Connector Housing	-
31	57M8012	1	Electrical Connector Assy	-
32	57M8013	1	Elec.Connect Locking Device	-
33	57M8009	1	Elec.Connect Locking Device	-
34	AT435589	1	Wiring Harness	-
35	W42990	2	Cap	-
36	H224073	3	Tie Band	-
37	14M7397	4	Lock Nut	M6
38	T325733	1	Graphics Panel	-
39	AT439429	1	Wiring Harness	-
40	W42990	2	Cap	-
41	AT439428	1	Wiring Harness	-
42	W42990	2	Cap	-
43	R44302	1	Tie Band	-

TopCon Light Bar and Coax Cables (254084 - )

Нет текстового описания
